Greer BB-508, BB-509 2000 Installation Manual

You ever had a crane operator two-block because the installation manual skipped the part about motion cut voltage going to zero? I have. That’s a wrecked boom tip, a lost day, and a lot of paperwork. The Greer BB-508, BB-509 2000 Installation Manual is fourteen pages of factory-correct wiring, reel placement, and cable routing. It’s the difference between a system that actually cuts the hoist and a system that just lights up a pretty red light after the damage is done. I’ve seen aftermarket copies that mislabel the orange wire or leave out the 10-amp fuse limit. This print comes straight from Greer Company, Santa Ana, CA – Rev A dated 06/21/00.

System Voltage: Why 12V vs. 24V Matters (BB-508 vs. BB-509)

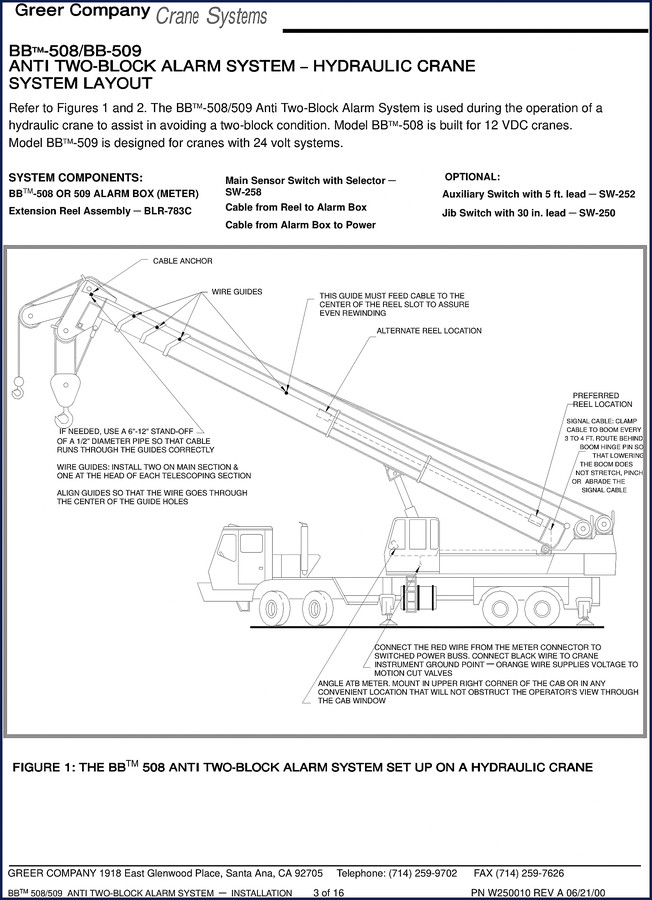

The manual spells it out on page 1: BB-508 runs on 12 VDC, BB-509 on 24 VDC. That’s not just a label swap – the motion cut hydraulic valves, the alarm box internals, the orange wire voltage supply – all of it depends on picking the right model. Wire the 509 to 12 volts and the motion cut might not drop to zero under alarm. Wire the 508 to 24 and you fry the board. The manual includes the full system layout diagram (Figure 2, page 2) showing the red wire to switched power buss, the black to instrument ground, and the orange supplying voltage to motion cut valves. If you’re retrofitting a crane that already has a 24V system, you need the 509. Period.

Reel and Cable Guide Installation – Not Optional

Page 1 shows the preferred reel location on the boom and an alternate. The manual is specific: install two wire guides on the main section and one at the head of each telescoping section. Align the guides so the cable runs through the center of the guide holes. If you skip that alignment, the cable doesn’t spool evenly on the reel – you get birdnesting and eventually a false alarm or no alarm. The manual also tells you to clamp the signal cable to the boom every 3 to 4 feet and route it behind the boom hinge pin so lowering the boom doesn’t pinch or abrade it. I’ve fixed jobs where the cable was routed in front of the pin – it lasted two cycles before the insulation rubbed through and the alarm went dumb.

Wiring the Alarm Box and Motion Cut Valves

The wiring section on page 2 gives you the full terminal block in the power panel, AMP plugs for the jib and main two-block switches, and the motion cut hydraulic valves. The note says: “Motion cut voltage goes to zero volts on two-block alarm.” That’s the whole point. If your multimeter shows voltage still present after the alarm trips, you wired the orange wire wrong or the fuse is blown. The manual calls for a 10-amp max fuse on the power feed. Use a bigger one and you lose the protection. Use a smaller one and it pops under normal operation. This is one of those installations where the torques don’t matter as much as the wire gauge and polarity, but the manual is exact about where each wire lands.

Source Validity: Factory Print vs. Aftermarket Copies

I don’t trust aftermarket documentation for safety-critical crane systems. I’ve seen reprints that flip the red and orange wires in the diagram, or blur the part numbers for the SW-258 main sensor switch and the BLR-783C extension reel assembly. This manual is a direct scan of the Greer Company original – 14 pages, every note and caution legible, including the optional auxiliary switch (SW-252) and jib switch (SW-250) leads. The copyright and revision date (Rev A, 06/21/00) are intact. If you’re buying a manual for a Greer system, get the one that came from the factory, not a third-party transcription. Your life – and the crane’s life – depends on accurate wire colors and switch part numbers.

3 Systems Covered in This Manual

First, the anti two-block alarm box with its meter and test/rigging settings. Second, the motion cut hydraulic valve control. Third, the reel and cable guide mechanical setup. That’s it – no engine, no drivetrain. But for a crane operator, those three systems are the difference between a safe lift and a two-block incident. The manual also includes the optional jib switch wiring and the chain-and-weight method for the main and jib two-block switches. If you need broader crane system training, check out the Greer MG500 RCI 510 434 MG586 2002 Training Manual or the Greer Element Operation Manual. For general crane awareness, the Greer Insight Operating Manual covers load moment indicators.
