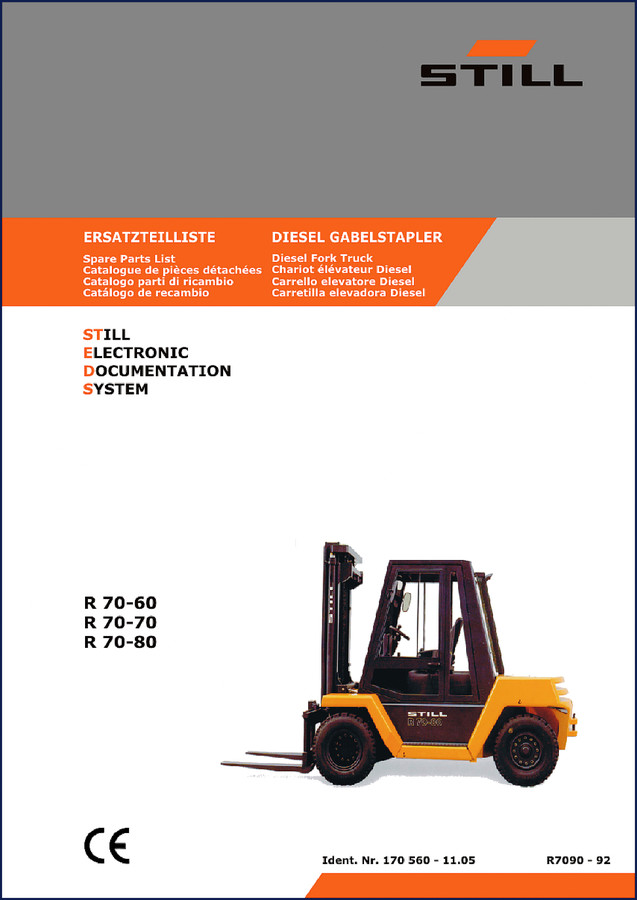

Still R 70-60, R 70-70, R 70-80 1992 Parts Catalog – OEM Spare Parts List

If you’ve ever tried to order a piston ring or a hydraulic seal for a 1992 Still forklift using an aftermarket catalog, you already know the pain. Wrong part numbers, missing explosion drawings, and zero reference to serial number validity. This Still R 70-60, R 70-70, R 70-80 1992 Parts Catalog is the only way to get it right. 1128 pages of original Still factory documentation, scanned from the German master. English, French, and Spanish pages included. No third-party guesswork. This is what the dealer parts counter uses – except you can have it on your own bench.

Page 2 lays out the full table of contents: PRODUCT INFORMATION, ELECTRIC MOTOR, IC ENGINE, IC ENGINE AUXILIARY PARTS, IC ENGINE EXHAUST SYSTEM, MECHANICAL DRIVE AXLE, CHASSIS, DRIVER, STEERING SYSTEM, WHEELS AND TYRES, BRAKING SYSTEM, CONTROLS, INSTRUMENT, ELECTRICS; ELECTRONICS, ELECTRONIC CONTROLS, HYDRAULIC, WORKING HYDRAULICS, VALVE, LOAD LIFTING SYSTEM, MAST, LOAD CARRIER, ATTACHMENT, SPECIAL EQUIPMENT NARROW AISLE TRUCKS, OTHER ACCESSORIES. That covers every system on the R70-60, R70-70, and R70-80.

IC Engine Breakdown – Diesel Engine (BF 04M 2012 C) and (TCD 2012 L04 2V)

The engine section is split into two distinct diesel variants. The BF 04M 2012 C and TCD 2012 L04 2V each get their own complete parts breakdown with pulse generator, mounting hardware, and changeover kit for air conditioning. Every part number in this catalog is tied to a specific truck validity range – you can see exactly which serial numbers used which piston, gasket, or injection pump. That is the difference between a working repair and a stack of wrong parts. For general engine theory, check Internal Combustion Engine.

That covers the engine.

7 Major Systems Covered in This Catalog

This isn’t a service manual – it’s a parts catalog. But if you need to rebuild a drive axle, replace a steering cylinder, or source a complete driver cabin door, the part numbers are here. The MECHANICAL DRIVE AXLE section alone breaks down the drive wheel unit and gear drive with left/right brake yoke options (hydraulic and mechanical). The CHASSIS section includes the complete frame with floorplate variations, counterweights for 6.0, 7.0-8.0 t, and the Rockinger tow coupling. The DRIVER section lists every door, window, mirror, and windscreen washer variant. You get the original Still drawing with the part number and quantity. No guessing which door fits your R70-70.

Can This Help You Rebuild Your Forklift?

If you own a Still R 70-60, R 70-70, or R 70-80 built in the early 1990s, this catalog directly applies. The data on page 4 shows the PRODUCT INFORMATION section with vehicle documents for R7090-92 trucks. That tells you exactly which version of each component your truck uses. I have seen shops try to order a radiator from a generic cross-reference and end up with one that doesn’t bolt in. This catalog eliminates that. It is the only source for factory-correct part numbers for these models. For a newer model, see the Still RC 40-16 2013 Parts Catalog – OEM Spare Parts List.

OEM vs Aftermarket Parts Catalogs

Aftermarket parts catalogs are compiled from multiple sources, often outdated, and rarely include the factory validity column. This Still catalog is an original factory print, scanned from the official Still release. The PDF is from the Still Electronic Documentation System (SEDS), with ident number 170 560 – 11.05. It includes the complete parts list for R7090-92 trucks. When you search for a part in this book, you see the figure number, part number, quantity, description, remark, and validity. That remark column tells you if the part was superseded or only fits certain build weeks. You do not get that from a Chilton or Haynes. Period. If you need the R70-16T series, look at the Still R70-16T, R70-18T, R70-20T 2016 Parts Catalog – OEM.

Get the Right Part Number the First Time

Open the catalog, find the system you need (e.g., IC ENGINE EXHAUST SYSTEM), then locate the specific variant: series, top, top with Huss, top with ETB, top with oxidation catalytic converter, or Eberspächer particulate filter. Each variant has its own figure. Cross-reference the figure number with the part number list. Write down the part number. Order it. No return shipping, no wasted time. That is how a professional shop runs. This catalog also covers the regeneration system and electrical installation for the particulate filter. For further reading on automotive industry standards, visit Automotive Industry Overview.

Frequently Asked Questions

Does this catalog include torque specifications?

No, it is a parts catalog, not a service manual.

Can I use this to identify parts for my R70-80?

Yes, but you must match the truck’s serial number against the validity column in the catalog. The R70-80 is covered, but some components changed during production. For example, the FUEL SYSTEM is split into ‘up to week 36, 2009’ and ‘from week 37, 2009’ – if your truck is earlier, you need the earlier part. The catalog gives you that exact split. Without the validity check, you risk ordering the wrong part. Also check the DRIVER section for cabin variant differences; the R70-80 may have a different counterweight (7.0-8.0 t) than the R70-60. The page numbers for each section help you navigate – just use the table of contents on page 2 to find your system, then drill down by validity.

This catalog belongs next to your laptop in the shop. When a customer brings in a 1992 Still R70-60 with a cracked radiator, you open this PDF, find the radiator in the COOLING SYSTEM section, write down the Still part number, and order it. No confusion. No returns. Access the Factory Manual now and stop relying on sketchy aftermarket lists. For another related manual, check the Still R60-35, R60-40, R60-45, R60-50 2016 Parts Catalog – 2889 Pages.
