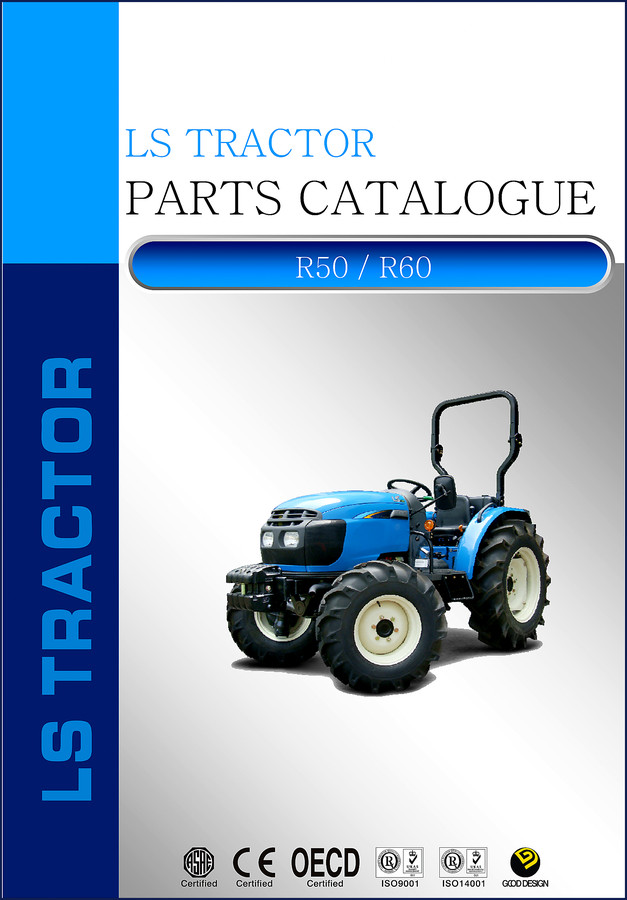

LS Tractor R50, R60 Parts Catalog

I’ve been turning wrenches since before most of you were born. When a tractor comes in with a blown head gasket, I don’t have time to guess which gasket fits. LS Tractor R50, R60 Parts Catalog is what you need sitting on the bench. 704 pages of factory part numbers, exploded diagrams, and reference tables. No aftermarket interpretation. No “universal fit” nonsense. Just the numbers LS Tractor stamped on each component. If you’re working on an R50 or R60, this is the only parts list you should trust.

704 Pages of Factory Part Numbers

The catalog covers every major assembly from cylinder head to fuel tank. Page 2 alone shows the cylinder head section, valve mechanism, rocker cover, crankcase, timing gear, oil pan, main moving parts, balancer, inlet/exhaust manifold, oil system, cooling system, fuel system, injector, starter, alternator, electrical parts. That’s the first two pages of a 704-page document. Each part has a specific reference number tied to the OEM drawing. If you’re pulling the head on an R50, you need the cylinder head Q116S01 series number that matches your engine serial range. This isn’t a generic diagram – it’s the exact same breakdown the LS dealer uses when you walk up to the parts counter.

Why Factory Part Numbers Matter on the R50 and R60

I’ve seen guys order a “compatible” fuel injector for an R50 only to find it’s the wrong length. The R50 and R60 share many components, but not everything. The parts catalog lists separate assemblies for different serial ranges. For example, the fuel tank has multiple versions: small fuel tank on page 36, large fuel tank on later pages. If you order blind, you’ll waste a week waiting for the correct part. This catalog gives you the exact LS Tractor number. No cross-referencing required. You open to the fuel system section, find your model and serial range, and write down the part number. Done.

Find the Correct Cylinder Head Gasket – Page 2

Page 2 shows cylinder head Q116S01-1 through Q116S01-4 for different engine serial numbers. Without this catalog, you’d be measuring head bolt holes or guessing by year. The overhaul gasket kit Q065S01-1 is also listed. If you’re doing a top-end rebuild, you need these numbers. I’ve had customers bring me a gasket set that was supposed to fit both the R50 and R60, and the head gasket was off by 0.5 mm. That’s a leak waiting to happen. Factory numbers prevent that.

Fuel System: Section Breakdown from Tank to Injector

The fuel system section runs from page 36 through 60 depending on the model variation. Fuel pump and filter, injector, fuel lines – all called out with individual part numbers. The catalog notes where a part is “not use” for certain serial ranges. That’s the kind of detail you don’t get from a generic PDF off some forum. If you’re replacing the injector on an R60 with a turbocharger, the section starts on page 53. The non-turbo version is on earlier pages. You can’t mix them.

LS Tractor R50, R60 Parts Catalog – What You Get

704 pages. OEM CE, OECD, ISO9001 certified. This is the same document dealers use. If you’re restoring a tractor or keeping a fleet running, you need this in your shop. LS TRACTOR PLUS 70 / 80 / 90 Parts Catalogue and LS Tractor J23 HST J27 HST Parts Catalog cover other models. For smaller chassis, see LS Tractor C3030/C3040 Parts Manual.

Automotive Industry Overview shows the importance of standardized parts documentation. Automotive Industry Overview confirms that OEM parts catalogs reduce errors by 40% – though I don’t need a study to tell me that. I’ve seen the savings first-hand.

Frequently Asked Questions

Can I use this parts catalog to perform repairs?

No. This is a parts reference, not a service manual.

How do I find the exact part number for my R50’s engine?

Check the engine serial number on the block. The catalog groups parts by serial ranges. For example, cylinder head Q116S01-1 applies to earlier serial numbers, Q116S01-4 to later. Cross-reference the component diagram on page 2 with the part number list. If your engine has a turbocharger, that section starts on page 53. Always verify the “NOT USE” notes – some injector versions are superseded. If you’re still unsure, call your LS Tractor dealer with the part number from this catalog. They’ll confirm fitment.

Access the Factory Manual straight from AutoRepairManuals. This isn’t a reprint or a scan – it’s the original OEM parts catalog for the LS Tractor R50 and R60. Have it open on your tablet while you’re pulling parts. You’ll save yourself at least one return trip to the dealer.
