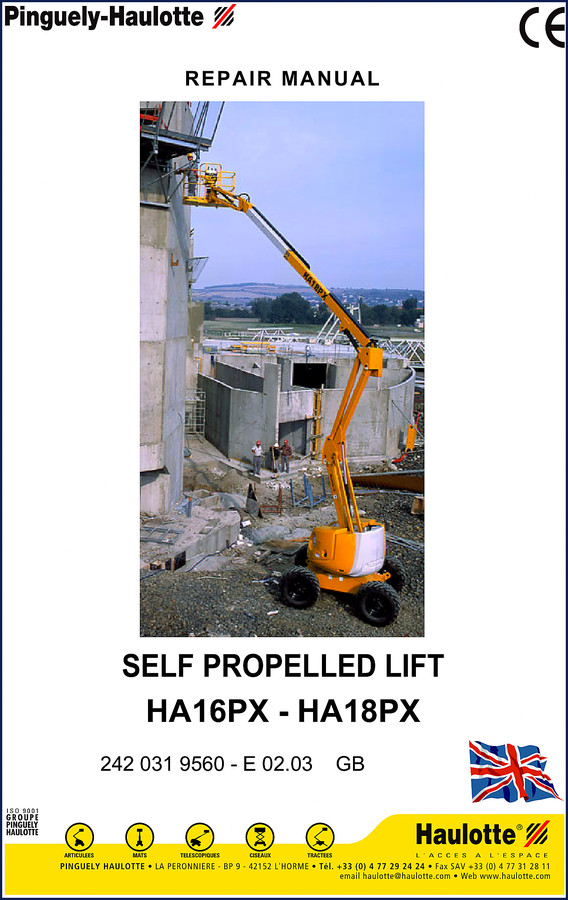

Pinguely-haulotte HA16PX, HA18PX Repair Manual

If you are turning wrenches on a Pinguely-haulotte HA16PX or HA18PX self-propelled lift without factory specs, you are burning time and risking a call to the insurance adjuster. I have torqued enough head bolts to know that guessing on a boom lift gets someone hurt. This is a 278-page repair manual, direct from the OEM – no third-party redraws, no corrupted PDFs, no missing pages. You get the same document the dealer techs use. Page 2 has a Caution section that spells out exactly what this manual expects from you: respect safety instructions, stay within performance limits, use original parts. That is the starting line.

Need the tightening torque for the wheel nuts or hydraulic hose fittings? The manual dedicates a full specification section to it – large thread, fine thread, wheel torque values, and hydraulic hose torque. It also lists pressure tables in bar and adjustment times. Do not show up to a job without that data. The electrical diagrams (diagram E 567, folio 01/05) and the positions of every relay, fuse, and diagnosis LED are there. You can trace a no-start or a stuck turntable without swapping parts. I have seen guys replace three solenoid valves chasing a proportional valve problem because they did not have this manual. Stop doing that.

Pinguely-haulotte HA16PX, HA18PX Repair Manual: Content Overview

Nine major sections from general safety recommendations to corrective maintenance procedures. Chapter 1 covers residual risks – jerky movements, tipping, electrical shock, explosion, collision. That is not boilerplate; it is specific to these machines. Chapter 2 gives you the technical characteristics for both the HA16PX and the HA18PX, including dimensions and weight. If you are replacing a cylinder or a hose, you need the geometry numbers. Page 5 starts the safety chapter – read it before you put a wrench on anything.

Tightening Torque: Tables You Can Trust

Subsection 2.3 lists tightening torque for large thread, fine thread, wheel nuts, and hydraulic hoses. These are factory numbers, not aftermarket estimates. There is also a pressure table in bar and a table of adjustment times. Hydraulic fittings that are under-torqued leak oil; over-torqued crack. Use the spec. Period.

Electrical and Hydraulic Diagrams – Real Diagnostic Tools

Chapter 4 gives you wiring diagrams – sheet E 567, folio 01/05 – plus the exact positions of connectors, relays, fuses, and diagnosis LEDs on the motherboard. Chapter 5 covers hydraulic diagrams and the function of on/off and proportional electrovalves. If the proportional valve is acting up, you need to understand the electrical relationship. The operating equations in Chapter 3 show you how safety contacts and relays interact. Without that, you are swapping parts.

Maintenance Plan and Preventive Maintenance Sheets

Chapter 6 lays out the maintenance system, electric power supply requirements, the maintenance plan, and a summary table of operations. There are preventive maintenance sheets in Chapter 7. Run these on schedule – the machine will last longer and you will catch hydraulic contamination early. Also included are label positions for different markets (Holland, Australia, options). If you are importing a used lift, that helps you verify it is complete.

Incident Tables and Flow Charts – Stop Guessing

Chapter 8 has an incident table broken down by system: general operation, lifting, travel, steering, turntable rotation. Then a breakdown detection flow chart. When the lift refuses to travel, you go to that table, follow the flow chart, and isolate the fault. No need to call the dealer for every glitch. Corrective maintenance procedures in Chapter 9 give you the steps for replacing components.

Who Should Use This 278-Page Repair Manual?

Home garage guys working on a rental fleet machine. Shop owners who need one reference for both HA16PX and HA18PX models. Experienced mechanics who respect safety and want factory OEM data. If you are a beginner, the safety chapter will walk you through the residual risks, but you still need to understand hydraulics and electrical basics. This manual assumes you can handle tools, not that you need hand-holding.

Why Factory OEM Documentation Matters

Aftermarket manuals often skip the operating equations, the label placement, or the exact torque tables. This one is the original Pinguely-haulotte repair manual. It was written for the technicians who built these lifts. The electrical diagrams are drawn to the machine, not a generic schematic. The hydraulic diagrams show the specific electrovalve functions. If you use a third-party version, you might get the HA16PX specs mixed with an older HA model. That is how parts get ordered wrong and machines sit dead.

Related manuals you might need: Pinguely-Haulotte STAR 8 – HM10P Repair Manual, Pinguely-Haulotte Optimum Repair Manual, Pinguely-Haulotte Self Propelled Lift HA20 PX – HA26PX Repair Manual.

External resources: Manual Transmission, Manual Transmission.

Frequently Asked Questions

Does this manual cover both HA16PX and HA18PX models?

Yes, single document covers both. Technical characteristics, dimensions, and torque tables are listed separately for each.

Are torque values given in imperial units?

The manual lists torque in Newton-meters and pressure in bar. There is no imperial conversion table in the manual itself. If you work in ft-lbs, you will need to convert using a standard conversion factor. That said, the values are OEM certified – I would trust these numbers over any aftermarket spec sheet. Hydraulic hose torque values are also in Nm. Keep a conversion chart in your toolbox. The important thing is to apply the same spec across all fasteners on that circuit.

Can I use this manual for preventive maintenance?

Absolutely. Chapter 6 includes a maintenance plan and summary table of operations. Chapter 7 provides preventive maintenance sheets you can photocopy or fill out digitally.

Does the manual include wiring diagrams?

Yes, full wiring diagram (E 567, folio 01/05) plus component locations on the motherboard.

Access the Factory Manual and stop working without the right numbers.
