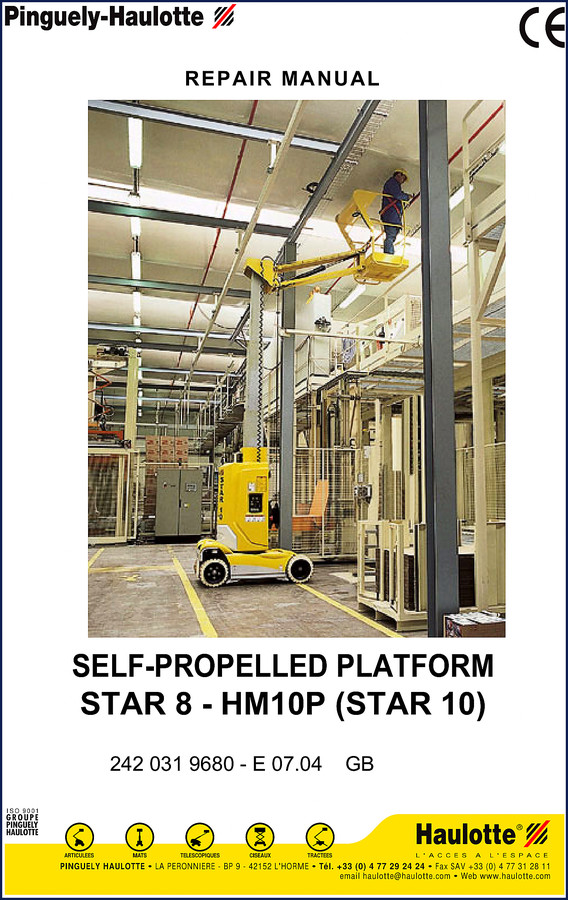

Pinguely-Haulotte STAR 8, HM10P, STAR 10 2004 Repair Manual – OEM Factory Specs

If you are working on a Pinguely-Haulotte self-propelled platform — STAR 8 or STAR 10 — you need the factory torque values, not a third-party guess. This repair manual, published in 2004, gives you 224 pages of the exact specs the assembly line uses. No reprints, no condensed versions. It covers the STAR 8, the HM10P (which is the STAR 10 platform), and the standard STAR 10. I’ve seen too many guys strip a bolt on a hydraulic block because they used a generic torque chart. That stops here.

Pinguely-Haulotte STAR 8, HM10P, STAR 10 2004 Repair Manual is organized around real repair priorities. The table of contents starts with general safety – section 1.3 on residual risks alone is worth the access. Then it hits PRESENTATION, which includes the actual tightening torque for large thread screws, fine thread screws, and hydraulic hoses. Those numbers are on page 11 and 12. After that come the wiring diagrams – electric casings, turntable box P20593a, platform box P20027d, and the full E555c series. You need those for any Electrical diagnosis on the platform controls or the chassis.

Tightening Torque and Pressure Tables (Page 11–12)

Torque values for fasteners and hydraulic hoses are not optional. This manual gives you three separate tables: large thread screws, fine thread screws, and hydraulic hose fittings. The pressure table in bars is also there – you can convert to psi if needed, but I prefer bars for these machines. If you don’t have a calibrated torque wrench, stop right there. You need one. The spec for hydraulic hoses is in section 2.2.3. Miss that by 10% and you get a drip or a burst line.

Wiring Diagrams: Turntable, Platform, and Bundle C16209

The electrical system on these lifts can get messy fast. The manual includes diagrams for the turntable box (P20593a), platform box (P20027d), the main bundle C16209, and three variations of E555c. If you’re chasing a no-start or a safety input fault, you trace it here. Section 4 on safety systems lists every relay, power supply, and control input. The weighing device section (chapter 5) even gives you LED error codes on page 27 – D19 green for sensor errors, D21 yellow for card errors. That saves you an hour of poking around with a multimeter.

Safety Systems and Residual Risks – Don’t Skip Section 1.3

Section 1.3 lists residual risks: jerky movements and tipping over, electrical risk, explosion or burning, and collision. Every tech who works on aerial lifts should read this before touching a wrench. The manual also covers periodic inspections (section 1.4), repairs and adjustments (1.5), and verifications when returning to service (1.6). I’ve seen an operator almost get thrown off a platform because the tilt alarm was bypassed. The factory procedure for checking those inputs is here.

Hydraulic Functioning: Mast Lifting, Steering, and Jib

Torque matters. Period. The hydraulic block S5682 has its own section with technical characteristics, fittings, and a diagram with component list. The hydraulic functioning chapter (10) walks through mast raising and lowering, jib lifting and lowering, turntable rotation, and steering. Each operation ties back to the hydraulic diagram B17085. If you’re replacing a valve or a cylinder, you need the adjustment times from the table on page 12. No manual, no job.

What Makes This OEM Manual Different from Aftermarket Copies?

I have seen aftermarket manuals that claim to cover these models but skip half the wiring diagrams or round the torque values to the nearest 10 Nm. This is a factory original print from Pinguely-Haulotte. The 224 pages are all there – from the general recommendations to the maintenance chapter 13. You get the OEM part numbers, the actual schematic labels (like P20593a), and the pressure table in bars. If you want to work on the HM10P or STAR 10 the way the manufacturer wants it done, this is it.

For other Pinguely-Haulotte models, check the Pinguely-Haulotte Optimum Repair Manual and Pinguely-Haulotte Self Propelled Lift HA20 PX – HA26PX Repair Manual. There’s also the Pinguely-Haulotte H14TX H16TPX Repair Manual if you work in the telehandler range. On the component side, common issues like the Manual Transmission section and Starter Motors can be cross-referenced from this manual’s electrical diagrams.

Does this repair manual cover the HM10P model?

Yes, it covers STAR 8, HM10P, and STAR 10. The HM10P is the same as STAR 10 in this context.

How do I use the weighing device section to troubleshoot sensor errors?

Go to chapter 5, page 27. The manual lists two LEDs: D19 green for sensor errors (pressure sensor or angle sensor), and D21 yellow for card-related errors. Each error has a specific flash pattern described in section 5.7. You can test the sensors by checking voltage at the connector per the cabling diagram on page 25. If the card itself is faulty, the alarm system management on page 28 shows the replacement procedure. Do not skip the training section (5.6) – it explains how the outputs function before you start swapping parts.

Do not trust a torque value you pulled off a forum. The data in this 2004 repair manual is verified by the factory. Stop guessing on fasteners and hydraulic fittings. Access the Factory Manual and get back to work.
