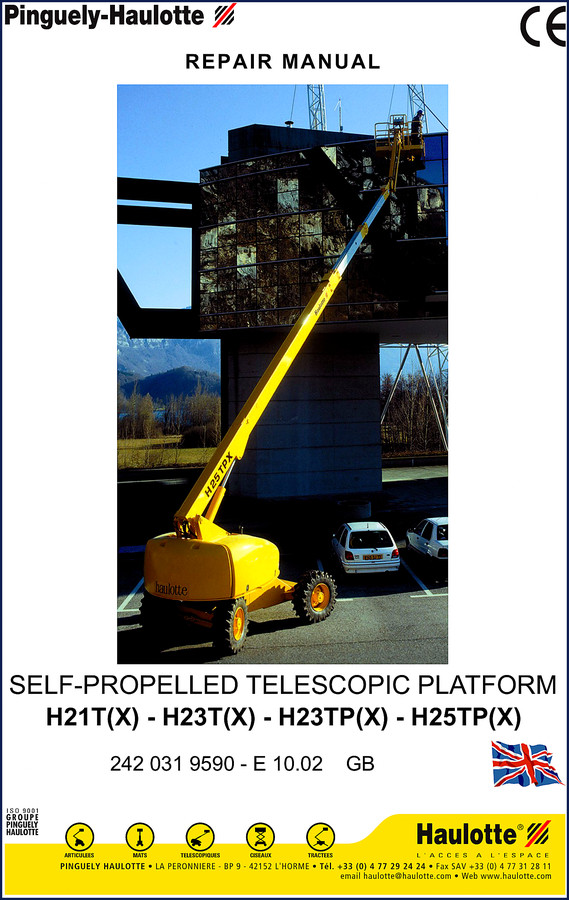

Pinguely-haulotte H21T, H23T, H23TP, H25TP Repair Manual

If you are wrenching on a Pinguely-Haulotte telehandler or lift platform without the factory paperwork, you are gambling with someone’s safety and your own time. I have seen guys try to guess the hydraulic hose torque on a H23TP and end up with a leak that costs a shift. That is why I keep the OEM book within arm’s reach. This Pinguely-haulotte H21T, H23T, H23TP, H25TP Repair Manual runs 265 pages and covers the exact specs that came out of the La Péronnière factory. No aftermarket guesswork.

General Safety Instructions: Not Optional

Section 1 starts with the stuff that keeps you alive. The manual calls out residual risks including jerky movements, tipping, electrical shock, and collision. On page 2 there is a Caution! block that reminds you to respect safety instructions and use within performance limits. If you are a home garage guy, do not skip this. The Beaufort scale is even referenced for wind speed limits – that is factory-level detail. Periodic inspection schedules are spelled out. Follow them.

Tightening Torque Values – Get Them Right

Section 2.3 gives you the numbers for large threading, narrow threading, wheels, and hydraulic hoses. These are in Nm – you will need a conversion chart if you only own ft-lb wrenches. Wheel torque is critical on any self-propelled platform. The manual also lists pressure values in bar and adjustment times. Do not guess. Use the spec.

Wiring Diagrams: E 455 and Mother Board Layout

Chapter 4 covers the full electrical system. Folio 01/05 of diagram E 455 shows the main circuit. Then you get the mother board layout with positions of screws, connectors, relays, fuses, and diagnosis help LEDs. If you are chasing a no-start or a dead control board, this is where you start. The manual gives you the function of relays and fuses in the turntable box (section 3.1). Combine that with the operating equations (section 3.4) and you can trace almost any fault without burning up a multimeter.

Hydraulic System Diagrams – Four Variations

You get separate hydraulic diagrams for each model: reference B15714 for H21T/H23T, B15713 for H21TX/H23TX, B15330 for H23TP/H25TP, and B15331 for H23TPX/H25TPX. Section 5.5 breaks down the electrovalves – both on/off and proportional types. If you are swapping a valve bank, the hydraulic diagram tells you port orientation and line routing. Do not rely on memory; the diagrams are the final word.

Maintenance Plan and Incident Tables

Chapter 6 gives you the maintenance plan with summary tables for operations. It includes specific recommendations for replacing elements and locating breakdowns. Then chapter 8 hands you an incident table covering general operation, lifting, travel, steering, and turntable rotation. There are breakdown detection flow charts. When the platform stops moving and the display gives you nothing, flip to the flow chart. It will walk you through the diagnosis sequentially.

You also get preventive maintenance sheets (chapter 7) and corrective maintenance procedures (chapter 9). The manual even lists the required labels – yellow, orange, red – and their positions on the machine. If a label is missing, you can order the correct one from the part number in the manual.

3 Reasons to Trust Factory OEM Documentation

First, the torque values and pressure settings come straight from the Pinguely-Haulotte engineering department. Second, the wiring diagram matches the exact harness routing used on the assembly line. Third, the safety warnings are legally compliant with European Machinery Directive 89/392/CEE and later revisions. Aftermarket manuals strip out safety language to save paper. This one does not.

If you need to understand how a Pinguely-Haulotte STAR 8 – HM10P Repair Manual differs from this series, or maybe you want the Pinguely-Haulotte Optimum Repair Manual for a different lift line, those are separate documents. For the H21T/H23T/H23TP/H25TP family, this is the only manual you need. There is also a related Pinguely-Haulotte Self Propelled Lift HA20 PX – HA26PX Repair Manual if you work on those models.

External resources like a Manual Transmission guide won’t help you here – this is all about telematics and hydraulics. The other Manual Transmission video might be good for your personal car, but leave it for the weekend.

FAQ

Does this manual cover the electrical schematics for all four models?

Yes. Section 4 includes diagram E 455 (folio 01/05) plus the mother board layout with fuse and relay positions. The safety system chapter (3) explains function of relays and safety contacts. The operating equations in section 3.4 tell you exactly which contact has to close for the boom to lift. If you are chasing a no-function issue, start with the diagnosis help LEDs listed in section 4.2.4. That alone can save you an hour of probing blindly.

Are the torque specs given in imperial units?

No. All torque values are metric (Nm). You will need a conversion chart or a torque wrench that reads Nm.

Stop borrowing a grainy PDF from a forum. Get the real thing. Access the Factory Manual and have the full 265 pages on your tablet or printed out. Your time is worth more than guessing.
