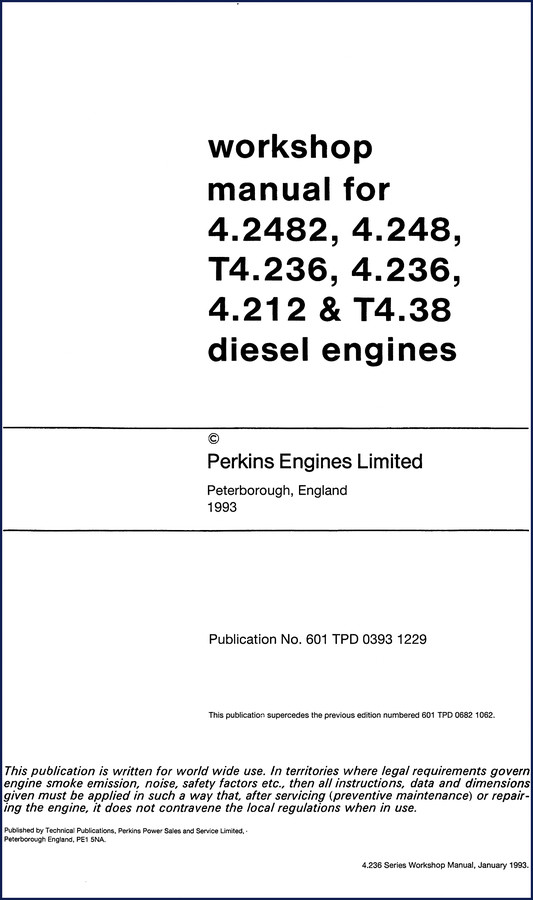

Perkins Engines 4.2482, 4.248, 4.236, 4.212, T4.38 1993 Workshop Manual

If you have ever tried to torque a cylinder head on a Perkins 4.236 using a generic aftermarket spec and ended up with a blown head gasket, you already know why this manual exists. I have seen shops lose half a day chasing a coolant leak because someone trusted a third-party PDF that listed the wrong bolt sequence. This is not that PDF. This is the original Perkins Engines 4.2482, 4.248, 4.236, 4.212, T4.38 1993 Workshop Manual, 168 pages of factory data that Perkins published in Peterborough, England. Publication No. 601 TPD 0393 1229. That number means something: it supersedes the previous edition because Perkins found errors or added updates. You get the corrected version.

Every procedure in this manual assumes you are working with Unified Series threads on the earlier engines and metric on later ones. The OCR on page 4 tells you exactly where to find the engine number on the cylinder block – right side above the alternator for later 4.236, 4.248, and 4.212 engines. That is the kind of detail that prevents you from ordering the wrong piston set or liner kit. The manual covers all five engine variants in one binding: 4.2482, 4.248, 4.236, T4.236, 4.212, and T4.38. Note that T4.236 and T4.38 denote turbocharged versions, and the turbocharger section (Section T) walks through boost pressure checks and wastegate adjustment.

Section E: Cylinder Head Maintenance – Torque Sequence Matters

You will find the full cylinder head removal and installation procedure in Section E. The manual gives you the tightening sequence and the step-up torque values in ft-lb. On a 4.236, if you skip the first stage and go straight to final torque, you warp the head. I have seen it. The manual also covers head gasket selection based on liner protrusion – a measurement that must be taken on a cold engine with a dial indicator. Never guess that spec. Page numbers are not listed for every step, but the section headings are precise: “Cylinder Head – Removal,” “Cylinder Head – Decarbonisation,” “Cylinder Head – Refitting.” Each step is a numbered instruction. No fluff, no stories.

Fuel System and Air Filters: Section N – Don’t Skip the Bleed Procedure

Section N covers the entire fuel system, including the lift pump, injection pump, injectors, and the air filter housing. After replacing a fuel filter on a 4.248, you need to bleed the system using the manual priming lever on the lift pump until fuel flows solid from the bleed screw. The manual gives the exact location of that screw and warns against cranking the starter with the fuel lines open – that pushes air into the injection pump and can damage the plungers. Air filters are listed by Perkins part numbers, not generic equivalents. If you cross-reference an aftermarket filter, you risk letting dirt past the element. The manual tells you the restriction indicator setting.

Cooling System: Section M – Why You Need the Correct Thermostat Rating

Section M covers the cooling system, including water pump removal, thermostat testing, and coolant capacity. Perkins specified a 88°C thermostat for standard ambient conditions and a 82°C for tropical operation. Using the wrong one on a T4.38 turbo engine can cause overheating under load because the thermostat opens too late. The manual also lists the torque for the water pump bolts – seven bolts in a specific sequence. Overlooking that sequence leads to a warped pump housing and a slow leak that you only notice when the temperature gauge starts climbing. The cooling system section is only a few pages, but it contains data that aftermarket manuals routinely leave out, like the bypass hose clamp torque.

Crankshaft and Main Bearings: Section H – Measuring Bearing Clearance

Section H walks through removing and installing the crankshaft, checking main bearing cap torque, and measuring bearing clearance with Plastigage. The manual specifies the acceptable clearance range in thousandths of an inch – values that must be matched to the specific engine model. On a 4.212, the rear main bearing seal is a rope type, not a lip seal. If you put a lip seal in a 4.212, it leaks within 100 hours. The manual tells you the correct seal installation technique: lubricate the rope, tap it in with a seal driver, and trim flush with a razor blade. No shortcuts.

Who Needs This Manual? The Real Audience

I have been a master technician for 28 years, and I still pull up a factory manual the first time I see a Perkins I have not worked on in a while. If you run a shop that services irrigation pumps, generators, or agricultural equipment, you likely have a Perkins under the hood. The 4.236 is common in JCB backhoes and Massey Ferguson tractors. The 4.212 shows up in smaller compressors and welders. The T4.38 is often in marine applications – the manual includes a Marine Supplement at the end. DIY guys who rebuild their own tractor engine need this manual because the torque specs are not on any forum. Forums are full of guys who “think” it’s 80 ft-lb. The manual says 90 ft-lb with thread lubricant. That difference can crack a liner flange.

Source Validity: OEM Factory Print, Not a Third-Party Compilation

This manual is a scan of the original Perkins publication from 1993. The pages are clean, the diagrams are the factory line drawings with callouts. There are no added watermarks or redistributed copies from questionable sources. The Perkins 4.41 Series Model LM Workshop Manual is a different beast – that covers the inline four-cylinder 4.41 series. If you need the 3.152 series, check out the Perkins 3.152 Series Diesel Engines Workshop Manual. For those working on Ferguson TE20 tractors with Perkins engines, the Manuel d’Atelier Tracteurs Ferguson TEF20 covers the French-market version. All are OEM prints.

Aftermarket manuals sometimes copy the torque values but change the bolt tightening angle. That is a liability. I once saw a manual that said “tighten to 120 Nm” without specifying the bolt grade. That manual was wrong. This Perkins manual specifies bolt grade and thread type in the technical data section (Section B). If you need to understand the difference between Unified and metric threads, the manual explains it on page 4. That is the level of detail you get.

FAQ – What Techs Ask Me About This Manual

Does this manual cover the turbocharger on the T4.38?

Yes, Section T is dedicated to turbocharger removal, inspection, and installation. It includes boost pressure ranges and wastegate actuator testing.

Can I use this manual for a 4.236 engine built in 1985?

A: The 1993 edition supersedes the 1982 edition. It includes updates for later builds but still applies to earlier engines. Check the engine number location on page 4 to confirm your variant.

What about the hydraulic head on the DPA injection pump?

Section N covers the CAV DPA pump – includes rotor and plunger removal, but it does not cover inline pumps used on some industrial 4.212 engines. For those, you need the separate Perkins fuel pump manual.

Is the marine supplement included in this 168-page manual?

A: Yes. The marine supplement is at the back of the book. It covers cooling system changes for seawater operation, including the use of sacrificial anodes and a different thermostat rating.

Every piece of information in this manual was written by Perkins engineers who designed the engines. The torque values, the clearance specs, the bleed procedures – they came from the factory test cells. Trusting a forum post or a generic repair site is gambling with your customer’s engine. This manual gives you the same data that Perkins dealers used in the 1990s. For more background on manual transmissions often used with these engines, read this Manual Transmission overview. And for the broader context of automotive engineering standards, check the Automotive Industry Overview. Now. Access the Factory Manual and get the job done right the first time.
