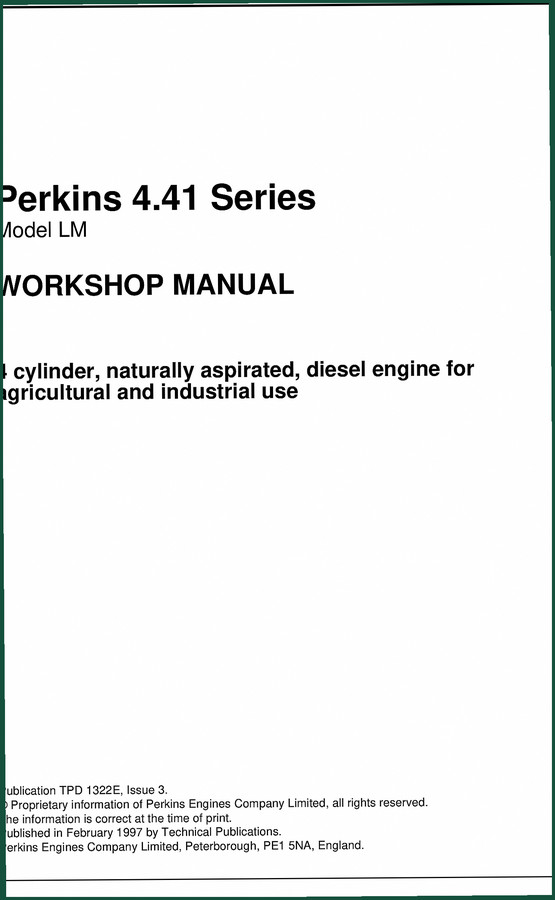

Perkins Engines 4.41 1997 Workshop Manual

If you’ve got a Perkins Engines 4.41 1997 Workshop Manual in your hands, you’re holding the only document I trust for tearing down and rebuilding that 4-cylinder diesel. After 28 years swinging wrenches, I’ve seen aftermarket garbage that leaves you chasing half-assed torque values. This is the real deal – Perkins official, printed in 1997 for the Model LM, agricultural and industrial use. 212 pages of factory procedure, no guesswork dressed up as ‘universal’. You need the cylinder head bolt sequence? It’s there. Crankshaft end float spec? Page 28. Compression test data? Page 30. You don’t get that from a photocopied manual somebody slapped together.

I’m Mike Callahan. I run a six-bay shop in San Antonio. I’ve torqued more head bolts than most people have had hot meals. This manual sits on my bench because it tells you exactly what tool to use and when. It covers the 4.41 Series – four cylinders, naturally aspirated, diesel. If you try to service this engine without factory documentation, you’re asking for a warped head or a spun bearing. Period.

Engine Overhaul Coverage – What the Manual Actually Contains

The table of contents reads like a full teardown schedule. Chapter 1: General information – safety precautions, engine views, Viton seals warning (don’t ignore that, those seals turn into glass if you overheat them). Chapter 2: Specifications – basic engine data, data and dimensions, recommended torque settings on page 28, compression test data on page 30. Chapter 3: Cylinder head assembly – that’s where you get the tightening sequence and angle torques. Chapter 4: Piston and connecting rod assemblies. Chapter 5: Crankshaft assembly. Chapter 6: Timing case and drive assembly. Chapter 7: Cylinder block assembly. Chapter 8: Engine timing. Chapter 9: Aspiration system. Chapter 10: Lubrication system. Chapter 11: Fuel system. Chapter 12: Cooling system. Chapter 13: Flywheel and housing. Chapter 14: Electrical equipment. Chapter 15: Auxiliary equipment. Chapter 16: Special tools. 16 chapters, 212 pages. That’s coverage you can hang a rebuild on.

Torque Specs and Fluid Capacities

Page 28 is the one I keep dog-eared. Recommended torque settings for every fastener on that engine – cylinder head bolts, connecting rod nuts, main bearing cap bolts, flywheel bolts. If you’re working on a Perkins 4.41, you don’t guess torque. You use a calibrated wrench and the number from this manual. I’ve seen a guy snap a main cap bolt because he used a generic spec from a forum. That’s $400 in parts and a weekend wasted. The manual also gives you compression test data on page 30 – 280-300 psi range, but check the exact value for your altitude. Don’t blow a head gasket because you misread the spec.

What a Cylinder Head Job Looks Like with This Manual

You pull the head, you need the bolt tightening sequence. Chapter 3 walks you through it step by step – clean the threads, oil the bolts, tighten in three stages to the final torque, then angle-tighten. The manual tells you which POWERPART consumables to use, page 8. It also covers the Viton seals on page 7 – if those seals are exposed to high heat, they can turn into a crystalline mess. Wear gloves. I’m not kidding. The manual doesn’t sugarcoat it.

Does This Manual Cover the Fuel System?

Yes, Chapter 11 – Fuel system. Injection pump timing, injector removal, fuel filter replacement. It’s all there. But don’t expect a step-by-step on the pump calibration – that requires specialized test equipment. What you get is the correct procedure to remove and install the injection pump, including timing marks. If you’re swapping injectors, the torque for the injector clamp is in the spec tables. Use it.

3 Reasons to Choose OEM Documentation

First, the wiring diagrams in Chapter 14 – Electrical equipment – are factory-correct. I’ve seen aftermarket manuals swap the starter and alternator wires. That’s a fire waiting to happen. Second, the crankshaft and cylinder block clearances are given in inches and millimeters, with acceptable tolerances. Third, the manual lists special tools in Chapter 16. You can’t fake that precision with a generic guide. If you’re serious about keeping this engine running for another 10,000 hours, you buy the factory manual.

Who Is This For?

Home garage guys who own a tractor or generator with a Perkins 4.41. Also small-shop mechanics who are tired of wasting billable hours on bad data. This manual is not for someone who wants to ‘wing it’. It’s for the guy who reads the torque spec twice, then applies it once. If you’ve got a Perkins 4.41, you need this on your bench, not a third-party reprint that left out the cylinder head bolt torque.

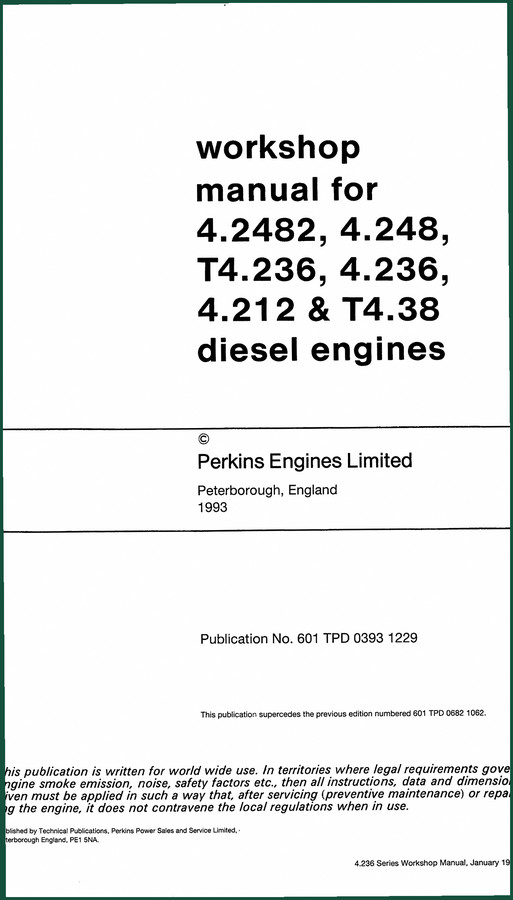

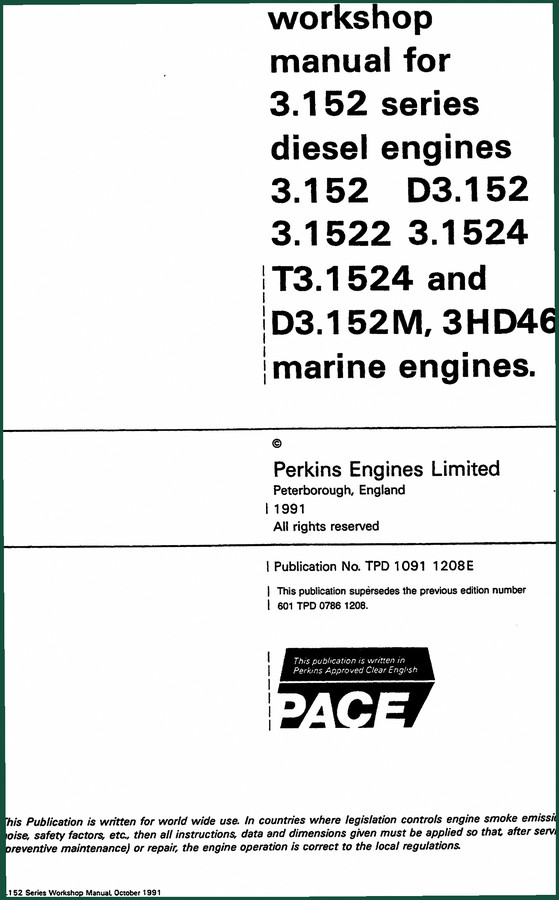

Related manuals you might need: Perkins 4.2482/4.248/4.236 Diesel Engines Manual”>Perkins 4.2482/4.248/4.236 Diesel Engines Manual covers larger displacement engines. For the smaller 3-cylinder Perkins, check the Perkins 3.152 Series Diesel Engines Workshop Manual”>Perkins 3.152 Series Diesel Engines Workshop Manual. If you’re working on Ferguson tractors, the Manuel d’Atelier Tracteurs Ferguson TEF20″>Manuel d’Atelier Tracteurs Ferguson TEF20 pairs well with the Perkins engine documentation.

For a broader look at drivetrain fundamentals, see the Manual Transmission”>Manual Transmission overview. And if you want context on the diesel industry, the Automotive Industry Overview”>Automotive Industry Overview gives background on Perkins’ role.

Is this manual only for the 4.41 model?

Yes. It covers the 4.41 Series Model LM specifically. Other Perkins models (4.236, 4.248) have different manuals. Do not use this for a 4.236 engine. Torque specs vary.

Are torque values given in ft-lb or Nm?

Both. The spec table on page 28 lists values in both units. I prefer ft-lb, but the manual gives you the Nm equivalent. Use whichever your torque wrench reads.

Does the manual include wiring diagrams for the alternator and starter?

Chapter 14 covers electrical equipment, but the diagrams are basic – starter circuit, alternator connections, shut-off solenoid. If you need a full harness schematic, that’s in the service bulletin supplement. This manual gives you enough to diagnose and replace major components.

What about the cooling system?

Chapter 12 – Cooling system – covers thermostat removal, water pump replacement, and coolant capacity. Page numbers are in the table of contents. The manual doesn’t cover radiator core repair, but does give the torque for the water pump bolts.

You’ve got a Perkins 4.41 engine that needs a rebuild or major service. Don’t chase after internet forum specs that were typed from memory. Access the Factory Manual – the exact 1997 workshop manual from Perkins Engines Company Limited. 212 pages, OEM torque values, safety precautions, and every procedure verified at the factory. That’s what keeps your engine together and your knuckles intact.
