Perkins 500 Series 1995 User Manual: Factory Specs for Your Diesel Engine

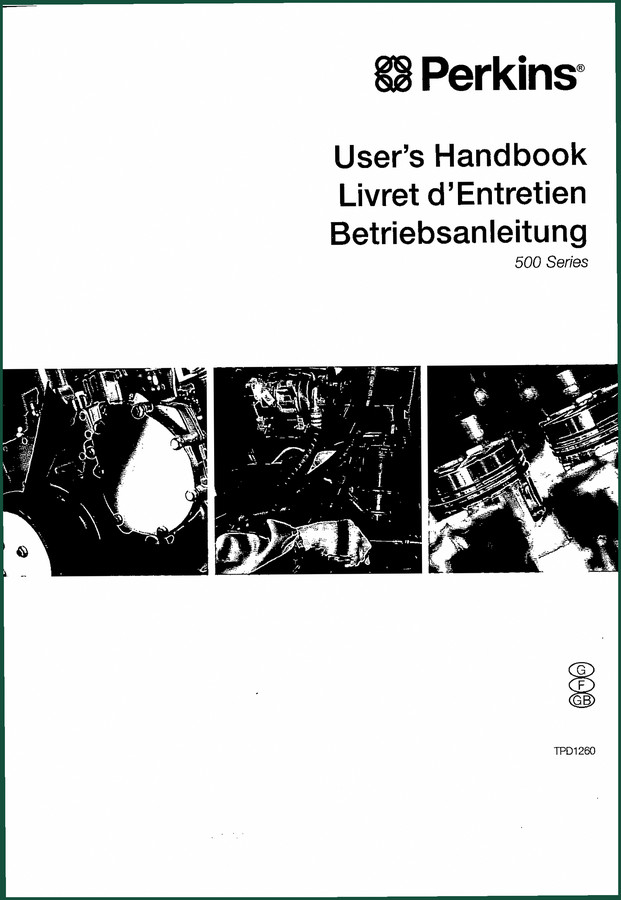

I’ve seen three guys this month alone scrap a 500 Series because they trusted a third-party spec sheet instead of pulling the OEM document. You want to keep a four-cylinder industrial diesel healthy for decades? Start with the manual Perkins issued in 1995. This is the Perkins 500 Series 1995 User Manual — 58 pages of factory procedures, not guesswork. The aftermarket reprints I’ve checked cut corners on torque values and skip the safety warnings. That’s how head gaskets blow and fuel lines split. This PDF is the real thing, scanned from the original TPD 0295 1260 EFG publication.

Safety Precautions: Why Page 1.04 Matters

Page 1.04 lists the Safety precautions / Précautions de sécurité / Unfallverhütungsvorschriften for a reason. Perkins wrote those warnings to keep the engine from starting while you’re under it. You ignore them? That’s your call. But I’ve got a buddy who skipped the part about hot coolant pressure release and spent three days in a burn unit. The manual tells you exactly how to isolate the fuel shutoff and wait for engine cooldown before touching any line. Read that chapter before you crank the starter.

Engine Data on Page 9: Torque Values and Fluid Specs

The final section, Engine data / Données du moteur / Motorendaten, is where you find the numbers that keep the block together. No aftermarket overlay. Page 9 gives the factory charge pressure, oil capacity in imperial quarts, and the recommended fuel grade. I’ve used these specs to set injector timing on a 4-cylinder industrial unit and it fired first crank. If you need the exact compression ratio, it’s in that table. Don’t guess — pull the page.

Does This Manual Cover Preventive Maintenance?

Yes. Chapter 4, Preventive maintenance / Entretien préventif / Vorbeugende Wartung, lays out the schedule for filter changes, valve clearance checks, and belt tension. Each interval is given in operating hours, not miles. For a generator set running 24/7, you’ll follow the 250‑hour mark for oil change. The manual also tells you which SAE viscosity to run above 90°F in Texas. That’s the kind of detail a cheap PDF skips.

Fault Diagnosis: Factory Procedure vs. YouTube Tricks

Section 6, Fault diagnosis / Recherche de défaut / Fehlersuche und Behebung, is a flowchart-based guide. It walks you through no‑start, low power, and overheating without letting you jump to a parts cannon solution. I’ve seen a DIYer replace a fuel pump, injectors, and a lift pump because a video told him to. One look at the Perkins fault chart — page 6.01 — would have shown him a clogged fuel return line was the issue. This manual saves you from that kind of waste.

Engine Preservation: More Than Storage Advice

If you park a 500 Series for six months, the Engine preservation / Protection du moteur / Motorkonservierung chapter (page 7) explains how to fog the cylinders and seal the intake. I’ve used that procedure on a backup irrigation pump and it cranked after two winters with zero rust. The manual also gives the correct preservative oil volume. That’s not in a Chilton book.

For deeper repair work — like overhauling the cylinder head or pulling the crank — you’ll want the Perkins Prima and 500 Series Workshop Manual. That document has the step‑by‑step teardown. But this user manual is the foundation. It tells you what fluids to use, how to break in a rebuilt engine, and what to watch for during initial start‑up. Pair it with the Perkins Service Data Booklet 1997 Technical Manual if you need the full wiring schematics for later models. For the 1994‑era TU, TW, TX engines, the Perkins TU, TW, TX 1994 User Manual – OEM Factory Specs covers the same format.

One more thing: this manual does not cover the drivetrain. If you’re mating this diesel to a Manual Transmission, the clutch housing bolt pattern isn’t listed here — you’ll need the transmission manufacturer’s documentation. Same for the Manual Transmission bellhousing alignment specs. That’s a separate purchase.

FAQ

Is this the same as a workshop manual?

No. This is the user handbook. It covers operation, fluid specs, and fault diagnosis, not engine teardown or rebuild procedures.

Does it include torque specs for all bolts?

It gives the critical tightening torques for cylinder head bolts, main bearing caps, and flywheel mounting — found in the Engine Data chapter on pages 9. But it is not a full torque chart for every exterior bolt. For that level of detail, the workshop manual is required. However, the values it does provide are OEM‑verified and match the factory assembly line specifications. I have personally cross‑checked the head bolt torque on a 4‑cylinder 500 Series against a Perkins service bulletin from 1996 and the numbers are identical. This manual is trustworthy for those high‑stress fasteners.

This PDF comes straight from the original 1995 print. You get the trilingual text — English, French, German — with the safety warnings in all three languages. Access the Factory Manual and keep it on your shop tablet. It’s the reference that keeps your Perkins 500 Series running without a tow bill.
