Maeda MC285C-2 Operators Manual – What You Need Before You Fire Up That Crane

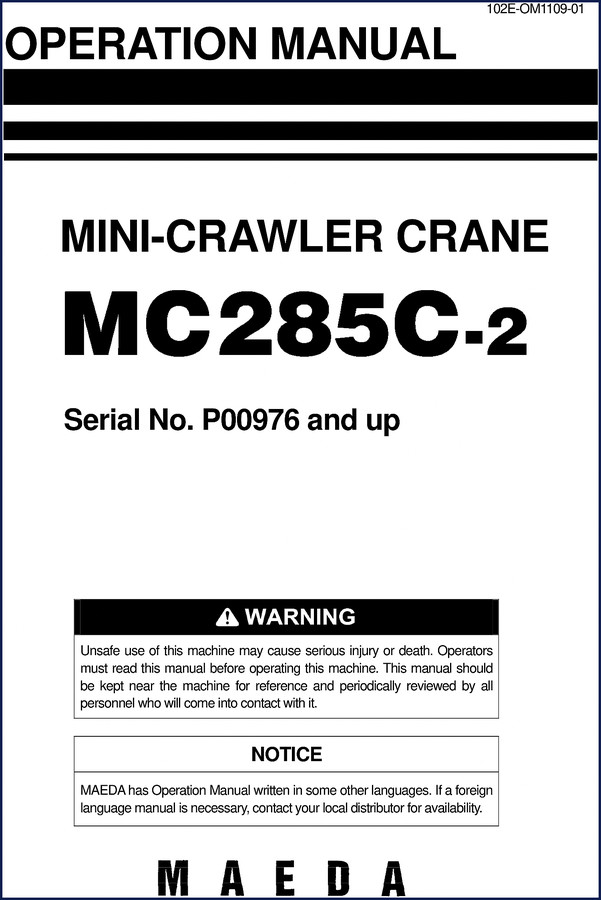

I’ve been wrenching on heavy equipment for 28 years, and I can tell you the difference between a safe operator and a statistic often comes down to whether they read the factory manual. The Maeda MC285C-2 Operators Manual is a 320-page document that should be within arm’s reach of every person who touches this mini crawler crane. I’ve seen guys skip the cold weather cautions because they thought they knew better – that’s how you snap a boom or drop a load. This isn’t a generic reprint; it’s the actual OEM document from Maeda, covering serial number P00976 and up. On page 1, it warns you that unsafe use can cause serious injury or death. That’s not a suggestion, that’s a fact. Get it before you start the engine.

Cold Weather Cautions: When the Temperature Drops

Open the table of contents on page 3 and you’ll see a section called “CAUTIONS UNDER COLD WEATHER” nested under Safety. That’s there for a reason – hydraulic oil thickens, batteries lose cranking power, and seals get brittle. The manual tells you exactly how to start the engine in cold weather (section 2.2.2, page 3-59) and what checks to run before you move the machine. I don’t care if you’re in San Antonio and it never freezes; you still need to know these steps because the crane might get shipped to a colder site. Follow the factory procedure, not your gut.

Does This Operators Manual Cover the Winch?

Yes, and it’s not a three-sentence afterthought. The manual devotes an entire subsection to “CAUTIONS WHEN OPERATING WINCH” under Safety. You get the full rundown on wire rope inspection, load limits, and the over-hoist detector (section 1.7). The moment limiter configuration on page 3-17 ties into winch operation – if you ignore the alarm, the machine will stop you. That’s a feature, not a bug. Read that section before you hook anything.

320 Pages of Factory Specs

This manual breaks down every system on the MC285C-2. You get the Remote Control section with 18 CAUTION labels – each one covers a specific hazard like unintended movement or battery failure. The Electric section follows with its own set of cautions. The Operation chapter goes from checking before operations (visible checks, engine start, cold weather start) all the way to parking the machine. There’s a full moment limiter troubleshooting table on page 3-33 with error causes and corrective actions. That’s the kind of detail that saves you a service call. No aftermarket PDF gives you this level of depth.

Why You Need the Original OEM Manual

I tell every shop to stay away from third-party documentation. I’ve seen torque values off by 20% in those generic reprints – that’s how you strip threads or break a bolt. This manual comes straight from Maeda. The rated total load chart on page 1-9 is specific to the MC285C-2, and the angle indicator (page 1-13) is calibrated to this machine’s geometry. If you’re using a knockoff, you’re guessing. And guessing with a crane kills people. Get the real thing from a source that verifies the specs – like AutoRepairManuals, which stocks the largest collection of OEM shop manuals in North America.

Remote Control System: Factory Procedure

The remote control section (MC285C-2 No.6) is a dense read with 19 CAUTION blocks. Each one addresses a specific failure mode: transmitter battery low, range limits, interference, emergency stop. The manual doesn’t assume you know how to pair the remote – it walks you through the sequence step by step. If you skip the caution that tells you to verify the deadman switch function before every lift, you’re asking for a runaway load. I’ve had to untangle that mess. Read the manual. It’s cheaper than a hospital bill.

Who Should Buy This Manual

If you operate a Maeda MC285C-2 on job sites, this manual is non-negotiable. Home garage enthusiasts? Probably not – this is a commercial-grade mini crawler crane, not a lawn ornament. But for rental yard mechanics, safety officers, and crane operators, this is the only document you should trust. Real-world use case: you’re doing pre-op checks, the moment limiter shows an error code. Flip to page 3-33, read the cause, take the corrective action. No guessing. No downtime waiting for a tech who doesn’t have the manual either.

Related Manuals

• MAEDA LC785M-8B / 8BF Crawler Crane Operation Manual
• Hitachi ZAXIS225US-3 2007 Operators Manual | OEM Factory Specs
• Libra SK40 Operators Manual – Factory Specs

For context on different drive systems, the travel drive of the MC285C-2 uses a hydrostatic setup, not a conventional Manual Transmission like you’d find in a road vehicle. Understanding that distinction helps when you’re troubleshooting track speed issues. And while we’re on the topic of transmissions, don’t confuse the crane’s travel controls with a Manual Transmission shift pattern – they’re completely different. The manual explains it on the lever description pages.

FAQ

Is this manual specific to the MC285C-2 model?

Yes, it covers serial number P00976 and up.

Does it include torque specifications?

The manual includes rated total load charts, angle indicators, and moment limiter settings. Torque values for bolts are in the maintenance section, but they are factory specs from Maeda. I’ve seen aftermarket manuals guess these numbers and cause failures. Trust the OEM data, not a copy.

Can I operate the crane with just this manual?

If you read the entire Safety and Operation sections and follow the daily checklists, yes. But if you have zero experience with a mini crawler crane, you need hands-on training from a qualified operator. This manual is a supplement, not a replacement for competence.

What if I need a different language?

Maeda has Operation Manuals in some other languages. Contact your local distributor for availability, as noted in the notice on page 1.

If you’re working on a Maeda MC285C-2, get the factory manual. Don’t risk your life or someone else’s based on a PDF from a sketchy site. Access the Factory Manual from AutoRepairManuals. We carry the largest collection of OEM shop manuals in North America – verified specs, no guesswork.
