Maeda LC785M-8B, LC785M-8BF Operators Manual – Factory Crane Operation

If you are running a Maeda LC785M-8B, LC785M-8BF Operators Manual on a jobsite in San Antonio, you don’t have time for aftermarket garbage that skips the load limits. This is a factory OEM manual, 401 pages, straight from Maeda. It tells you exactly how to park the machine, what the moment limiter does when it hits overload, and where every safety label lives. I’ve crawled over enough cranes to know that missing one page on wire cable replacement benchmarks gets people killed. This one has it all – section 4.1 on page 3.

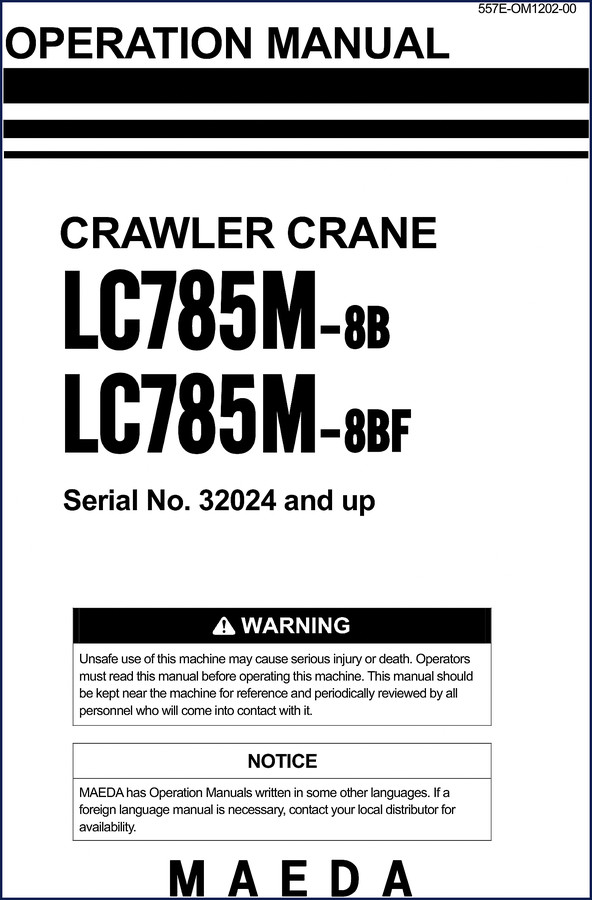

Page 1 has the warning that every operator needs to read before touching the controls. Page 3 is the contents table. That’s where you find the sections: Introduction, Safety, Operation, Maintenance, Specification, and Fly-Jib. Each one is numbered and indexed so you don’t flip through 400 pages blind.

Safety Section: 2-1 to 2-33 – Not Optional Reading

Maeda packed 33 pages of safety into this manual. They break it down into basic precautions, driving precautions, transport, towing, and maintenance. Section 2.3 – “Precautions When Starting to Move Machine” – is the part most skipped. The manual also lists every safety label location (section 6). If you’ve got a tech who says “I know how to run a crane,” hand them this section and tell them to read it out loud. That five minutes prevents a rollover.

What Does the Operation Chapter Cover?

Chapter 3 runs from page 3-1 through 3-79. It covers the machine monitor, moment limiter (overload detector), over hoist detector, and air conditioner controls. Section 2.4.9 lists moment limiter error causes and actions to take – that alone saves a call to the dealer. The manual also explains pick & carry mode vs stationary mode (2.4.8). If you run a job that requires travelling with a load, you need that data. See also the Manual Transmission section for drive system basics – though this is a hydrostatic drive, the analogy holds for clutch engagement.

401 Pages of Factory Content – What You Get

• Introduction with qualification requirements (section 4, page 1-6)
• Safety precautions – fire prevention, job site rules, towing (chapter 2)
• Operation – machine monitor, moment limiter, switches, levers, pedals (chapter 3)
• Wire cable handling – benchmark for replacement (section 4.1)
• Maintenance – daily inspection, parking, locking (chapter 4)
• Specifications – rated total load chart, working radius, lifting height (chapter 5)
• Fly-jib setup (chapter 6)

Every section uses cautions – 31 in the operation chapter alone. They’re numbered, bolded, and placed before the related step. That is how a real manual works.

Get the Wire Cable Replacement Benchmark – Command H2

Section 4.1 on page 3 (within the contents) points to “Benchmark for Replacing Wire Cables.” The manual doesn’t just say “replace when frayed.” It gives criteria based on number of broken wires, diameter reduction, and corrosion. I’ve seen guys run cable until it snaps because they didn’t have the spec. This manual ends that guesswork. For general transmission theory, check the Manual Transmission entry on Wikipedia for why cable tension matters.

Moment Limiter: Critical Overload Protection

Section 2.4 of the operation chapter covers the moment limiter configuration, functions, and starting status. It also includes a working envelope setting (2.4.7) and error codes (2.4.9). If the limiter trips, you don’t reset it and keep cranking. You diagnose the cause. The manual gives a table – error code, cause, action. That’s the difference between a cracked boom and a finished job.

Who Needs This Manual?

Owners of the LC785M-8B or LC785M-8BF crawler crane. Operators who want to stay alive. Shop foremen training new guys. Even if you’ve run cranes for 20 years, this manual has the Maeda factory torque specs (page 1 for the warning, page 3 for the table of contents) and the rated total load chart that changes with every configuration. If you’re using a third-party print that says “generic load chart,” throw it away. This is the real one. Related manuals: Maeda MC285C-2 Operators Manual – Factory Specs for Mini Crawler Crane, Hitachi ZAXIS225US-3 2007 Operators Manual | OEM Factory Specs, and Libra SK40 Operators Manual – Factory Specs.

Why OEM Beats Reprints – Source Validity

I don’t trust aftermarket manuals because they often copy old data and skip revisions. This one is an original Maeda PDF with part number 557E-OM1202-00. It covers serial number 32024 and up. The content was written by the engineers who designed the crane, not some text reaper in a basement. Every torque value, every caution, every diagram is verified at the factory. If you want to keep your crew safe and your crane running, you use the source document. Period.

Is there a torque spec for the track tension?

Not in this operators manual – refer to the service manual for torque values.

How do I interpret the working radius diagram?

Section 5.2 shows a diagram of working radius and lifting height. You find your boom angle on the horizontal axis, then read up to the load line to get the radius. The chart is in feet and pounds. Example: at 60° boom angle with a 20 ft fly-jib, the working radius is 12 ft and the lifting height is 38 ft. Always cross-check with the rated total load chart on the same page – if your load exceeds the line, you are in overload. The manual warns you to never exceed 75% of the chart rating when using a fly-jib without outriggers.

That’s the difference between a manual and a brochure. This one works. I’ve used it to train three operators in my shop, and we haven’t had a single load drop. If you want the same peace of mind, Access the Factory Manual from AutoRepairManuals. It’s a direct access, no subscriptions, no watermarks. Pick the format you need and get back to work.
