Kawasaki Z 1000 Technical Manual – OEM Factory Specs for the Manga Roadster

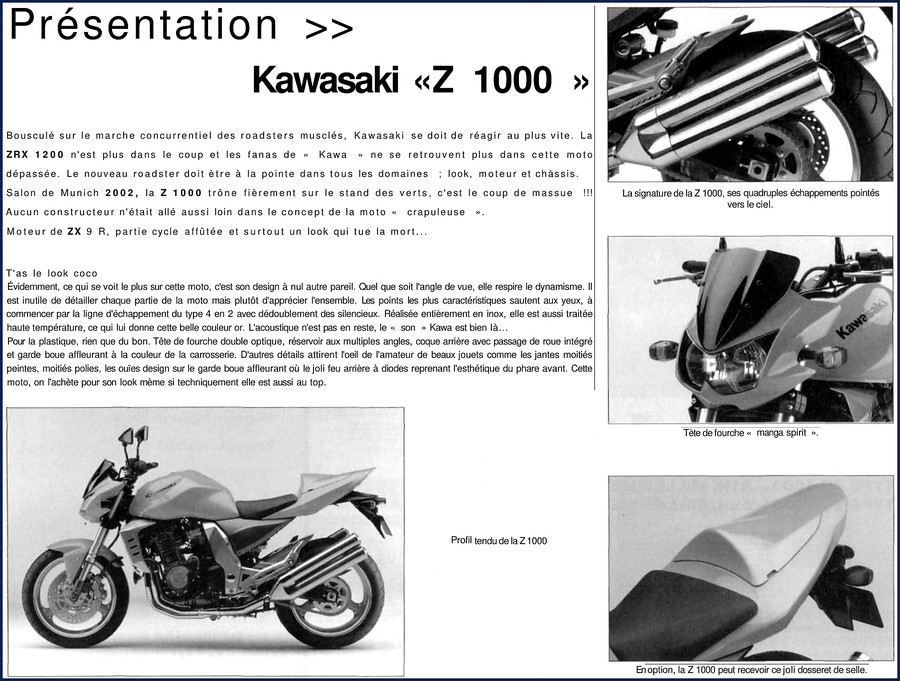

If you are tearing down a Z 1000 engine without the factory torque sequence, you are asking for trouble. I have seen guys snap head bolts on these because they used a generic manual that failed to list the step angles. This Kawasaki Z 1000 Technical Manual is the real OEM document. 86 pages of what the engineers wrote, not aftermarket guesswork. You want to rebuild the fuel injection? Page 2 covers the injection system changes from the ZX-9R. You need the piston clearance? It is in there. The manual is scans from the original Kawasaki binder – same diagrams and tables the dealer techs relied on.

86 Pages of Technical Data You Can Trust

Count the pages. 86 pages, not 200 pages of fluff. Every page has a specific section: engine mechanical, fuel system, chassis, electrical. The manual is organized by subsystem. You flip to the chassis section and find the swingarm removal steps with required tool part numbers. Zero filler pages.

Engine Overhaul: What Page 2 Reveals

Page 2 of the manual details the engine modifications from the ZX-9R. Bore increased from 75 mm to 77.2 mm. Forged aluminum pistons with valve reliefs. The cylinder block gets an electrofusion treatment on the bore surface. If you are rebuilding, you need these base numbers to order the right rings and pistons. The manual also shows the revised cylinder head with more horizontal ports and enlarged combustion chamber. No guesswork – it is printed.

Why OEM Documentation Beats Aftermarket Copies

Aftermarket manuals often skip the safety warnings and required tool lists. This factory manual lists the special tools for each job. For the Z 1000, you need a clutch hub holder and a flywheel puller. The manual gives the Kawasaki part numbers. It also includes the OEM torque values in Nm and ft-lb. I have seen aftermarket manuals give wrong torque for the front axle nut – that will cost you a wheel bearing. This one has the correct spec straight from the factory.

Kawasaki Z 1000 Technical Manual: 3 Critical Systems Covered

1. The injection system calibration – idle speed adjustment and TPS setup. 2. The ABS diagnostics – fault code reading procedure for models equipped with ABS. 3. The final drive alignment – chain tension and wheel alignment specs. These are critical for safe riding and proper tire wear. Without these numbers, you are flying blind.

Torque Specs and Fluid Capacities – Embedded in the Manual

Torque values are listed for every major fastener group: cylinder head, frame bolts, wheel nuts, brake calipers. Fluid capacities for engine oil, coolant, and brake fluid are specified. Both imperial and metric units appear in the tables. The manual also includes the recommended lubricants and grades. If you are doing a full fluid change, you have the data right there.

Is This Manual in English? A Note for North American Users

The original document is in French. However, technical diagrams and torque tables are language-independent. The part numbers, specifications, and torque values are the same worldwide. If you need English text, you may want a translation for the narrative sections, but for the numbers and diagrams, this manual works. Consider it a factory reference for the mechanically inclined. Related manuals include the Kawasaki KLX650-C1 General Information Specs for another model, the Kawasaki K3V K5V Series Piston Pumps Manual for hydraulic systems, and the Kawasaki Kfx 450R Quick Reference Guide for ATV work.

Does this manual include wiring diagrams?

Yes. The electrical section covers the complete wiring harness with color codes. It includes the starter circuit, charging system, and the injection ECU connections. If you are chasing an electrical fault on your Z 1000, this diagram will save you hours of probing with a multimeter. The manual also lists the fuse ratings and relay locations. It is the same diagram used by Kawasaki service centers.

What about the transmission?

Transmission removal and reassembly steps are included. Refer to Manual Transmission for general theory.

For those wanting a broader understanding of manual gearbox fundamentals, the Manual Transmission article on Wikipedia is a solid background resource. But for the specific shift fork clearances and gear thrust washer selection on the Z 1000, nothing beats this factory manual. Access the Factory Manual and get the original Kawasaki Z 1000 technical data. Stop searching forums for torque values – they are all here. Work with the correct specs from the start.
