Kanglim KS1056 Parts Catalog – 79 Pages of Factory Part Numbers

I’ve lost count of how many times I’ve seen a crane sit dead because someone ordered the wrong seal kit or a boom section that didn’t match the serial number. That’s money bleeding onto the shop floor. A parts catalog isn’t a repair manual – it’s your ammunition against wasted time and wrong parts. The Kanglim KS1056 Parts Catalog is a 79-page OEM document that gives you the exact part numbers, quantities, and revision codes for every sub-assembly from the boom system to the hook ass’y. If you’re keeping a Kanglim KS1056 on the job, you need this on your tablet or in your binder.

Boom System Breakdown – Section K1005609-1

Page 4 shows the boom system with six telescoping sections (1st through 6th boom), each with a Kanglim factory part number. Need the 3rd boom? It’s A1130194. The catalog lists the telescope cylinder (H1127938R1), shafts, pulleys, and ball bearings (6007ZZ). Every item has a quantity and a remark column so you know if it’s a one-off or a common wear part. This isn’t a generic parts list – it’s the same document Kanglim’s own service centers use to fill orders. Skip the aftermarket cross-references that claim a bearing fits when it doesn’t. Use this.

Telescope Cylinder and Cylinder Ass’ies – Sections K1005609-2 to 5

Sections 2 through 5 cover the telescope cylinder and the individual cylinder assemblies (1st, 2nd, 3rd). The catalog breaks down each cylinder into its components, so when you’re rebuilding a leaky stage, you pull the right seal kit number. No guessing which piston rod fits which barrel. Each sub-section is identified by a unique K1005609-2, -3, -4, -5 suffix – you can match your crane’s serial number directly.

Base, Column, and Control Lever – Sections K1005609-6 & 7

Base & Column Ass’y and Control Lever Ass’y are two critical structural groups. The base and column carry the entire crane weight. The control lever assembly includes the hydraulic spools and linkages. If you break a lever pivot, the part number is in there – no need to call a dealer and wait three days while the customer’s concrete job sits frozen. KANGlim Crane Part Subdivisions K1003412 is a related catalog for earlier models, but for the KS1056, this is the one you need.

Outriggers and Hydraulics – Sections K1005609-10 to 12

Outrigger Ass’y, Outrigger Cylinder, and Side Shift Cylinder are covered in full. These are the parts that get hammered on job sites – bent stabilizer legs, blown cylinder seals, cracked shift rods. The catalog gives you the cylinder part numbers and the hose & pipe kit routing (Section 14). KANGLIM KS2605 Crane Part Sub-Divisions Catalog covers a larger model, but for the KS1056, stick with this 79-page source.

Kanglim KS1056 Parts Catalog: What’s on Pages 1-2?

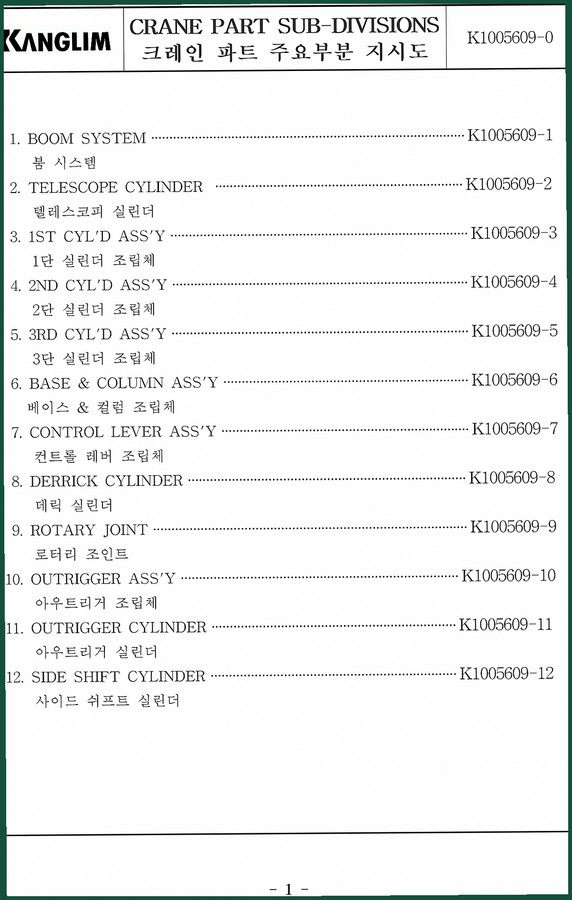

The entire main subdivision index (K1005609-0) lists 16 groups from Boom System to Crane Ass’y. Pages 1-2 contain the hook ass’y, hose & pipe kit, oil tank, and crane assembly. KANGLIM Crane Part Subdivisions Catalog KS734N is another variant, but for the KS1056, this catalog is the only source that matches factory brake-in part numbers. Aftermarket catalogs often re-index boom sections wrong – I’ve seen a “6th boom” listed as a 5th because some third-party forgot to count the nested stages. That gets you a return freight bill and a pissed-off operator.

Source Authenticity – Why OEM Beats Aftermarket Every Time

This catalog is a direct scan of the Kanglim factory print. There’s no redrawn diagram, no re-labeled illustration. Each part number, description, and revision mark (e.g., R1 on H1127938R1) is exactly as Kanglim released it. If you’ve ever tried to order from a “consolidated” parts website that shows a generic drawing and says “fits KS1056”, you know the gamble. With this catalog, you have the original document. The Automotive Industry Overview may talk about standardization, but construction equipment parts are anything but universal. The Kanglim KS1056 catalog gives you the specific part numbers that match the crane’s build. Don’t trust a reprint that loses the fine print on shaft dimensions.

FAQ

Is this a service manual or a parts catalog?

Parts catalog. It lists part numbers, quantities, and diagrams for ordering. No repair procedures.

Will this work for a KS1056A or later serial number range?

This catalog is labeled for KS1056. Serial number breaks aren’t listed in the OCR. If your crane has a different suffix, you should cross-check your machine’s serial plate with the part numbers shown. On earlier Kanglim models, revisions like R1 (page 4) indicate a design change – use the latest revision. If the base machine number matches, the groupings should be correct.

You’ve got a crane to keep running and parts that don’t arrive in the wrong box. Automotive Industry Overview doesn’t fix a boom that won’t lock – this catalog does. Access the Factory Manual from AutoRepairManuals and keep the Kanglim KS1056 parts breakdown on your bench where it belongs.
