Kanglim KDC5500 Parts Catalog – Original OEM Factory Manual

If you’re tearing down a boom on a KDC5500 and you don’t have factory part numbers, you’re gambling with your time and your customer’s wallet. Aftermarket catalogs swap digits, combine revisions, and leave you holding a shaft that’s a quarter-inch off. I’ve been an ASE Master for 28 years – I’ve seen the waste. This Kanglim KDC5500 Parts Catalog is the actual factory document, 126 pages, direct from Kanglim. No reprints, no third-party guesswork.

Kanglim KDC5500 Parts Catalog: Total Assembly Breakdown

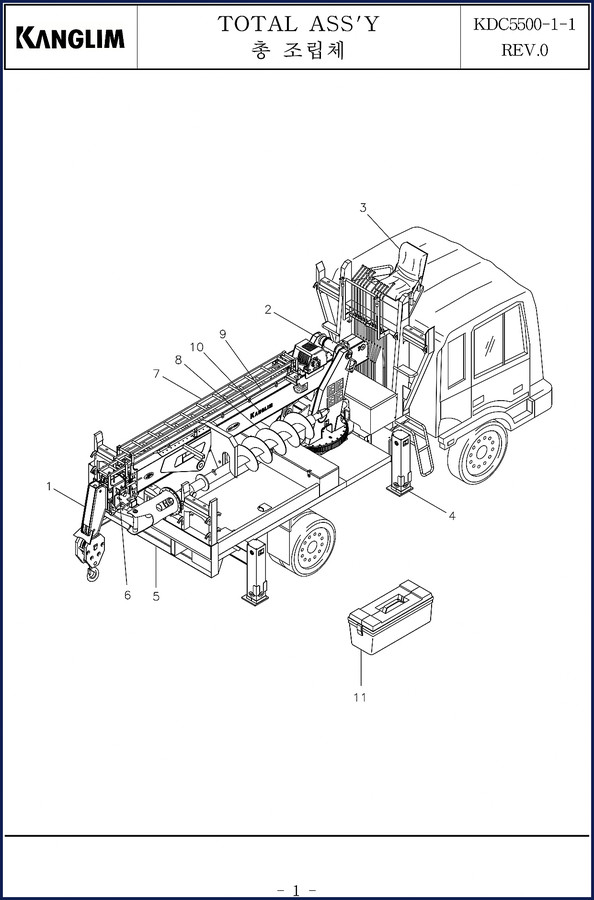

Page 1 shows the total assembly layout with 11 major sub-assemblies. You get the boom assembly, swing post, top seat, outrigger, frame, working boom, ladder, screw assembly, hose track, sticker location, and O.V.M tool set. Part numbers like A1050257R2 for the boom assembly are listed with quantities. If you need to order a replacement frame, the number A1050645R2 is right there. No flipping through a generic index.

Boom Assembly: 1st Through 4th Stage Parts

On page 4, the boom assembly is broken into 1st, 2nd, 3rd, and 4th stages. Each stage has its own part number. The 3rd stage even has a box-type variant (A1066770). Shafts A through F are listed individually – A1050307, M1058099R1, M1058100, etc. Pads, cylinders, and the boom head are all exploded. This is the kind of detail you need when you’re rebuilding a telescopic boom. You can cross-check the REMARK column for revision levels.

Outrigger and Frame Assembly Coverage

The catalog covers the outrigger assembly (A1050990) and frame assembly (A1050645R2). These are critical structural components. If you’re replacing outrigger pads or hydraulic cylinders, the part numbers are here. The working boom (A1050613) and hose track (A1052800R1) are also included. Don’t trust a generic parts list for these safety-critical parts. Get the OEM data.

Why an OEM Catalog Beats Aftermarket Reprints

I’ve had aftermarket manuals with part numbers that didn’t match anything in the factory system. They copy old revisions, merge models, and leave out REMARK notes. This catalog is a direct scan from Kanglim’s own documentation. The page numbers, the exploded views, the part numbers – all original. You can verify any number against Kanglim’s system. That’s the difference between getting the job done and chasing backorders. For related models, check the Kanglim KS733 Parts Catalog – 76-Page OEM Factory Manual and the KANGLIM Crane Part Subdivisions Catalog KS734N for additional coverage. Also see Kanglim KS2605 Parts Catalog – Factory Specs for Crane Repairs for larger crane systems.

How This Catalog Saves You Time

When you’re on a job and need a part fast, you don’t have time to leaf through a generic binder. This manual is organized by assembly. Each section has exploded diagrams with callouts. The part numbers are right next to the picture. Quantity and remarks are included. You can identify a pad (A1050314) or a shaft (M1050620) in seconds. For context on why OEM documentation matters in the automotive industry, check the Automotive Industry Overview and Automotive Industry Overview for background on manufacturing standards.

Don’t hunt for part numbers. They’re here.

FAQ

Does this catalog include torque specs?

No. This is a parts catalog, not a service manual. Torque values are in the service manual.

Can I use this to order parts for my KDC5500?

Yes. Each assembly has exploded views with part numbers and quantities. You’ll need the serial number of your unit to cross-reference with the REMARK column for revisions. Some parts have multiple revisions, so verify the REMARK code matches your machine’s build date. If you have an older KDC5500, some numbers may have superseded – but the catalog gives you the base part number to start the search.

Is this a PDF or physical book?

PDF format. You get the exact factory scan, searchable and printable.

What assemblies are covered?

Total assembly, boom (1st-4th stages), swing post, top seat, outrigger, frame, working boom, ladder, screw assembly, hose track, sticker location, and O.V.M tool set. All 126 pages.

If you’re working on a Kanglim KDC5500, get the right data from the start. Access the Factory Manual and keep your parts ordering straight.
