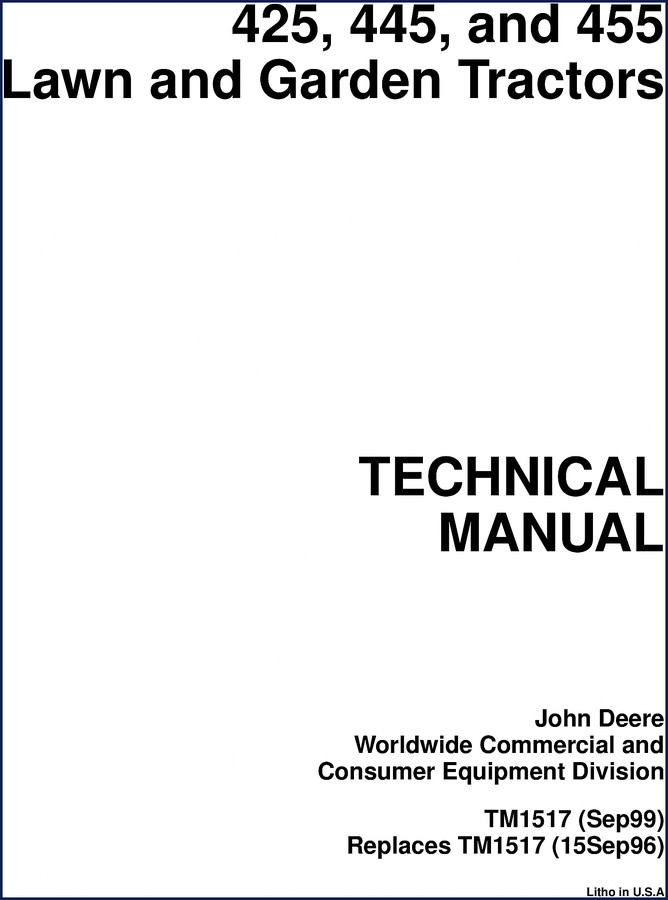

John Deere 425, 445, 455 1999 Technical Manual

If you’ve ever pulled a head bolt off a John Deere 425 garden tractor using a generic torque chart from the internet, you know the feeling of watching coolant weep out the next day. That guesswork ends with the 1999 Technical Manual for the 425, 445, and 455 Lawn and Garden Tractors. This is the same book that rolls out of the factory printer at Deere & Co. – not a condensed aftermarket reprint. At 951 pages, it covers every single fastener, clearance, and test procedure that John Deere’s engineers wrote down. I’ve been turning wrenches since before some of you were born, and I will not touch one of these tractors without this manual within arm’s reach. The safety section alone (page 3) will keep you from making a stupid mistake with hot coolant or fuel – read it.

This is not a “user guide.” It’s a technical manual written for experienced technicians. That means it assumes you know how to use a micrometer and a torque wrench, but it gives you the actual numbers. Section 2 – Specifications and Information – lists Torque Values, Non-Standard Fasteners on page [DATA NEEDED]. You’ll also find specifications for the gasoline engine (K Series and FD620D), diesel engine (3TNA72), hydrostatic power train, steering, brakes, and hydraulics. Serial number locations are right there so you can confirm you’ve got the right machine before you start pulling parts.

John Deere 425, 445, 455 1999 Technical Manual – Engine Coverage

Section 3 dives deep into the FD620D and K Series engines. Theory of operation covers the cooling system, carbureted fuel and air system for the 425, fuel injector and fuel pressure regulator operation for the 445, governor operation, and lubrication system. Then you get troubleshooting charts specific to each engine variant. Diagnostics include engine system test points and a full set of tests and adjustments – throttle lever adjustment, choke cable, governor, slow/fast idle, compression test, valve clearance, crankcase vacuum, oil pressure, fuel pump flow and pressure for both carb and injection, fan belt tension, radiator bubble test, cap pressure test, thermostat test, and cooling system test. Repair procedures walk you through engine removal and installation for both 425 and 445, exploded views of the carburetor, clean and rebuild, coolant pump, cooling fan, fuel injector and pressure regulator, flywheel, governor, throttle body, cylinder head removal and installation, valve/seat/guide inspection, push rod inspection, crankcase cover, pistons, rings, ring end gap and wear, connecting rod, crankshaft, camshaft, tappets, oil pump – it’s all there. You don’t need to guess whether a piston ring end gap spec is 0.008–0.012 in. The book tells you – and you can trust it because it’s from John Deere.

Does This Manual Cover the Diesel 3TNA72 Engine?

Yes, Section 4 is dedicated to the diesel engine found in the 455 model. Specifications include general specs, test and adjustment specs, repair specs, service parts kits, fuel injection pump, fuel control and governor linkage, injection nozzles, exhaust and intake manifolds, water pump, flywheel, flywheel housing, rocker arm cover and assembly, timing gear cover and housing, idler gear, cylinder head and valves, valve seat grinding, and valve lapping. If you’re rebuilding a 3TNA72, this section is your only safe reference.

Section 3 Engine – FD620D, K Series: Tests and Adjustments

One area where aftermarket manuals always fall short is the diagnostic logic. This manual doesn’t just list test procedures; it walks you through system diagnosis. For the 425 carbureted engines, you get engine system diagnosis and test points. For the 445 fuel-injected engines, same thing. The troubleshooting charts are organized by symptom – no more flipping through 50 pages to find why the engine won’t start. Torque values for cylinder head bolts, connecting rod caps, and main bearings are all in the repair section. Use a torque wrench that’s been calibrated in the last year, not that old beam-type you found at a garage sale.

7 Systems Beyond Engine

While the engine gets a lot of attention, the manual also covers the complete vehicle. Section 2 includes specifications for the power train (hydrostatic), steering, brakes, and hydraulics. You’ll find wiring harness legends, component locations, system schematics, and troubleshooting for electrical systems. The manual is organized so that each system has its own group: theory of operation, diagnostics, tests, adjustments, and repair. That means if your 445’s hydrostatic transmission is slipping, you go to the Hydrostatic Power Train section and follow the flow chart – not guess at which valve is stuck.

Check the Serial Number Locations Before You Start

Section 2 includes serial number locations for the tractor and major components. This matters because John Deere made running changes during production. A 1997 425 might have a different carburetor than a 1999 425. The manual accounts for those changes with update bulletins included in the PDF. Do not skip this step; ordering the wrong gasket set because you ignored the serial number prefix is a waste of time and money.

Related manuals you might need: John Deere 455 Garden Tractor Operator’s Manual for day-to-day operation and lubrication schedules. For older tractors, check John Deere 220 1993 Technical Manual – 718 Pages of Factory Specs or John Deere 240, 250 2000 Technical Manual – Factory Specs. For general background on how a Manual Transmission works, Wikipedia has a decent overview, but don’t use it to set your shift linkage. Manual Transmission theory won’t help you diagnose a worn synchro in a lawn tractor – only the OEM manual will.

FAQ

Does this technical manual include wiring diagrams for the 425, 445, and 455?

Yes. Each section includes wiring harness legends, system schematics, and troubleshooting charts. The electrical section covers the charging system, starting circuit, safety interlocks, and lighting.

What is the difference between Section 3 and Section 4?

Section 3 covers the gasoline engines – FD620D (445 fuel-injected) and K Series (425 carbureted). Section 4 is exclusively for the 3TNA72 diesel engine found in the 455 model. Do not use diesel specs on a gas engine; the torque values and clearances are completely different.

You need this manual on your workbench, not a generic PDF from a sketchy forum. The 951 pages of factory data will keep your John Deere 425, 445, or 455 running right – and save you from having to pull the same head twice because you trusted a wrong torque value. Access the Factory Manual from AutoRepairManuals and get back to work.
