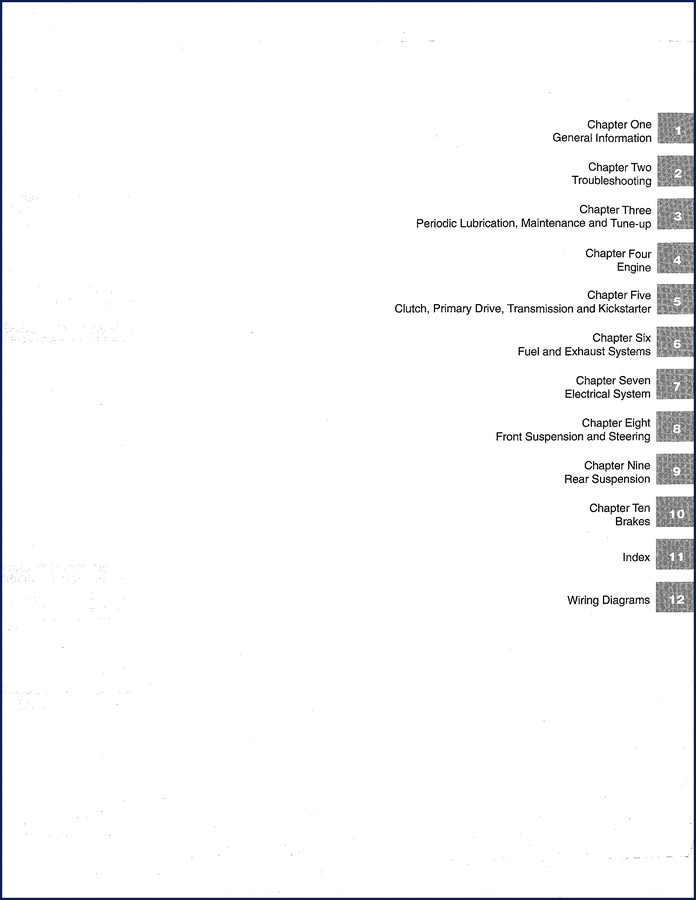

Harley Davidson Shovelheads Service Manual – Factory OEM, 425 Pages

If you’re wrenching on a Shovelhead and you don’t have a factory service manual, you’re gambling with your engine. I’ve seen too many guys ruin a good set of cases because they trusted some online forum’s torque speculation. The Harley Davidson Shovelheads Service Manual from AutoRepairManuals is the real deal – 425 pages of OEM spec data, not a reprint of a reprint. Every torque value, every clearance, every wiring color comes straight from the Milwaukee factory, not some third-party guess.

Engine Disassembly & Reassembly: What’s in Chapter Four

Page 96 kicks off the engine chapter. That’s where you’ll find rocker arm cover removal, cylinder head torque sequences, piston ring gaps, and oil pump clearance specs. The manual doesn’t assume you’ve done this before. It lists required tools, shows fastener locations, and flags the safety warnings you need before pulling the crankcase apart. If you’re replacing valve components or timing gears, this is the section that keeps you from splitting cases twice.

Troubleshooting the Charging System

Electrical gremlins kill more ride days than carb issues. Chapter Seven (page 223) breaks down the charging system for both the early (1966-1969) and later (1970-1980) setups – separate voltage regulator testing procedures, circuit breaker locations, and stator tests. The breakerless ignition service section covers late 1978 through 1980-on models, so you don’t have to guess which module you own. You get the actual stator resistance values and the correct way to bench-test the regulator. No online speculation, just factory test specs.

3 Reasons to Stick with Factory Specs

First, aftermarket manuals often skip the safety warnings. This one has them in bold at every major step. Second, aftermarket torque values are frequently rounded up or down – Shovelhead head bolts are specific, and one wrong ft-lb can pull threads. Third, the wiring diagrams in the index match the exact year breaks. A 1972 diagram won’t show the later electronic ignition wires. This manual gives you the right schematic for your model year.

What Torque Values Are Listed in the Manual?

The Quick Reference Data section (page IX) gives you a one-page lookup for all common fasteners. But the real depth is in each chapter: cylinder head bolts, flywheel bolts, primary chain tension, and brake caliper mounting. Every value is listed in ft-lb and in-lb where needed. The manual even includes a torque specification table in Chapter One with notes on thread lubricant – dry vs. oiled readings. That’s the kind of detail a pro needs because a dry torque spec on an oiled bolt throws off clamping force.

Periodic Maintenance: Intervals and Tune-Up

Chapter Three (page 41) covers routine checks, tire pressures, battery maintenance, and point ignition service – both breaker point and breakerless (late 1978-1979 and 1980-on). Carburetor adjustment procedures are given for each model’s specific carb, so you’re not guessing which idle mixture screw setting works. The maintenance interval table tells you exactly when to change primary oil, check drive belt tension, and repack wheel bearings. No ambiguity, just a schedule that matches the factory warranty specs.

Understanding how a Manual Transmission works is foundational, and this manual’s gearbox section (Chapter Five) covers the Shovelhead’s specific unit – shift fork tolerances, kickstarter clutch clearance, and shifter adjustment. If you’re learning, a general Manual Transmission guide helps with theory, but the factory specs here are what you need for the hard parts.

Related Manuals

For earlier models, grab the Harley Davidson 1940-58 SV Servi-Car Service Manual or the Harley-Davidson Service Manual 1940-1947. If you’re working on a modern Dyna, the 2008 Harley-Davidson Dyna Service Manual – Section: Electrical Diagnostics (Part covers EFI and CAN-bus systems.

FAQ

Does this manual cover all Shovelhead models from 1966 through 1984?

Yes, 1966 through 1984.

Are wiring diagrams included for the different model year electrical systems?

Yes. The manual includes dedicated wiring diagrams at the end – separate ones for early charging system (1966-1969), later charging system (1970-1980), and breakerless ignition wiring. Each diagram is keyed to the specific year range, so you won’t accidentally use a 1972 diagram on a 1980 bike. The full set is referenced in the index and covers all models within the 1966-1984 production span.

If you’re serious about keeping your Shovelhead on the road without chasing gremlins, Access the Factory Manual now. It’s the only source that gives you the real torque specs, the correct wiring, and the safety steps that keep your bike together.
