Harley Davidson XLH 1200, XLH 883, XL 1200 Custom, XL 883 Custom, XL 883 Hugger 2002 Parts Catalog

Description

If you’re ordering parts for a 2002 Sportster and guessing which nut goes where, you’re wasting time and money. I’ve seen guys order a complete Harley Davidson XLH 1200, XLH 883, XL 1200 Custom, XL 883 Custom, XL 883 Hugger 2002 Parts Catalog only to realize they grabbed the wrong cylinder head gasket because they didn’t have the right illustration. That’s why this factory PDF exists. 67 pages of exploded views, index numbers, and hardware listings straight from Milwaukee. Not a reprint. Not a scan of a scan. Original OEM file.

Cylinder Head & Valves: Read Before You Order

Page 2 of the catalog shows the index for Cylinder Head and Valves – V-Evolution. Screws, bolts, washers, lockwashers, nuts, studs. Each part has a model column telling you if it fits the 883 Hugger (HUG), 883 Standard (STD), 1200 Custom (1200C), or others. You don’t guess. You look up the part number, verify the VIN, and order. The catalog even lists ENGINE ASM. complete (1200cc) part number 16051-02 for 2002-1200C. That level of specificity is what keeps a rebuild from turning into a parts-chasing nightmare.

Transmission Gears: What’s Listed?

The table of contents shows a dedicated section for Transmission Gears, then Shifter (split over two pages), Clutch, Belts & Sprockets, and Clutch Control. Every gear, every shaft, every bearing is called out with an index number that matches the illustration. Need a shift fork? You’ll find it under Shifter. Need a clutch release plate? Clutch section. No cross-referencing between aftermarket catalogs that might use different numbering. This is Harley’s own numbering system.

3 Key Sections for the Brake System

Front Brake Control, Rear Brake Control, Front Brake Caliper, Rear Brake Caliper – all separate sections. Each includes the caliper mounting bolts, pads, pistons, seals. For example, the Rear Brake Caliper page lists the caliper body, bleeder screw, and brake pad set with OEM part numbers. If you’re rebuilding calipers on an XL 883 Custom, you order exactly what the catalog says. Not a universal fit that needs filing. Internal Combustion Engine”>Internal Combustion Engine fundamentals apply, but the parts are specific to the Evolution Sportster.

Does the Manual Cover the XL 1200 Custom?

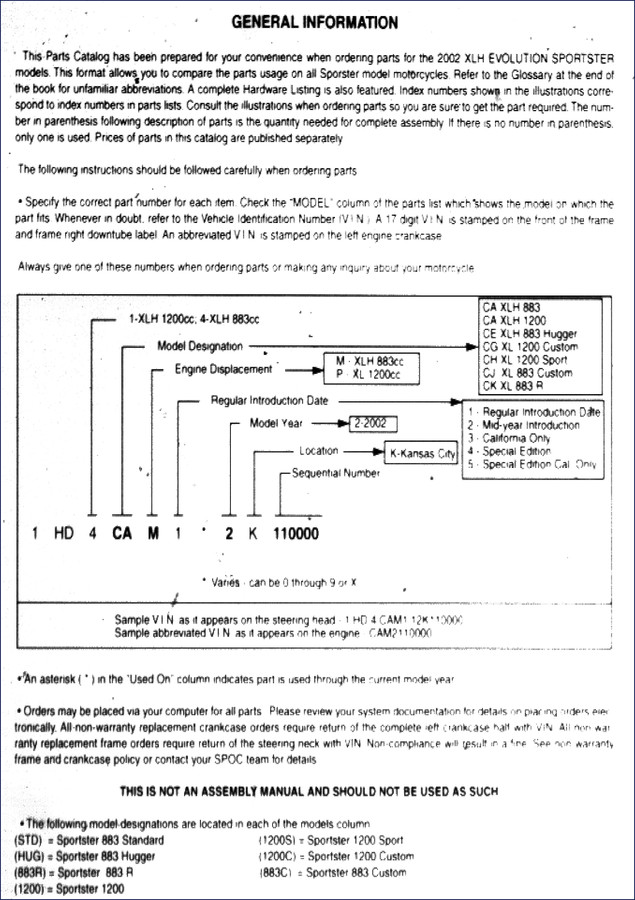

Yes. Look at the model designations listed on page 1 of the catalog: (1200C) = Sportster 1200 Custom, (883C) = Sportster 883 Custom, (HUG) = Sportster 883 Hugger. Every section from Cylinder Head to Main Wiring Harness includes a column showing which models use each part. Some sections have separate subsections for 883/1200 Custom, like Handlebar and Throttle Control 883/1200 Custom and Main Wireing Harness 883/1200 Custom. You get the right harness for your bars without cutting and splicing.

Check the Hardware Listing First

Pages near the end of the catalog – Hardware Listing – 1 and Hardware Listing – 2 – give you every bolt, nut, washer, and lockwasher used across the bike. Torque specs aren’t here (that’s the service manual’s job), but the part numbers and quantities are. If you’re rebuilding an engine and need the four screws for the cylinder head, the listing tells you part number 4748 for all models. That’s faster than flipping through twenty sections. Pair this catalog with the official service manual, and you’ve got a complete rebuild package. For older models, consider Harley Davidson SV Service Manual (1940-58) – Factory Specs for SV Servi-Car”>Harley Davidson SV Service Manual (1940-58) – Factory Specs for SV Servi-Car or Harley Davidson Shovelheads Service Manual 1966-1984 OEM Specs”>Harley Davidson Shovelheads Service Manual 1966-1984 OEM Specs for those vintage bikes. For later touring models, the Harley-Davidson Touring Models 2008 Operators Manual”>Harley-Davidson Touring Models 2008 Operators Manual covers a different line.

This isn’t an assembly manual. The catalog says that in bold on page 1. You still need torque specs and procedures from the factory service manual. But if you need to know which brake caliper piston seals fit the XL 883 Hugger, or which transmission layshaft works in the XL 1200 Custom, this is the document. No ambiguity. No aftermarket cross-reference errors. Automotive Industry Overview”>Automotive Industry Overview principles of accuracy apply double to motorcycle parts.

Q: Does this catalog include torque specifications?

No. This is a parts catalog only. Torque values are in the factory service manual. Do not use part numbers as torque specs.

Q: Will this work for my 2003 Sportster?

No. The catalog is for 2002 model year only. Model year changes often alter part numbers, especially in wiring harnesses and engine assemblies.

Q: How do I read the model column abbreviations?

Page 1 lists: (STD) = Sportster 883 Standard, (HUG) = Sportster 883 Hugger, (883R) = Sportster 883 R, (1200) = 1200 Sportster, (1200S) = Sportster 1200 Sport, (1200C) = Sportster 1200 Custom, (883C) = Sportster 883 Custom. Match your bike’s VIN to the right abbreviation before ordering.

Q: The catalog mentions a ‘Glossary’ – where is it?

Refer to the ‘Glossary’ at the end of the book for unfamiliar abbreviations. It’s after the Hardware Listing. If the PDF bookmark doesn’t show it, scroll to the last pages. The glossary defines terms like ‘HUG’ and ‘STD’ used in the model column.

Stop ordering wrong parts. Get the OEM numbers straight from the source. Access the Factory Manual and keep it on your bench or tablet while you work. Every Sportster owner who does their own wrenching needs this reference.
