Hangcha J Series Parts Catalog – Factory Numbers You Can Trust

If you’re ordering parts for a Hangcha J Series forklift and you’re using aftermarket cross-reference lists, you’re going to get wrong bolts, wrong seals, and wasted time. I’ve seen guys order a simple M24×80 bolt from a generic catalog and end up with a Grade 8.8 instead of the 10.9 the factory calls for. That’s a snapped bolt on a drive system. This Parts Catalog is the real thing – OEM Hangcha documentation, 94 pages, direct from the factory. It lists every part from the counterweight to the drive axle with Hangcha’s own part numbers and material codes.

What the Catalog Covers: Drive System and Axle

Open to Fig. 2 and you’re looking at the complete drive system layout – motor, drive axle assembly, reduction gearbox, and all the fasteners that hold them together. Every bolt has a size, grade, and quantity. The O-ring for the reduction box is specified as 95×3.1 mm – try guessing that from a generic diagram and you’ll be ordering the wrong one. Fig. 3 takes you into the drive axle itself: left and right support plates, brake assemblies (left and right), oil seals PD160×115×14, vent plugs, and studs. The catalog gives you the exact part number for each brake assembly: R450-113000-000 for left, R450-114000-000 for right. That level of detail is what keeps a job from turning into a parts-run nightmare.

Why Factory Part Numbers Beat Aftermarket Cross-References

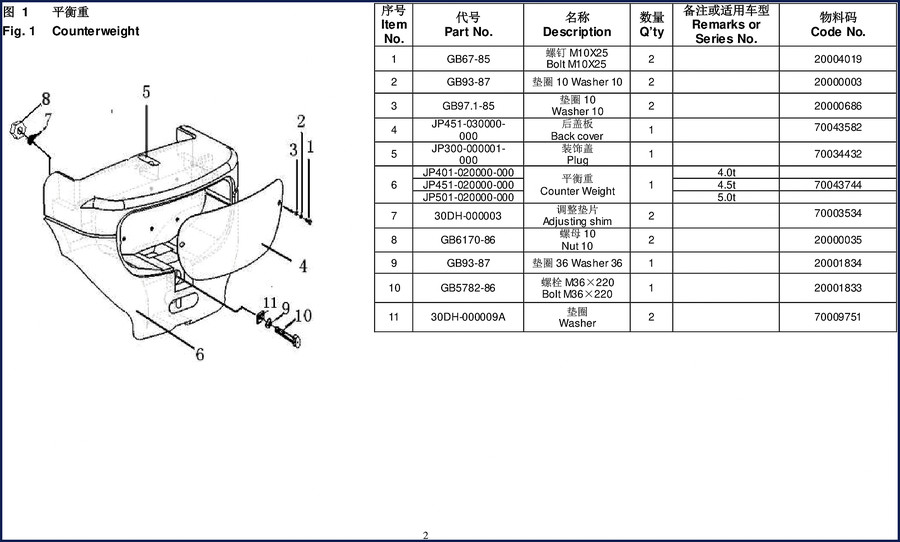

Aftermarket catalogs often lump multiple variants under one number, then you get a part that doesn’t fit the J Series torque converter housing or the axle housing. Hangcha uses a structured numbering system – the prefix tells you the series and the application. Take JP451-030000-000 for the back cover, or JP401-020000-000 for the counterweight on the 4.0t model (JP451-020000-000 for 4.5t, JP501-020000-000 for 5.0t). Those numbers are tied to weight ratings and frame dimensions. A parts manual that doesn’t differentiate between a 4.0t and a 5.0t counterweight is useless. This catalog does it right.

Who Actually Needs This Manual?

Fleet maintenance shops that run Hangcha lift trucks. Independent forklift techs who hate returning parts. Home garage guys with a J Series that needs axle seals or brake work. The guy who buys generic parts from Amazon then wonders why the oil seal leaks after 20 hours – this catalog would have told him the seal is PD160×115×14, not a standard 160×115×14. The shims (30DH-000003, adjusting shim) are listed with qty 2 and a material code – without that you’re stacking random washers and risking axle misalignment. If you work on these trucks professionally, you make your money back on the first job that doesn’t require three trips to the dealer.

Specs That Are Actually Factory-Verified

The catalog lists hardware specs explicitly: Bolt M24×80 (GB27-88) with 10 nuts, washers 24 (GB93-87) qty 10, torque spec not printed here but you can cross-reference to the service manual. The drive axle assembly (JP451-110000-000) references back to Fig. 3 for internal components. Every screw, plug, and washer has a GB or JB standard number and a Hangcha material code. That means you can order from Hangcha’s supply chain with confidence – the part you receive will match the diagram. The catalog is 94 pages of exploded views with tables – no prose, no filler, just data.

Source Authenticity: OEM vs Aftermarket

This is a direct factory-issued Parts Catalog, not a third-party compilation. The file name ends in _en-30114016206.pdf – that’s a Hangcha internal document code. Aftermarket catalogs often photoshop part numbers or omit new revisions. The J Series has at least three build variants (4.0t, 4.5t, 5.0t) and the axle assemblies differ. The OEM catalog shows each variant in the same table with separate part numbers. A generic supplier won’t give you that split. As Automotive Industry Overview observes, the difference in fastener standards between OEM and aftermarket is a major source of failures in industrial equipment. Don’t be that guy. Use factory data.
