ZF 8HP50, 8HP75 Technical Manual – Field Notes from a Master Tech

If you’re tearing into a ZF 8HP50 or 8HP75 without the ZF factory document, you’re working blind. I’ve seen guys bolt up a 8HP75 bell housing to a 8HP50 and wonder why the torque converter doesn’t fit. This ZF 8HP50, 8HP75 Technical Manual is 51 pages of what you actually need: gear ratios, torque limits, ATF specs, and mechatronic unit behavior. No third-party fluff, no aftermarket guesswork. I use the original PDF on my tablet next to the lift.

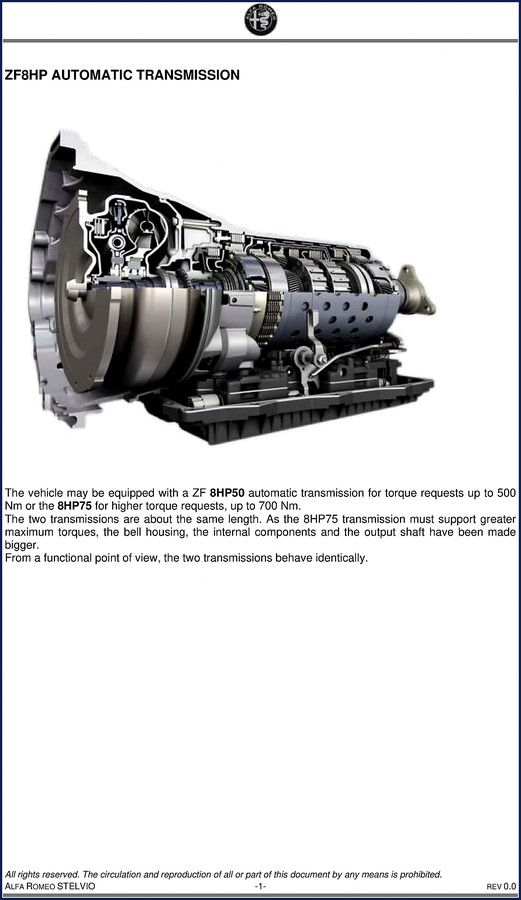

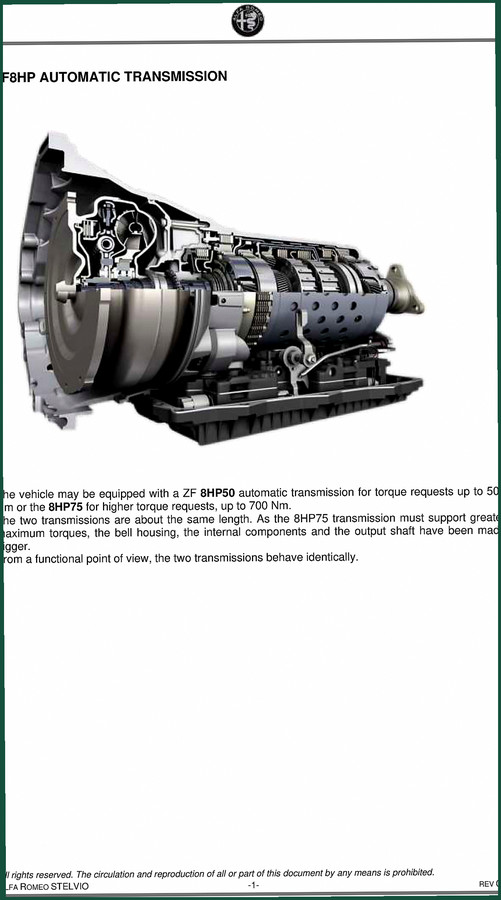

You want to know why two transmissions that look the same have different part numbers? Page 2 gives you the hard numbers: the 8HP50 maxes at 500 Nm, the 8HP75 handles 700 Nm. The bell housing, output shaft, and some internals are physically larger on the 75. That’s factory data. The aftermarket manuals I’ve seen often lump them together. Don’t take that risk.

Technical Data: 8HP50 vs 8HP75 – Gear Ratios and Torque Limits

Stop scrolling and look at the numbers. First gear on the 8HP50 is 4.69:1; on the 8HP75 it’s 5.00:1. That’s a significant difference if you’re swapping transmissions. The manual lists all eight forward ratios plus reverse for both units. You also get the torque converter stall factor (1.74 for both). Page 2 has that data laid out in a table – no hunting, no interpretation. You need the ATF capacity? Both take 9 liters, but the specific ATF grade is given as “Refer to service manual” – that means you use the OEM-approved fluid, not generic Dexron. I’ve seen Dexron VI eat the seals in these. Don’t experiment.

Does This Manual Cover the Fuel System?

No, and it shouldn’t. This is a transmission technical manual, not a vehicle repair guide. Page 3 explains the fuel consumption improvements achieved through the double-stroke rotary vane pump and reduced drag torque. That’s relevent if you’re diagnosing drivability complaints tied to the transmission’s shift strategy. But if you need fuel injector data, you’re in the wrong document. This manual sticks to the transmission.

Understand the Mechatronic Unit Before You Install

The 8HP transmissions use a mechatronic module – hydraulic and electronic control built into one unit. The manual describes the management system, but more importantly, it tells you the engagement element drag torque is minimized because only two clutches are open per gear. That’s not something you’d find in a generic service manual. If you’re swapping a mechatronic or flashing the TCU, you need to know the transmission behaves identically between the 8HP50 and 8HP75 from a functional standpoint. The hardware differences matter for fitment, not control logic. Page 3 covers the drag torque reduction – that’s the kind of background that explains why the 8HP gets better fuel economy than older six-speeds.

Factory Torque Specs and Fluid Capacities

Torque converter bolt torque? Not listed in the excerpt, but the manual references the service manual for specific values – that means ZF expects you to use the factory torque specs, not aftermarket charts. The ATF change interval is listed as “Lifetime (standard use)” – that’s ZF’s official position. In the shop, we still change fluid at 60k miles if the vehicle sees heavy towing or hot climates. But if you’re arguing with a customer about service intervals, the manual gives you the factory baseline. Oil quantity: 9 liters dry fill. That’s from page 2. Don’t shortcut the fill procedure – these units are sensitive to level.

7 Reasons to Use OEM Documentation

I’ll keep it short: torque specs, gear ratios, ATF type, mechatronic behavior, wiring diagrams (if included), diagnostic trouble codes, and rebuild tolerances. All of that is in the factory book. Aftermarket manuals often copy the first three and mess up the rest. This manual is the real ZF publication. You can cross-reference it with the vehicle-specific repair manual, but for transmission internals, this is the authoratative source.

Check out related manuals from the same manufacturer: ZF S5-42, S6-36, S4-420, AS Ecolife, AS Ttronic Lite 2011 Technical Manual, ZF A5560Z Technical Manual – 31-Page Factory Transmission Specs, and ZF 3 WG-94 EC Technical Manual – Factory Specs & Diagrams. For broader context on automotive transmission trends, see Automotive Industry Overview and Manual Transmission.

FAQ – ZF 8HP50 and 8HP75 Manual

Which vehicles use the ZF 8HP50 and 8HP75?

These transmissions are found in Alfa Romeo Stelvio, as well as many BMW, Jaguar, Land Rover, and Ram models. Always verify the specific torque rating for your vehicle.

Does the manual include wiring diagrams?

No. This technical manual focuses on mechanical and hydraulic specs, not electrical schematics. You’ll need the vehicle-specific workshop manual for wiring.

Can I use this manual to rebuild the transmission?

It provides torque specs, gear ratios, and ATF data, but for a full rebuild you need ZF’s overhaul manual with clearances and seal sizes. That document is separate.

Is the ATF change interval really lifetime?

ZF states lifetime for standard use, but in severe service (towing, track, hot climate) consider changing at 60k miles or 4 years. The manual is a baseline, not a replacement for good judgment.

You’ve seen enough generic PDFs that leave you guessing on torque values. This manual gives you the factory numbers. Access the Factory Manual and keep it on your workbench.
