ZF A5560Z Technical Manual – Factory Transmission Service Guide

You have a ZF A5560Z transmission on the bench and no time for guesswork. This 31-page factory document gives you the exact same data ZF dealerships use — not a third-party rewrite. I’ve seen aftermarket manuals that list fluid capacities from a different transmission entirely. That costs you labor and a comeback. This one came from the ZF engineering group.

Working on the A5S560Z variant? The manual covers the AGS adaptive features introduced in 1994 with that transmission. Adaptive shift programs based on throttle input and environmental conditions — all laid out with the factory logic. Page 46 starts the diagnostic plan with fault code procedures. You follow that flow, you find the problem.

What the ZF A5560Z Technical Manual Covers

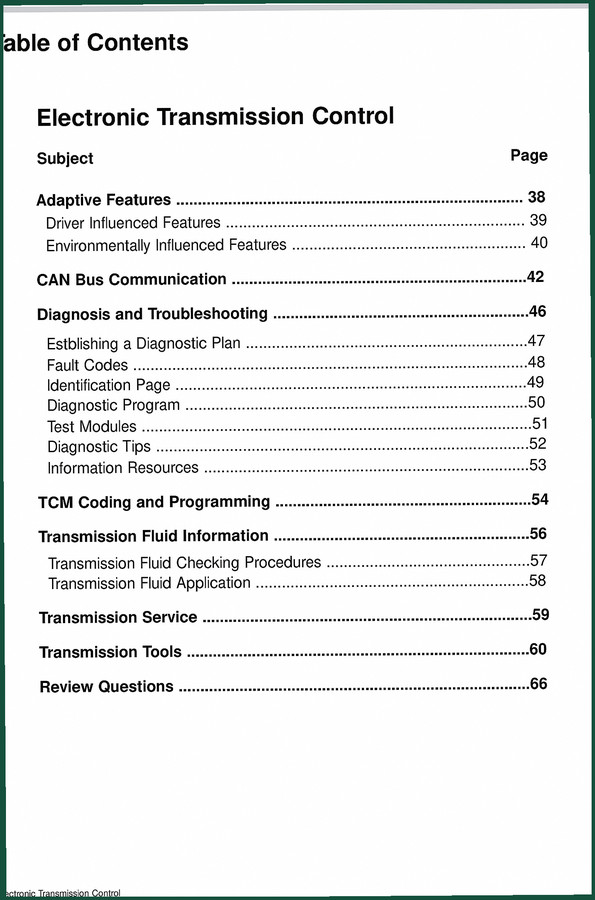

Transmission Fundamentals sections (P1 and P2) get you the basics of how this unit works internally. Then the Electronic Transmission Control chapters break down the CAN Bus communication, TCM coding and programming, and the fluid checking procedures. Specific sections include Adaptive Features (AGS), Driver Influenced Features, and Environmentally Influenced Features. Each one explains how the TCM decides shift points — Extreme Economy, Economy, or Sport modes. That alone saves you the headache of a customer complaining about erratic shifting after a rebuild.

Diagnosis and Troubleshooting runs from page 46 through 53. You get fault code tables, test modules, diagnostic tips, and information resources. If you skip the diagnostic plan on page 47, you’re chasing ghosts. Stick to the factory sequence.

31 Pages of Factory Specs

Thirty-one pages. Not two hundred pages of fluff. Every page is dense with procedures, torque values, fluid application charts, and tool lists. The Transmission Tools section on page 60 lists exactly what you need to pull this job without damaging the case. I’ve watched guys use a pry bar on a ZF bell housing because they didn’t have the right puller. That’s a $400 mistake. The manual tells you the tool number. Use it.

For lubrication specs, cross-reference with the ZF Lubrication Recommendations TE-ML 02 — that document is the companion for fluid type approvals. This manual gives you the checking procedure (page 57) and application chart (page 58). Do not guess the fluid.

AGS Adaptive Features Explained

The AGS system is not magic. The TCM monitors throttle position, rate of change, acceleration requests, and kickdown events. It picks a program based on current driver behavior — no long-term memory stored. That means a test drive after service must include all driving conditions to reset the adaptation. The manual lists the three programs: Extreme Economy (low shift points for max fuel economy), Economy (moderate), and Sport (higher RPM shifts for performance). If your customer complains about harsh upshifts, check the throttle input data first. Page 40 has the environment influence table (icy roads, etc.).

Diagnosis and Troubleshooting Flow

Start with Establishing a Diagnostic Plan on page 47. That page is worth the price of the manual by itself. It walks you through symptom validation, fault code retrieval, and component testing. Fault codes on page 48 are the actual ZF codes — not generic OBD-II P-codes. You need the real code to pinpoint a solenoid or valve body issue. The Test Modules on page 51 let you actuate components directly from the TCM. If the transmission won’t shift out of second, run the solenoid test module before you drop the pan.

Need to update the TCM software? Page 54 covers TCM Coding and Programming. This is where aftermarket manuals get it wrong — they tell you to flash with a generic tool. ZF specifies the exact diagnostic programmer and sequence. Follow that or you toast the module.

Required Tools and Safety Warnings

Page 60 lists the transmission tools. Torque wrench, fluid pump, alignment fixture, and the ZF special tools for seal installation. Do not substitute a socket for the alignment tool – the converter will leak. The manual also includes review questions on page 66 – those aren’t for certification, they test that you understood the material. I’d recommend going through them before buttoning up the job.

For related ZF automatic transmissions, check the ZF ERGOPOWER 3 WG-94 EC Technical Data Manual for heavy-duty applications, or the ZF 8HP Automatic Transmission Technical Manual for newer eight-speed units. If you need background on transmission fundamentals in general, the Manual Transmission article contrasts with automatic design, but stick with this manual for the A5560Z.

The broader Automotive Industry Overview might put this in context, but your time is better spent on the actual factory procedures.

Frequently Asked Questions

Does this manual include torque specifications for the valve body bolts?

Yes. Torque values are listed in the Transmission Service section on page 59. All specs are in foot-pounds (imperial).

How do I interpret the AGS adaptive features when diagnosing a shift complaint?

The adaptive system uses throttle input (position, rate of change, number of kickdown requests) to select one of three programs: Extreme Economy, Economy, or Sport. The manual details the drive-away evaluation on page 2 – if the customer takes off under full throttle, the transmission shifts from Extreme Economy to Economy. The adaptation continuously updates each drive cycle; it does not store long-term memory. To diagnose, monitor the actual throttle input via CAN bus (page 42) and compare to the current driving program. If the transmission stays in Economy mode when the driver expects sporty shifting, check the TCM coding and throttle sensor calibration using the test modules on page 51. The manual provides the factory diagnostic plan and fault code references that let you rule out mechanical issues before blaming the software. Follow the sequence from page 46 to page 53 without skipping steps.

Enough reading. You have a transmission to rebuild. Get the factory data on your screen or printed out. Access the Factory Manual now.
