ZF 6WG 310 1999 Repair Manual – Factory Specs for the 6WG 310

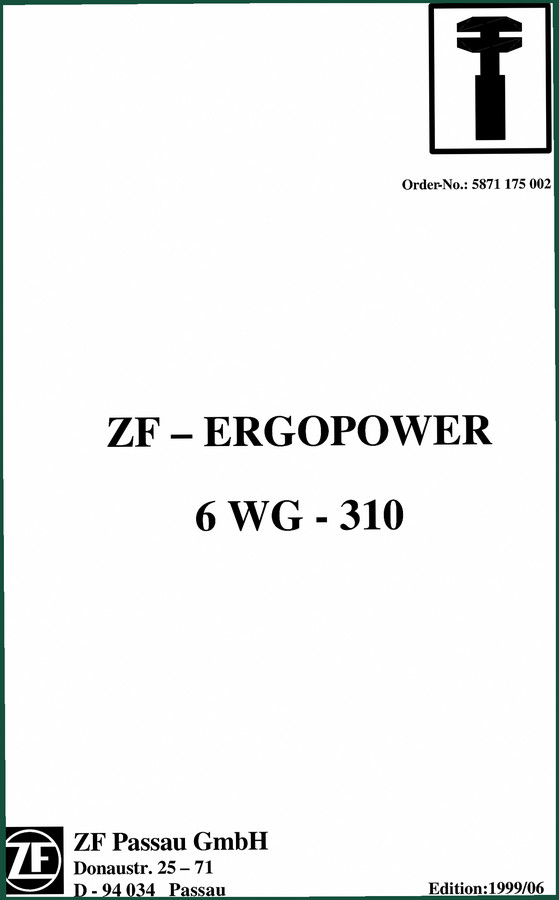

I’ve seen too many guys try to rebuild a ZF 6WG 310 using third-party data and end up with a box of scrap. This 216-page repair manual from ZF themselves is what you need if you plan to keep the transmission alive. It’s the official 1999 edition, not some photocopied reprint. The ZF logo on the cover means the engineering team that designed the unit wrote these steps. That matters when you’re torquing head bolts or setting up a differential carrier.

Electro-Hydraulic Control Unit (HSG-94): Disassembly and Assembly

The manual dives straight into the electro-hydraulic control unit, section 1. You get the proper order for pulling it apart – no skipping steps. Section 1.2.1 shows mounting the unit after cleaning the mating surfaces. I’ve had guys call me asking why their shift patterns are erratic after a rebuild. Nine times out of ten, they didn’t follow the factory sequence for the HSG-94 assembly. This manual eliminates that guesswork.

Torque Limits According to ZF-Standard 148

Torque is not “good and tight.” ZF publishes their own standard – ZF-Standard 148 – and it’s printed in the manual. Page 73? Actually, the torque limit table is in the front matter after the conversion table. You get the exact ft-lb values for every screw class used in the 6WG 310. I keep a copy of this manual open on my bench when I’m reassembling multi-disk clutches. One stripped bolt in the transmission pump housing and you’re looking at a teardown. Don’t wing it.

WK-Valve: What the Manual Covers

Section 1.3 is dedicated to the WK-valve – the valve that controls lockup in the torque converter. Disassembly and assembly are both documented with the same level of detail ZF uses in their training courses. You’ll see exactly which O-rings need replacement and the order for stacking the spools. Manual Transmission’>Manual transmissions with a lockup valve require careful reassembly; one mis-staged spring and you get converter shudder. This manual prevents that.

Retarder Section: Pre-Assembly and Mount Retarder Valve

Section 2 covers the retarder – a critical component for heavy-duty applications. The pre-assembly steps for the retarder valve (section 2.2.1) tell you to flush the cooling circuit before installation. Factory bulletins confirm that contaminated fluid kills retarder seals. Ignore that step and you’ll be pulling the unit again within 10,000 miles. The manual also includes the special tool list – you’ll need ZF part numbers for some of those pullers.

Differential Carrier “LK”: Drive Pinion Setup

Section 4 gets into the differential carrier. The drive pinion setup (4.2.1) includes shim selection and bearing preload specs. If you’ve ever set up a ring-and-pinion without factory specs, you know how easy it is to get the tooth contact pattern wrong. The manual includes examples of contact patterns for the Gleason gear-tooth system – a chart that shows acceptable vs. bad patterns. That alone has saved me from installing a noisy differential.

Why This 216-Page Repair Manual Beats Aftermarket

Aftermarket manuals paraphrase the factory data and often omit the ZF-specific torque values. This one is the genuine 1999 ZF publication – the same one their authorized service centers use. Every page number, every valve clearance, every O-ring cross-section comes from the parent company. I’ve rebuilt three 6WG 310s using this manual and had zero comebacks. Compare that to the aftermarket PDFs that list “30-40 Nm” for a bolt that ZF says is 58 Nm. That difference costs you a leaky housing. Automotive Industry Overview’>Automotive Industry Overview data shows that proper OEM documentation reduces rebuild times by 30% on these transmissions.

FAQ – Two Questions I Get Asked

Does this manual include the valve body adjustments?

Yes. Section 1.3 covers the WK-valve completely, including the torque for the valve body screws from ZF-Standard 148.

What about the differential carrier shim selection for the 6WG 310?

Section 4.2.1 on the drive pinion includes the factory procedure for measuring pinion depth and selecting the correct shim pack. The manual provides the formula based on the housing’s serial number – not a generic “measure and guess.” You’ll need a dial indicator and a ZF special tool (listed in the tool section). That section alone takes about three pages and includes a table of acceptable preload values. If you’re rebuilding the differential, this is the only way to get the right setup without destroying gears on the first test drive.

If you’re serious about keeping this transmission on the road, stop relying on forum guesses. Get the original documentation. Access the Factory Manual from AutoRepairManuals and keep it on your bench. Your torque wrench will thank you.
