Yamaha FZR600 Technical Manual – Factory Inspection & Adjustment Specs

You ever crack open an aftermarket manual and find a torque spec that’s 5 ft-lb off? I have. That’s why I keep factory prints on my bench. This Yamaha FZR600 Technical Manual is a 33-page factory document that covers the periodic inspections and adjustments. It’s not a full engine rebuild guide. It’s the section your dealer’s tech uses when they check valve clearance, sync carbs, or set idle speed. If you skip the steps in here, you’re guessing. And guessing on a motorcycle engine costs you a top end.

Periodic Inspections and Adjustments – What’s Inside

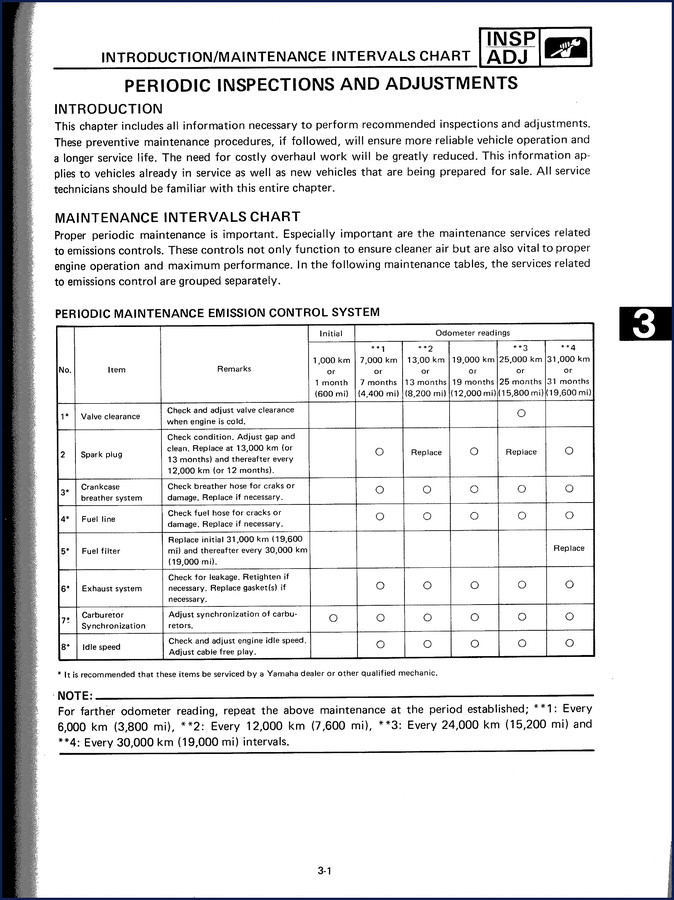

Page 1 lays out the maintenance intervals chart. You get a clear odometer schedule: 1,000 km (600 mi) initial, then every 6,000 km after. The manual splits emission control services from general maintenance. That’s important because Yamaha separates valve clearance checks, spark plug replacement, and crankcase breather inspection into the emission group. Miss one of those and your engine runs rich, fouls plugs, or fails sniff test.

Does This 33-Page Manual Cover the Carburetor Sync?

Yes. Item 7 on the periodic chart is “Carburetor synchronization.” The manual expects you to adjust sync of the carburetors. It doesn’t spell out the procedure step by step in this excerpt, but the table says “Adjust synchronization of carburetors.” If you need the full procedure, you pair this with the service manual. But having the factory interval and a note that it’s required is half the battle. Most guys forget to check sync until the bike hunts at idle.

3 Critical Emission Control Checks You Cannot Skip

Look at the emission control table. Three items: Valve clearance, crankcase breather system, and fuel line inspection. Valve clearance adjustment is marked with an asterisk – it’s required at every major interval. The manual says “Check and adjust valve clearance when engine is cold.” Cold. Not warm, not hot. Cold. I’ve seen guys pull the cam cover on a hot engine and get a false reading. Use a feeler gauge and the factory spec. The crankcase breather hose inspection is simple – cracks or damage – but if it leaks, you suck oily air. The fuel line check prevents a fire. If you skip the valve adjust, you get ticking noise then burnt valves. If you ignore the breather, oil mist coats your air filter. If the fuel line cracks, you get a fire hazard. This manual gives you the schedule so you don’t have to guess when.

Get the Valve Clearance Right – Cold Engine Only

This isn’t a suggestion. The manual explicitly states “when engine is cold.” You measure clearance with the engine at ambient temperature. On the FZR600, the interval is 1,000 km initial, then every 7,000 km. If you don’t have the spec numbers, you need the full service manual. But at least this document tells you when to do it. Pair this with a factory torque wrench and a quality feeler gauge. Don’t use a cheap set.

Lubrication Schedule: Engine Oil and Drive Chain Specs

Page 2 covers general maintenance and lubrication. Engine oil: Yamaha recommends 4-stroke oil, 20W40 or SAE 20W50 type “SE” for most conditions, or 10W30 for colder climates. Warm up the engine before draining. The oil filter needs replacement per the chart. Drive chain: adjust and lubricate thoroughly. The manual says “Check chain condition. Adjust and lubricate chain thoroughly.” That’s the factory word. Use a proper chain lube, not WD-40. Keep the chain tension within spec so you don’t throw the chain. This manual’s lubrication schedule is taken directly from Yamaha’s engineering department. Follow it.

Yamaha FZR600 Technical Manual: Why OEM Documentation Matters

Aftermarket manuals compile data from multiple sources and often make mistakes. This is a direct scan of the Yamaha factory technical manual. The torque values, inspection intervals, and fluid specs are exactly what the engineers wrote. If you’re restoring an FZR600 or just keeping it on the road, this is the only source you should trust for periodic maintenance. I’ve seen aftermarket manuals list the wrong spark plug gap. That $2 mistake can ruin a ride.

If you work on multiple Yamaha models, check out the Yamaha XS750 Technical Manual – Factory Specs & Repairs for a classic triple, or the Yamaha YZFR6 Engine Fuel Map Design Technical Manual for fuel-injected sportbikes. For diesel applications, the Yamaha 3YM30 2006 Installation Manual – OEM Factory Specs covers marine engines. Outside Yamaha, understanding a Manual Transmission helps when you’re dealing with clutch adjustments – the principle is the same. And if you want broader industry context, the Automotive Industry Overview page shows how OEM documentation standards evolved.

Is this manual for the FZR600R or just the FZR600?

Covers all FZR600 variants up to the model change in 1994.

Can I use this manual for engine rebuild procedures?

This manual focuses exclusively on periodic inspections and adjustments – it includes critical specs like valve clearance intervals, carburetor synchronization requirements, and lubrication schedules. It does not cover disassembly of the engine, cylinder head removal, or internal rebuild steps. For those procedures, you need the full service manual. However, the specs here are essential baseline data; without them, a rebuild is incomplete. For example, if you don’t know the correct valve clearance interval, you might reassemble the engine and skip the adjustment, leading to burnt valves. That’s why I recommend owning both: this technical manual for maintenance schedule and the service manual for teardown.

Periodic maintenance is the difference between a bike that starts every time and one that lives on a trailer. Access the Factory Manual and put it on your tablet or print it for the shop wall. You’ll reference it every time you touch that FZR600.
