VW OCTAVIA Training Manual – 1.8L Turbo Engine Self-Study Programme

Nobody walks into my shop with a turbocharged OCTAVIA and a generic internet printout expecting a straight answer. I know the fear – you pull the intake manifold and suddenly there are five valves per cylinder, a Motronic M3.8.2 with cylinder-selective knock control, and you have no idea what the boost pressure control solenoid is supposed to read. The VW OCTAVIA Training Manual is the factory’s own 34-page breakdown of exactly how this engine works – not some third-party paraphrase that skips the sensors page. It’s the document VW engineers wrote so technicians understand the system before touching a wrench.

That’s the difference between guessing and knowing.

1.8L Turbo Engine Technical Data – Page 4 Specs

Open to page 4 and you get the hard numbers. Engine code AGU, 1781 cm³ displacement (108.7 cubic inches), bore 81 mm (3.189 in), stroke 86.4 mm (3.402 in), compression ratio 9.5:1. Rated output 110 kW (150 HP) at 5700 rpm, max torque 210 Nm (155 lb-ft) from 1750 to 4600 rpm. That torque plateau tells you this thing pulls hard across the midrange. Engine management is Motronic M3.8.2 with sequential fuel injection and mapped ignition with cylinder-selective knock control. If you are swapping a 1.8T into a project car, those numbers are your baseline. The manual also lists technical highlights: five valves per cylinder (three intake, two exhaust), two overhead camshafts with the exhaust cam driven by toothed belt and the intake cam driven by chain off the exhaust cam. That chain arrangement is a common failure point – the manual explains the layout so you can inspect it without disassembly.

VW OCTAVIA Training Manual – The 34-Page Engineering Breakdown

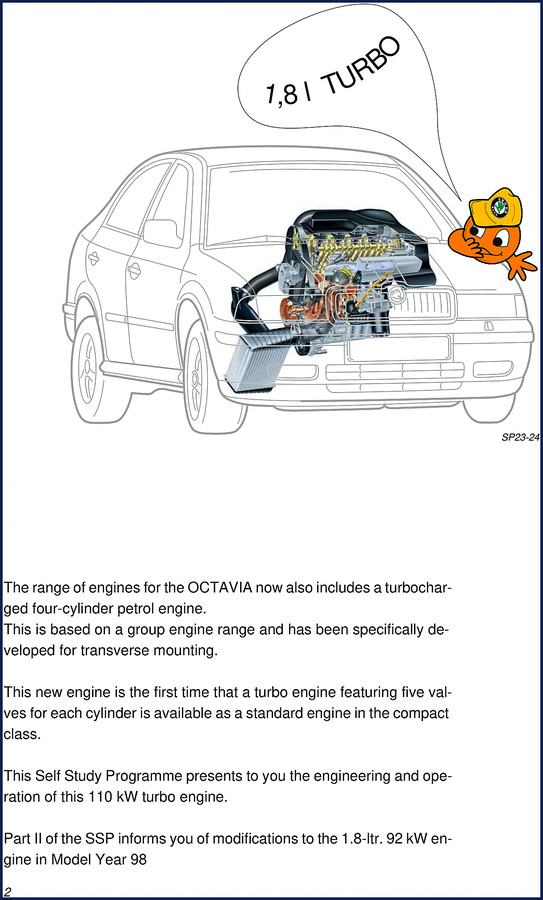

At 34 pages, this is not a workshop manual. It is a self-study programme – the same document VW gives to dealership techs before they touch the car. Every page focuses on system operation, component location, and the engineering logic behind the design. Part I covers the 1.8-ltr. 110 kW 5 V-turbo engine. Part II covers modifications to the 1.8-ltr. 92 kW engine for Model Year 98. If you are rebuilding an older OCTAVIA, you need both halves. The section on turbocharging (page 12) breaks down the turbocharger, boost pressure control, and fuel shut-off on overrun. Wastegate troubleshooting becomes a logic problem instead of a guessing game.

Why Factory Documentation Beats Aftermarket Copies

I have seen aftermarket manuals that claim to cover the OCTAVIA but omit the CAN BUS section entirely. The factory training manual includes a full Function Diagram on page 21, Cruise Control System on page 24, Emission Control System on page 26, and Self-Diagnosis on page 27. The electric accelerator pedal (page 28) and CAN BUS (page 30) sections are essential if you are diagnosing drive-by-wire faults. Aftermarket publishers often lift these diagrams from older PDFs and lose resolution. This is the original VW Group file – clean scans, every line legible. No one has rewritten the text to fit a template. It is the source material. For related self-study programmes, check out the VW Fabia Training Manual – 1.4L 16V Engine Engineering and Systems and the VW LT2 Training Manual – 2.8L TDI Common Rail Self-Study Programme.

Does the Manual Cover Cruise Control and Self-Diagnosis?

Yes. The cruise control system is described on page 24 with the components and signals. Self-diagnosis (page 27) covers fault code reading and control module communication via the OBDII port. If you have a Motronic M3.8.3 (with cruise control), the manual explains the differences. For DIYers who own a VAG-COM cable, this section saves hours of trial-and-error. It tells you which sensors the ECU monitors and how the system checks itself after a repair. Without this, you risk clearing codes without understanding the root cause.

3 Systems Worth Studying Before You Tear Into the Engine

First, the Variable Intake Manifold (page 32). This changes runner length for torque optimization. If you are swapping to a bigger turbo, you need to understand the geometry to avoid interference. Second, the Sensors section (page 16 and 35 – yes, there are two sensor pages, one per engine part). The manual lists each sensor’s location and signal type. Third, the Actuators (page 20) – including the wastegate regulator and fuel injector timing. The VW Passat Training Manual – W8 Motronic ME 7.1.1 Explained covers a similar engine management system. I cannot count how many blown engines I have seen because someone upgraded the turbo without adjusting the actuator maps. The training manual gives you the theoretical base to make informed choices.

Check the Function Diagram on Page 21 for Electrical Troubleshooting

The Function Diagram is a wiring schematic that shows how the engine control unit interacts with every sensor and actuator. If you are tracing a no-start condition on a 1.8T, start here. It shows which pins on the ECU connect to the fuel pump relay, the ignition coils, the boost pressure sensor. Cross-reference with the CAN BUS section (page 30) to understand how the engine management talks to the transmission and ABS modules. For broader context on automotive network protocols, see the Automotive Industry Overview on Wikipedia. If you are also working on the transmission, the Manual Transmission article provides fundamental principles. This is not a repair manual – but it is the prerequisite for any serious electrical diagnostic work on an OCTAVIA.

FAQ

Is this a repair manual?

No, it is a self-study programme for understanding engine operation and systems.

What torque specs are listed?

This training manual does not provide repair torque values; it focuses on engineering principles. For torque specs, you need the factory workshop manual. However, it gives critical technical data like the engine’s maximum torque output of 210 Nm (155 lb-ft) at 1750-4600 rpm. That number tells you the clamping load the engine is designed for, which helps when selecting head bolts or main cap bolts. Also, the compression ratio of 9.5:1 informs your choice of head gasket thickness. But again, you need the separate workshop manual for specific fastener torques.

If you are serious about working on a VW OCTAVIA with a 1.8T engine, this 34-page training manual is the starting point. It will not teach you how to rebuild the bottom end, but it will give you the engineering knowledge to avoid the mistakes that come from guessing. Access the Factory Manual now and study the system before you turn the key.
