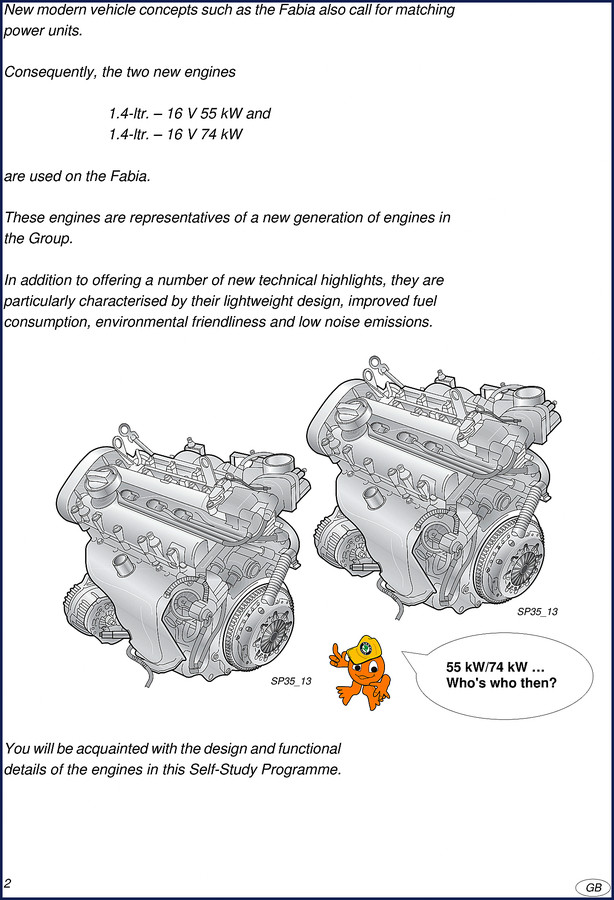

VW Fabia Training Manual

If you’re working on a VW Fabia Training Manual with the 1.4L 16V engine – either the 55 kW or 74 kW version – and you’re trying to figure out why that check engine light is on, you need more than a generic code list. You need the factory training material. This is a 50-page training manual, not a full workshop manual, but it gives you the engineering logic behind the systems. I’ve seen too many guys chase their tails on these engines because they don’t understand the subtle differences between the plastic and metal intake manifolds or the two different engine management strategies. That’s where this manual pays for itself.

Engineering: The 1.4L 16V Engine Technical Data

Technical data on page 4 lists the compression ratio at 10.5:1, torque at 126 Nm (about 93 ft-lb), and bore/stroke of 76.5 mm / 75.6 mm. Two engine codes: AUA (55 kW at 5000 rpm) and AUB (74 kW at 6000 rpm). Both are 4-cylinder inline with 1390 cc displacement. The fuel requirement differs – AUA runs on 95 RON unleaded (91 possible with reduced output), AUB needs 98 RON (95 possible). That matters when you’re diagnosing a pinging issue. The training manual lays out these specs exactly as VW engineers wrote them. No aftermarket interpretation.

Engine Mechanical Components: Intake Manifold Differences

For the 55 kW engine, the intake manifold is plastic. For the 74 kW, it’s die-cast aluminum. The throttle valve cross-section is smaller on the 55 kW. If you’re swapping parts or chasing an air leak, you need to know which one you’ve got. The manual covers the components installed at the intake manifold – you can’t guess this stuff from a generic scan tool. Also worth noting: the oil pan on the 55 kW is sheet steel, while the 74 kW uses aluminum with an integrated engine-gearbox support. That affects replacement procedures.

Fuel Supply System: Injection and Lambda Control

The training manual’s Fuel Supply System section (page 22) describes the Magneti Marelli 4LV multipoint fuel injection. One lambda probe upstream of the catalytic converter, another downstream. That’s the setup for EU4 emissions. Knock control uses one knock sensor. Ignition is a rotorless high-voltage distribution with two double-spark coils. If you’re trying to understand why your Fabia is running rich or misfiring, the system overview on page 28 gives you the full Function Diagram. No other aftermarket manual will walk you through the logic chain like this.

Exhaust System and Emission Control

Exhaust system coverage on page 26 details the exhaust gas recirculation (EGR) system and emission controls. The manual explains how the EGR works to reduce NOx for EU4. If you’re getting a P0401 code, the training manual tells you the theory – not just “clean the EGR valve” but how the system is supposed to behave. Combined with the Self-Diagnosis section (page 47), you can trace the fault systematically. For a broader view of modern automotive engineering, check Automotive Industry Overview.

Self-Diagnosis: Factory Testing Procedures

Pages 47 and 49 cover self-diagnosis and a “Test Your Knowledge” section. This is where the training manual separates itself from a parts list. You learn the expected values and the diagnostic strategy that VW technicians use. That’s why I tell DIYers to pick this up before diving into repairs. Beginners especially need to understand that a check engine light isn’t a bolt-on fix. If you need a diesel counterpart, look at VW LT2 2.8L TDI Engine with Common Rail Injection Training. Or for more on the Passat family, Passat W8 Engine Management Motronic ME 7.1.1 Manual covers a different system. For the Octavia turbo, Self Study Programme OCTAVIA 1.8 L 110 kW Turbo Engine is available.

Source Validity: OEM Training vs Aftermarket

This is a VW Group Self-Study Programme – the exact document used to train factory technicians. It’s not a reprinted, third-party compilation. The 50 pages are original, with diagrams and explanations written by VW engineers. I’ve seen aftermarket books that try to cover the Fabia, but they miss the targeted detail on the 1.4L 16V engines. For general understanding of how manual transmissions relate to these powertrains, see Manual Transmission. But for the Fabia’s specific fuel, engine, and emissions systems, this training manual is the real deal.

Does this manual include torque specs for the cylinder head?

No. It is a training manual intended to teach system operation, not a workshop manual with repair procedures.

How does the fuel supply system handle lambda control on the 74 kW engine?

The 74 kW (AUB) engine uses Magneti Marelli 4LV multipoint injection with a lambda sensor upstream of the cat and a second downstream for monitoring. The training manual explains how the control unit adjusts fuel trim based on these readings, and it covers the knock sensor strategy and ignition coil operation. This allows you to understand the root cause of many driveability issues without guessing which sensor to replace first. The system overview diagram ties it all together on page 28.

If you’re serious about diagnosing or maintaining a VW Fabia with the 1.4L 16V engine, don’t waste time on generic guides. Access the Factory Manual and study the engineering that makes these engines tick. It’s 50 pages, no filler, and every word came from VW.
