VME 380B 1992 Parts Catalog – OEM Parts Identification

Description

You have a VME 380B wheel dozer down and need a final drive seal kit. You pull the old part number off the housing, call your supplier, and get a box that doesn’t match. Wrong revision, wrong spline count, wrong everything. That’s what happens when you rely on aftermarket cross‑reference databases. This VME 380B 1992 Parts Catalog is the factory document that eliminates that gamble. 647 pages, original OEM print, covering every part group for the 380B with CUMMINS 813A, 813B, and 813BC engines.

How to Use the VME 380B 1992 Parts Catalog

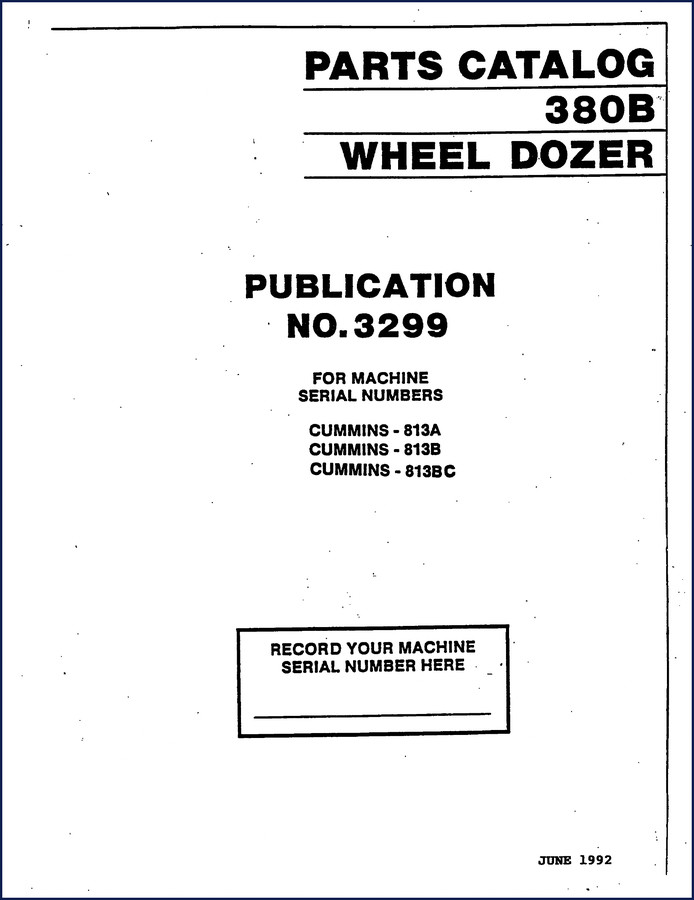

Flip to the inside cover and you’ll see the serial number recording block – JUNE 1992 publication. The pages are arranged by group numbers in consecutive order. There’s an alphabetical index up front to locate the group you need, and a numerical index in the rear that gives you a direct part number lookup. Each page carries an issue date at the bottom: the first three digits show revision level, the last two show original release date. A separate page explains the symbols used throughout. Illustrations are typical examples – they show you which bolt goes where, but don’t rely on them for assembly sequence. That’s not what a parts catalog is for. You order by part number, description, and quantity. Give the distributor your model and serial number. That’s it.

Engine and Powertrain Coverage for the 380B

This catalog breaks down the entire machine into mechanical groups. It starts with the engine group for the CUMMINS 813A, 813B, and 813BC. You get the cylinder head, fuel system, turbocharger, and oil pan with individual part numbers. The transmission and torque converter section is separate, as are the final drives, brakes, and steering. Need a steering control valve seal kit? The group number for hydraulic controls will get you to the right illustration and part callout. Because the manual is from 1992, it captures the exact parts used on machines built in that era. Aftermarket gears or bearings may interchange on paper but fail in the field because the metallurgy or tolerance is off. This catalog removes that risk.

Why OEM Parts Matter for the VME 380B

VME states it on page two: “VME encourages the use of Original Equipment Replacement Parts and the experienced Service Know‑How available through our distributors.” That’s not marketing – that’s a safety and reliability directive. I’ve seen too many aftermarket brake discs warp because the friction material spec didn’t match the OEM calibration. The 380B is a big machine; a brake failure on a grade can kill someone. Using the factory part number from this catalog ensures you get the right hardness, the right bolt grade, the right fit. Aftermarket catalogs often combine multiple revisions into one listing. This manual keeps them separate. If your machine has serial number range 813A, you get the parts for that build.

Who Needs This Manual

If you own a VME 380B, run one in a fleet, or work on them at a repair shop, this catalog saves you phone calls and returns. The alphabetical index covers everything from air cleaner to wheels. The numerical index lets you type in a part number from the old one you pulled off and confirm it supercedes correctly. Home‑garage enthusiasts who tackle their own heavy equipment repairs will appreciate that you can look up the exact bolt, O‑ring, or seal without fishing through online forums. The pages are clean, the illustrations are clear (no fuzzy third‑party scans), and the part numbers are the ones VME stamped into the steel. Check out related manuals: VME L480B 1994 Parts Catalog – OEM Factory Parts Manual, VME L320 1993 Parts Catalog – 557-Page OEM Factory Manual, and VME L190B 1991 Parts Catalog – OEM Factory Parts Manual. For a broader view of the industry, read the Automotive Industry Overview and Automotive Industry Overview for context on heavy equipment manufacturing.

Frequently Asked Questions

Does this catalog include torque specifications for the 380B?

No. This is a parts catalog, not a service manual. It lists individual replaceable parts and their group numbers. You will not find torque values or assembly steps here.

Will this manual work for a 380B with a different engine?

The catalog covers CUMMINS 813A, 813B, and 813BC serial number ranges only. If your machine has a different power plant, the engine group sections won’t apply. Chassis groups like final drives and steering may still match.

Can I use the illustrations to reassemble the transmission?

No. The illustrations are typical examples to locate and identify parts. They are not assembly diagrams. VME explicitly warns against using them as a guide for assembly. Get the separate service manual for that job.

How do I know if a part number has been superseded?

Each page has a revision date at the bottom. If a later revision was issued after 1992, it won’t appear here. For supersession history, contact a VME distributor with your serial number.

If you need the right part the first time, this is your kit. Access the Factory Manual.
