VME L480B 1994 Parts Catalog

I’ve seen too many guys pull a part number off a third‑party site, slap it on, and wonder why the axle seal leaks two months later. That’s the kind of job that costs you a Saturday and a customer’s trust. The VME L480B 1994 Parts Catalog is what you put on the workbench when you want the number that matches what Volvo BM, Michigan, or Euclid shipped from the factory. 514 pages. Real part numbers. No translation errors from a parts counter in another country.

Now, I know what you’re thinking: “It’s a parts catalog, not a service manual.” That’s true, and I’ll tell you straight – this thing won’t walk you through a transmission rebuild. But if you’re ordering parts for an L480B front axle, parking brake, or any of the assemblies on pages 1 and 2, you need this. The factory corrections notice from Virginia M. Abner (03/07/94) tells you exactly which pages to update in your existing catalog – A06‑1, B06‑2, B06‑3, B06‑4, and B13‑1. If you’re running an earlier print of publication 6316697714, those inserts keep your parts book accurate. Otherwise, you’re ordering blind.

L480B Parts Catalog Corrections: Inserting the Factory Update

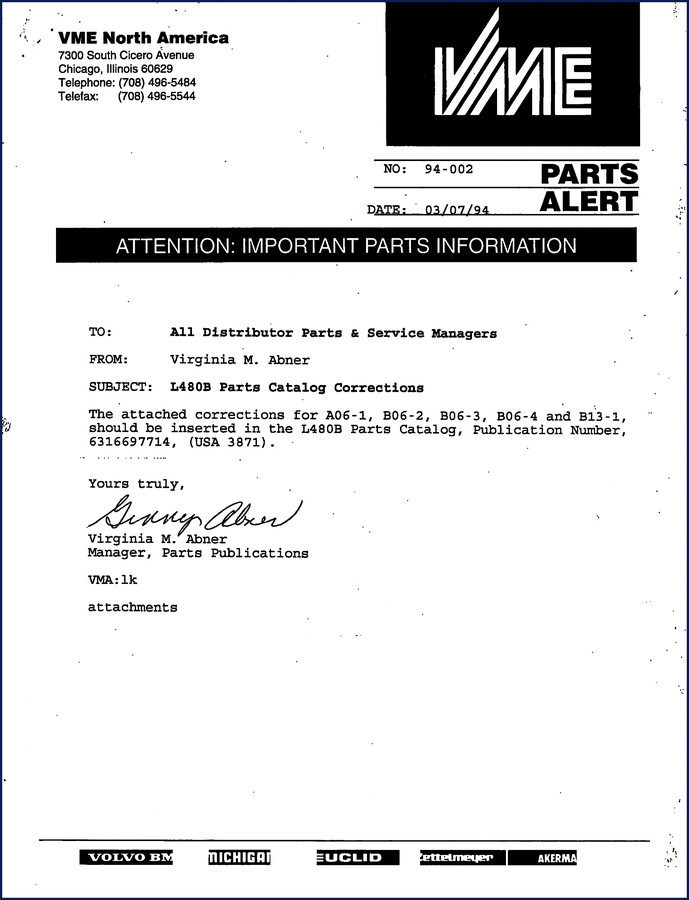

Look at the OCR excerpt from page 1. That’s a VME North America parts alert, direct from the Chicago office at 7300 South Cicero Avenue. They tell you to insert corrections into the existing L480B Parts Catalog. That means this PDF isn’t a reprint of the original – it includes the official field update. You’re not stuck trying to guess which revision you have. The page numbers and callouts match exactly what VME published. If you’re maintaining a fleet of L480B machines, this one document keeps your parts ordering accurate.

Axle Assembly Front: Part Numbers and Torque Specs

Page 2 gives you the complete front axle assembly breakdown (A06‑1). You’ll see the axle assembly (part no. 12582575), hub and cup assembly (312974785), and the planet carrier assembly. Need the oil seal? That’s item 23, part no. 12974783. The catalog lists every screw, washer, shim, and cone in the axle. It even shows the shim options (1119294, 1119295, 1119296) for setting preload – but don’t expect torque values here. This is a parts book, not a service manual. Pair it with the VME L320 Wheel Loader Parts Catalog Publication No.3912 or the VME Parts Catalog L190B Wheel Loader Publication 3736 for other models in the same family.

Why 514 Pages Matter for This Machine

Five hundred and fourteen pages might sound like overkill for a parts catalog, but the L480B is a heavy‑duty wheel loader used in construction, mining, and material handling. Every assembly – from the front axle to the parking brake, steering system, and hydraulics – gets its own section. The part numbers are laid out in a column format with English, French, German, Spanish, and Portuguese descriptions. That multilingual documentation reduces the risk of ordering the wrong seal because someone read “capa” instead of “cup.” I’ve seen that happen. Twice.

Does This Manual Cover Only the Axle?

No. The scan shows the front axle because that’s the most commonly ordered section, but the catalog covers the whole machine: engine mounts, transmission, final drives, brakes, electrical, frame, and attachments. The index follows the VME numbering system, so if you know the assembly number (e.g., A06 for front axle, B13 for cab components), you can jump straight to the page. VME 380B Wheel Dozer 1992 Parts Catalog uses a similar structure, but the L480B parts are unique. Don’t cross‑reference unless you’re sure the part supersedes.

Get the Right Part Number the First Time

The biggest waste of time in any shop is re‑ordering because you trusted a generic cross‑reference. This catalog gives you the OEM number – period. You don’t need to call the dealer and wait on hold while the counter guy hunts for supersessions. The corrections insert on page 1 ensures you have the latest revision, so you’re not grabbing a part that was obsolete in 1995. For context on why OEM documentation matters across all vehicle types, see the Automotive Industry Overview and Automotive Industry Overview for broader standards.

FAQ

Does this catalog include torque specifications for axle bolts?

No. This is a parts catalog, not a service manual.

I have an L480B with a front axle leak. How do I find the correct seal part?

Turn to page 2 in this catalog. Look for the axle assembly front section (A06‑1). Item 23 is the oil seal, part number 12974783. The illustration also shows the inner seal (item 21, 12974781) and outer seal (item 22, 12974782). Cross‑check the O‑ring (item 11, 119802) if the leak is at the hub. Order all three if you’re doing a full seal job – they’re cheap compared to a second teardown. The catalog lists shim sets too; you might need them if the old bearings left wear marks on the spindle. Always compare the existing part to the picture before ordering – aftermarket catalogs sometimes flip the orientation.

You’ve got a machine that needs parts, and you want them right. Access the Factory Manual for the VME L480B 1994 Parts Catalog and keep it in your electronic library or print the correction pages for your binder. Either way, you stop guessing on part numbers.
