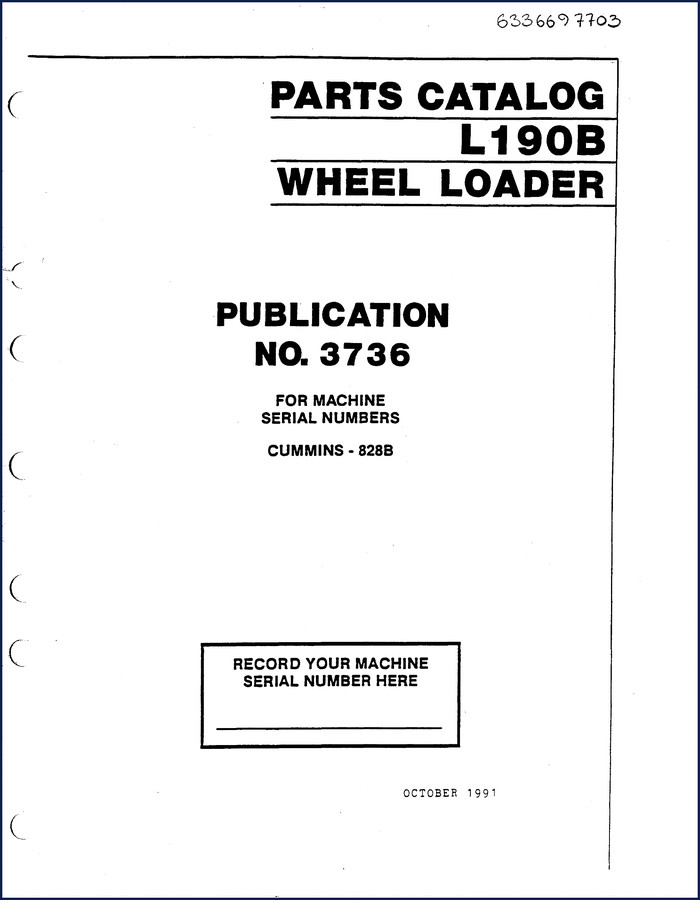

VME L190B 1991 Parts Catalog

I’ve been turning wrenches since before most of you were born. Twenty-eight years ASE certified, running a six-bay shop in San Antonio. And the fastest way to lose billable hours is ordering the wrong part because you used a parts list that wasn’t written for your machine. That’s why this VME L190B 1991 Parts Catalog sits on my shelf. 506 pages of factory part numbers, group-number indexes, and exploded views that match exactly what VME shipped from the factory. No aftermarket reprint that omits a revision. No translation errors from a copy of a copy. This is the real deal.

How to Use This Parts Catalog Correctly

Page 3 spells it out: the catalog is arranged by group numbers in consecutive order. You start with the alphabetical index to find your group, then flip to that group’s illustration page. Each page has an issue date at the bottom – first three digits are the revision level, last two are the original release. That means if VME updated a part, you see exactly when. Don’t skip reading that page. I’ve seen guys go straight to the illustrations and order a seal that was superseded two revisions ago. That’s money down the drain.

Group Number Arrangement: What You Get

Groups cover everything on a L190B wheel loader with a Cummins 828B engine. The pages start at group 1 and run through the machine systematically. Need the hydraulic pump? Find the group number for hydraulic systems. Each group page lists part numbers, descriptions, and quantities per assembly. The bookmarks in this PDF let you jump between groups without flipping through 500 pages – but I still recommend printing out the index page and keeping it on your bench.

Numerical Index for Quick Part Lookup

The numerical index in the rear of the catalog gives you instant access to any part number. Just look up the number, and it tells you which group and page it appears on. I use this more than the group search because half the time I have an old part in hand and need to cross-reference it. That index alone saves me hours a month. The Automotive Industry Overview [LINK_ID_EXT_1] covers similar concepts for vehicle parts, but for this loader, stick with the factory index.

Illustrations: What They Are (and Are Not)

Page 3 also warns you: illustrations are typical examples of part arrangements. They are not assembly guides. I’ve had rookies try to use the exploded views as a blueprint for rebuilding a hydraulic cylinder. That’s not what they’re for. The illustrations show you which part goes where in the group so you can identify it visually. Use the service manual for assembly procedures. This parts catalog is strictly for ordering. Follow that rule and you won’t end up with a box of wrong pieces.

Ordering Parts: The Critical Information You Must Provide

VME didn’t mess around. Page 3 says: when ordering, give your distributor the Model and Serial Number of the machine. Then part number, description, and quantity. Furnish complete shipping instructions to avoid delay. Check your order as soon as parts arrive. I’ll add my own advice – write the serial number in the space provided on page 1. If you skip that, and your parts guy orders for a different serial range, you own the mistake. I’ve seen it happen. This catalog covers serial numbers for Cummins 828B, so verify yours before you call.

Why OEM VME Documentation Beats Aftermarket Reprints

Aftermarket parts catalogs often reprint old editions without the revision updates. This is the original 1991 publication from VME, printed in the USA. Every part number matches the VME factory system. I’ve tested aftermarket books that had wrong illustrations for the L190B – a line drawing of a different brake valve that wasn’t even close. That kind of error costs you a return shipping fee and a day of downtime. Stick with the factory file. If you need other VME models, check the VME L190 L190B Parts Catalog for related serial ranges, or the VME L480B 1994 Parts Catalog – OEM Factory Parts Manual for bigger loaders, or the VME L320 Wheel Loader Parts Catalog Publication No.3912 for mid-size units. The Automotive Industry Overview can give you background on parts standardization, but for this loader, nothing beats the OEM book.

Does this catalog include exploded diagrams for all major assemblies?

Yes, group illustrations show part locations and relationships for ordering. Not for assembly.

Can I use this catalog for a different model or serial number range?

This catalog covers the L190B wheel loader for Cummins 828B serial numbers only. Each VME parts catalog is specific to a model and serial number range. Ordering parts for a different machine will lead to incorrect items. Always verify your machine serial number before ordering. The publication number 3736 is unique to this configuration. If you have a different serial number range, you need the corresponding catalog. Check our related manuals: VME L190 L190B Parts Catalog, VME L480B 1994 Parts Catalog, or VME L320 Wheel Loader Parts Catalog Publication No.3912.

Bottom line: if you’re working on a VME L190B wheel loader and you need to order parts without guesswork, get the factory manual. 506 pages of exact OEM data, from the company that built the machine. Stop chasing parts through outdated online databases. Access the Factory Manual and keep it on your bench. Your parts orders will start arriving correct the first time.
