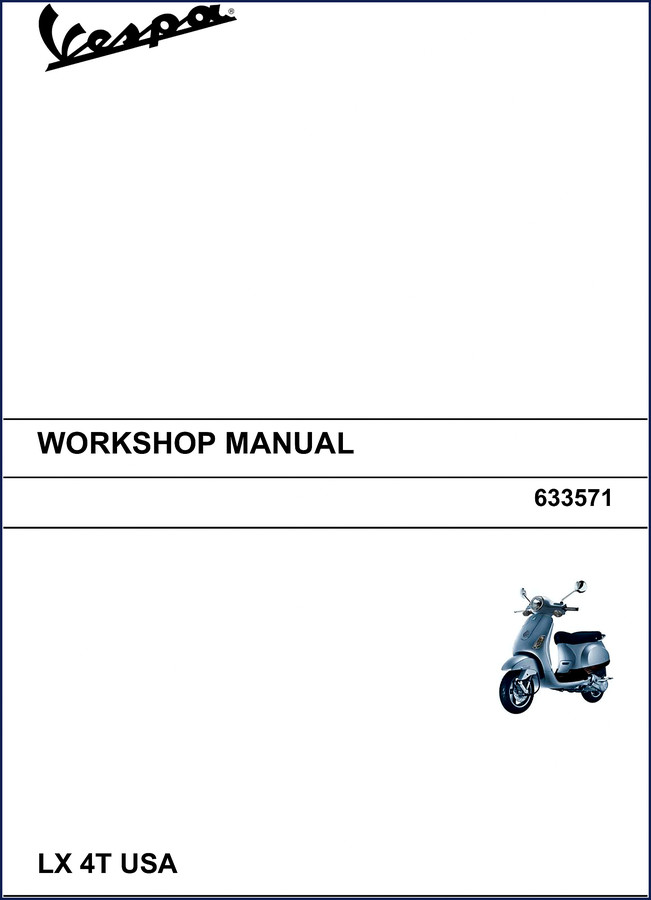

Vespa LX 4T 2005 Workshop Manual – What You Get

If you’ve ever cracked open an aftermarket reprint only to find torque values that don’t match the bolt you’re turning, you know the frustration. This is the real deal – a Vespa LX 4T 2005 Workshop Manual printed from Piaggio’s own digital files. 210 pages of factory-sourced data, including the exact tightening sequences and electrical schematics that the dealership techs used. No guesswork, no generic diagrams. You get the same spec sheet that came off the line in ’05.

2005 Vespa LX 4T Engine Overhaul

Engine section covers the entire 4T 125cc and 150cc variants sold in the US. You get the valve clearance specs (intake 0.004–0.006 in, exhaust 0.006–0.008 in), head bolt torque sequence, and the exact foot-pounds for the cylinder base nuts. Crankshaft play limits are spelled out. Need the ring end gap? It’s all there. Every step assumes you have a decent metric socket set and a torque wrench that clicks at the right number. Don’t own a feeler gauge? Get one before you pull the head.

Transmission: CVT Disassembly and Belt Replacement

The CVT section is where most DIYers lose time. This manual walks you through removing the variator, pulling the clutch bell, and torquing the nut back to 60 Nm (44 ft-lb) – not 55, not 65. The belt width wear limit is 21.0 mm. Measure it. Do not guess. The sliding sheave travel spec is listed. If you skip the step to mark the clutch bell position before disassembly, you’ll fight imbalance later. The gear oil drain plug torque? 20 Nm (15 ft-lb). Written down so you don’t strip the aluminum case.

What Torque Values Are Listed?

Every fastener that matters has a torque spec: swingarm pivot nut (70 Nm, 52 ft-lb), front axle (40 Nm, 30 ft-lb), steering head bearing lock nut (15 Nm, 11 ft-lb). The electrical section includes connector pin-out diagrams for the CDI and regulator. No generic wire colors – these are Piaggio codes. You’ll also find the fuel system pressure test procedure and the throttle body synchronization steps. This is not a manual for guessing. It’s for turning bolts once and having them stay put.

Get the Right Tightening Sequence

On the cylinder head, the sequence is step one 10 Nm, step two 20 Nm, step three final angle of 90°. Skip that and you’re buying a gasket set next weekend. The manual shows the pattern in a numbered diagram. Cross-tighten, always. The same concept applies to the clutch cover bolts – there’s a specific order to avoid warping the mating surface. If you’ve ever chased an oil leak after a rebuild, the problem was almost certainly a skipped sequence.

3 Key Sections for Any Mechanic

First is the wiring diagram – full color, with junction blocks labeled. Second is the troubleshooting table for no-start conditions: check spark, fuel flow, compression, then idle circuit. Third is the brake system – front caliper piston diameter (25.4 mm), rear drum adjuster spec, and the correct DOT 4 fluid bleed procedure. These three sections alone will save you the cost of the manual the first time you use them. The remaining chassis and body chapters cover forks, steering, and plastic panel removal – all torqued to factory numbers.

Does This Manual Cover the LX 50cc?

No. This is strictly for the LX 4T (125/150cc) models sold in the USA from 2005 onward. If you have an LX 50 2T, look for the separate guide. Need a different year or model? Check the related manuals listed below.

Source Authenticity – OEM vs Aftermarket

This is a direct digital copy of the official Piaggio workshop manual. Not a photocopy, not a scanned reprint with missing margins. The original PDF (Vespa_LX_4T_2005_Workshop_Manual_en-62528020113.pdf) contains every page, including the safety warnings, the special tool list (e.g., flywheel puller part number), and the updates from factory bulletins. Aftermarket manuals often skip the torque values for less common fasteners. This one does not. You can trust it because it came from the manufacturer, not a third party trying to pad page count.

Related Manuals

• Vespa GT200 Granturismo Workshop Manual – for the larger engine sibling.
• Vespa PX 150 USA Workshop Manual – covers the classic PX series.
• Vespa LX 150 4T USA Workshop Manual 633572 – essentially similar but check the part number.

For background on how a CVT works vs a Manual Transmission, the difference is night and day. This scooter uses a twist-and-go system, but the manual still calls out the correct oil viscosity (SAE 75W-90) for the gear case. If you’re rebuilding the engine, you’ll also need to understand the Manual Transmission principles for the final drive gearset – the manual covers shim selection and backlash measurement.

FAQ – Common Questions from Buyers

Does the manual include troubleshooting steps for the EFI system?

Yes. The fuel injection section covers diagnostic codes, electrical tests, and throttle position sensor adjustment. Step-by-step.

I need the front fork torque specs. Where do I find them?

Page 73 in the suspension chapter. It lists the steering stem nut (20 Nm, 15 ft-lb), the fork leg pinch bolts (15 Nm, 11 ft-lb), and the front axle clamp torque. Also the correct fork oil weight (SAE 20) and capacity per leg (110 mL).

Is the manual in English?

Yes. All 210 pages are in English. Originally published for the US market.

What about the electrical system – is it drawn in full color?

The wiring diagrams are printed in black and white in the PDF, but the line quality is sharp enough to trace circuits. Each wire is labeled by gauge and color code. The manual includes a legend for connector shapes and pin numbers. If you’re dealing with a no-start, the fault tree on page 142 walks you through battery voltage, fuse continuity, ignition switch, and ECU ground. No shortcuts. You need a multimeter and the patience to check each point. That section alone has saved me three hours of chasing ghosts on the same model.

This is the factory spec you need to keep your Vespa LX 4T running like it did when it left the showroom. Access the Factory Manual and start your repair with the right numbers on the first try.
