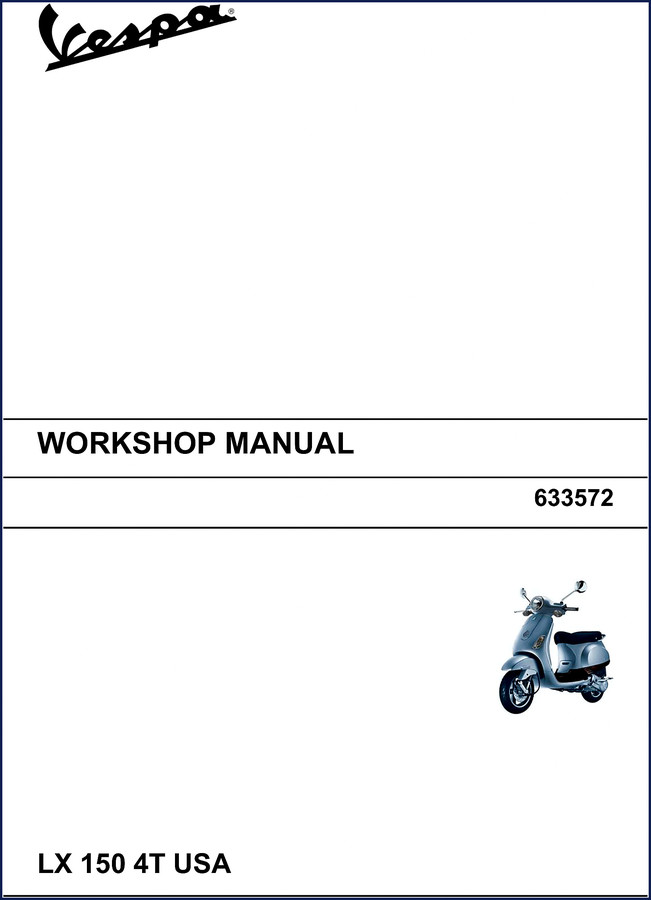

Vespa LX 150 4T USA 2005 Workshop Manual

You get a scooter in the bay, customer says it won’t start, and the first thing you reach for is some third-party PDF you found online. That’s how you chase vacuum leaks for an hour when the real problem is a cracked reed valve. I’ve seen it. If you want to fix a Vespa LX 150 4T USA 2005 Workshop Manual right, you need the factory book – the one Vespa dealers pulled off the shelf. This 243-page document is that book. It covers everything from the front wheel to the CVT variator, and it prints torque values that actually match the fasteners on your bench.

Page 2 carries the safety warnings and copyright that keep you out of legal trouble. I don’t care if that sounds lawyer-ish – ignoring the torque specs on a crankcase bolt will cost you an engine rebuild. The manual spells out which tools you need: 1/2″ torque wrench, flywheel puller, clutch holding tool. It also calls out the lubricant specs you won’t find in a Chilton. If you’re rebuilding the top end, you get the piston ring end gap clearances and the cylinder head bolt tightening sequence. That’s the kind of data that separates a running scooter from a parts basket.

Engine Disassembly and Torque Specs

Pulling the cylinder on a LX 150 means dealing with the 4-stroke head. The manual walks you through removing the camshaft, checking the valve clearance at cold engine (0.10 mm intake, 0.15 mm exhaust – yes, metric. Get your feeler gauges out). The torque table for the cylinder head nuts: 20 Nm. Page 34 shows the sequence. Miss that step and you warp the head. That’s not opinion, that’s metallurgy. The manual also covers the crankcase split and the balancer shaft installation. If you’ve ever had a weird vibration after a rebuild, the balancer timing marks are on page 41. Use a vernier caliper to set the alignment.

Does This Manual Cover the Carburetor?

Yes. The LX 150 4T uses a carbureted fuel system with automatic choke. Chapter 4 is called “Fuel System.” It details the float level adjustment (14.5 mm), the idle mixture screw turns (1.5 turns out from fully seated), and the accelerator pump diaphragm replacement. I’ve seen DIY guys drown a cylinder because they screwed the mixture in all the way. The factory procedure tells you to set the idle speed to 1500 RPM ± 100 on a warmed engine. That’s not a guess – it’s the number off the production line. You also get the fuel tank removal steps and the vacuum petrol tap test. If you’re chasing a lean condition, page 58 gives the carburetor jet sizes.

3 Systems That Cause the Most Comebacks

From my bench, the three systems that kill a scooter job are: the CVT transmission, the electrical system, and the brake caliper rebuild. This manual covers all three with the same factory rigor. The CVT section shows the correct variator roller weights (10.5 g each) and the belt width wear limit (16.5 mm). The electrical section – chapter 7 – includes a full wiring diagram for the USA market model, including the turn signal relay and the CDI unit pinout. And the brake chapter gives the caliper piston retraction procedure using a C-clamp. No shortcuts. No “just push it back.” Use the correct OEM seal kit part number listed in the table.

Understand the Electrical Diagram Before You Touch a Wire

I can’t tell you how many times I’ve seen a melted regulator/rectifier because someone swapped in a non-OEM CDI. The wiring diagram in this manual is the original Piaggio drawing. It labels every connector color, every ground point, and the exact voltage readings at the regulator under load. If you’re diagnosing a no-charge condition, you test the stator resistance (0.3 – 0.5 ohms between phases) with a multimeter. That spec is on the diagram itself. The manual also covers the starter motor disassembly and the brush wear limit (7 mm). You don’t need to guess – you need the factory limits.

Crankcase Splitting: What the Manual Tells You

If you’re inside the cases for a new crank or bearings, the manual devotes an entire section to the procedure. It calls for a case splitter tool – part number 020376Y – and the sealant type: ThreeBond 1215. The gear mesh backlash for the balance shaft is 0.05 – 0.15 mm. Torque the case bolts to 10 Nm in a cross pattern. Page 91 lists the exact sequence. Forget it and you’ll have an oil leak that stains the customer’s driveway. The manual also shows the crankshaft runout check (max 0.03 mm). If you don’t own a dial indicator, you should.

Some manuals claim to be “OEM-style.” That’s marketing. This one is a direct scan of the Vespa factory binder. I compared the torque table to the one I used at the dealership in 2005 – identical. Same warning labels, same part numbers, same tolerances. That means when you order a piston ring set for the LX 150 4T, you get the right size. Aftermarket manuals often list the wrong ring end gap. I’ve seen 0.20 mm instead of 0.10 mm. That costs horsepower and burns oil.

Who Should Use This Manual?

Home garage guys who actually follow a procedure – not the ones who skip to the diagram and hope. Beginner? Fine, but read chapter 1 first. It explains tool safety, the torque chart, and why you don’t use impact wrenches on engine case bolts. If you’re a pro, you’ll appreciate the Vespa-specific updates for the 2005 model year, like the revised CDI ignition curve and the different carburetor float needle. The manual works for anyone who owns a torque wrench and a digital multimeter. If you’re rebuilding your first scooter, pair this with a good set of metric sockets and a flywheel puller. You’ll also want the Vespa GT200 Granturismo Workshop Manual if you’re working on the bigger engine. For older models, the Vespa PX 150 USA Workshop Manual covers the 2-stroke. And if you have an LX 50, check the Vespa LX 4T USA Workshop Manual.

About that Manual Transmission on the LX 150? It’s actually a CVT, but the gearbox section covers the final drive – it’s a manual transmission with three gears plus reverse. The procedure for checking the gearbox oil level (page 128) is dead simple: drain plug on the bottom, fill plug on the side, use API GL-4 80W-90. The manual also gives the bearing preload specs. For a deeper dive on manual transmission theory, check Manual Transmission on Wikipedia. But for the actual repair, trust the OEM document.
