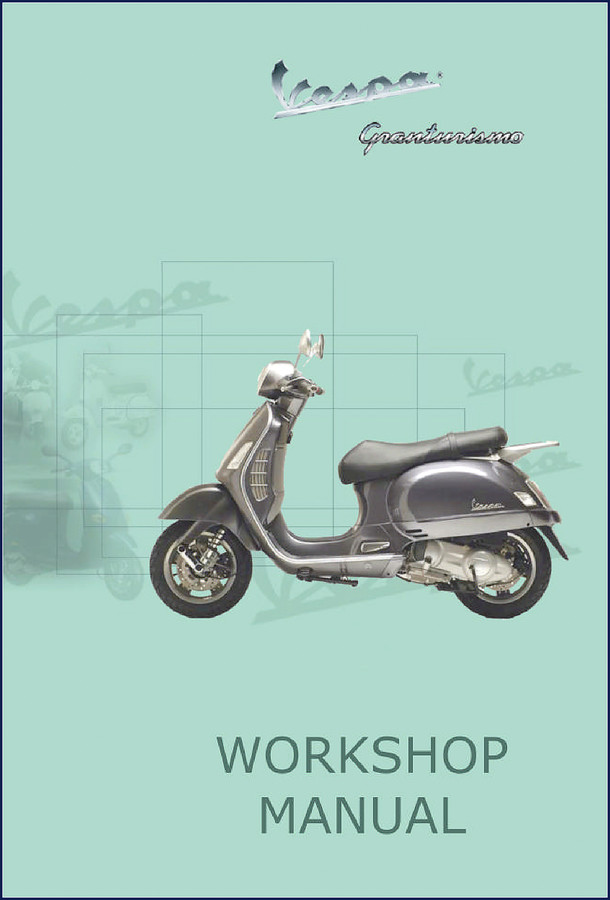

Vespa GT200 Workshop Manual – Factory Specs for the Granturismo

If you’ve ever tried to rebuild a GT200 with a generic aftermarket PDF, you know the drill: torque values that match nothing on your torque wrench, wiring diagrams drawn by someone who’s never seen a Vespa, and clearance specs that leave your piston slapping the cylinder. I’ve been turning wrenches for 28 years. I don’t guess. Neither should you. This is the real factory Vespa GT200 Workshop Manual – direct from Piaggio’s engineering department. 287 pages, no reprints, no third-party copy.

Workshop Safety and Service Recommendations

Page 17 opens with safety. Real safety. Not the generic “wear eye protection” line. Section 2.1.1 covers workshop safety specific to scooters: fuel system precautions, battery venting, and lifting points. Right after that, 2.1.2 gives service recommendations – what to clean, what to replace without question, and what fluids to use. Section 5 on page 36 lists the recommended lubricants by brand and grade. No guesswork. If you’re working on a downed scooter in a home garage, this is the difference between a solid rebuild and a call to your local shop for a tow.

Vespa GT200 Workshop Manual: Engine and Carburetor Details

The engine section (page 20) breaks down the 198 cc four-stroke unit. Two carburetors appear in the manual: the Walbro (section 2.4.2) and the Keihin (2.4.3). Each gets its own tuning procedures, float height specs, and jetting tables. You also get the compression ratio limiting shimming system (page 33) – critical if you’re reassembling a top end and don’t want to bend a valve. The manual walks through piston–cylinder mating clearance on page 31. That’s the kind of spec that decides whether your scooter runs for 100 miles or 10,000. For riders considering other Piaggio platforms, check the Vespa PX 150 USA Workshop Manual or the Vespa LX 4T USA Workshop Manual.

What Torque Values Does Section 3 Cover?

Tightening Torques – page 25 through 30. Thirteen subsections. Steering unit, frame, front suspension, front brake (page 26), rear suspension, rear brake, silencer, hydraulic components, cylinder head (page 28), Transmission (page 29), flywheel, engine crankcase and shaft, cooling. Every value is there in Nm. If you’ve ever stripped a brake caliper bolt because a Chilton manual said “tighten securely”, you’ll appreciate having the factory number. The Vespa GT200 workshop manual also includes assembly clearances (section 4) – crankshaft end-play, alignment, O-ring sizes. This is where the aftermarket manuals start lying. This one doesn’t.

Special Tools: Over 50 Factory-Listed Items

Section 6 catalogs 55 special tools, from the steering bearing seat installer (001330Y) to the gas analyzer (494929). You don’t need to own all of them, but knowing which part numbers the factory uses lets you buy or fabricate the right equivalent. For the home mechanic, the clutch drum lock wrench (020423Y) and flywheel extractor (08564Y) are nearly mandatory. The manual also specifies the digital multimeter (020331Y) and timing light (020330Y) – so when you’re checking spark advance (page 68), you’re using the right gear. If you’re newer to scooters, the Vespa LX 150 4T USA Workshop Manual 633572 uses the same diagnostic approach.

Follow the Maintenance Schedule in Section 7

Page 52 lays out the maintenance schedule. Every interval – oil changes, hub oil (page 61), brake fluid (page 63), spark plug (page 55), air filter (page 56), cooling liquid (page 62). Each procedure has step-by-step instructions with the required torque and fluid type. The section on hub oil replacement (page 61) is especially important – the GT200’s Transmission lives in the hub, and using the wrong grade of oil kills the variator. For general information on how manual transmissions work, see Manual Transmission – but for the GT200, stick to the factory spec.

Electrical System: What’s Covered

The Electrical components are listed on page 23. The manual covers the CDI unit, starter motor, rectifier/regulator, and the entire wiring harness. You get the multimeter adapter procedure (page 45) and battery charger specs (pages 42). For a scooter that’s been sitting, the charging system test is page 41 with the timing light. If you’ve ever had an intermittent spark that drives you crazy, this manual shows you exactly where to measure voltage. Understanding the electrical system also helps when you’re comparing to other Vespa models – the LX 150 shares similar architecture but different connector pinouts.

One more thing: the manual covers the steering lock removal procedure (section 7.9 – pages 65–66). That’s a common pain point on Granturismo models. If the lock jams in the “OFF” or “LOCK” position, the factory steps prevent drilling the frame.

Does this manual cover the full wiring diagram for the GT200?

Yes. Section 2.7 (page 23) lists all electrical components. The full wiring schematic is included in the 287 pages. You’ll need it for the ECU and starter circuits.

Can I use this manual for a Granturismo 200 with the 4-valve engine?

That is the exact bike. The GT200 Granturismo uses the 198 cc 4-stroke with either the Walbro or Keihin carburetor. This workshop manual covers both carb variants, the chassis, brakes, suspension, and all electrical systems. If you have the 4-valve head, the cylinder head torque specs on page 28 are correct – do not use the values from the older PX manuals. The compression ratio shimming system on page 33 is specific to the GT200. For general transmission theory, you can check Manual Transmission but don’t trust any other torque spec.

Bottom line: If you’re working on a Vespa GT200 and you don’t have the factory specs, you’re guessing. Guessing costs time, parts, and sometimes your scooter. Access the Factory Manual from AutoRepairManuals and get the 287-page OEM document that Piaggio engineers wrote for their own techs. It’s the same book they use in the dealerships. No aftermarket copy. No missing pages. Just straight factory data.
