Takeuchi PC3 Parts Catalog – 207 Pages of Factory Part Numbers

I’ve lost count of how many times a guy orders a part, gets it, and it doesn’t fit because he pulled the number off an aftermarket site or a worn decal. Then the machine sits dead for three days. You’re bleeding billable hours. The Takeuchi PC3 Parts Catalog stops that nonsense cold. This is the exact document the dealer uses to look up parts. No translations, no guesswork—just factory exploded views with the part numbers right below them.

207 Pages of Verified Takeuchi Parts Breakdowns

Every page in this 207-page Parts Catalog is laid out the same way: the top half is an exploded diagram, the bottom half is the parts list. Item numbers, part numbers, descriptions, quantities, and a column for serial number applicability. None of that “compatible with” garbage. You get the exact Takeuchi part number for your machine based on the serial number range. Need a new track roller? Turn to the UNDERCARRIAGE section. Crawler belt? Right there. The manual even tells you which page shows the general arrangement so you can orient the exploded view correctly.

UNDERCARRIAGE: Crawler Belt, Track Roller, and Track Adjuster Numbers

This section covers the lower frame, crawler belt, track roller, front idler, track adjuster, travel device, dozer blade, and lower piping. Each component has its own sub-section with multiple exploded views. For example, the TRACK ADJUSTER page lists the adjuster assembly, seals, and the grease fitting part number. If you’re replacing a track roller, you need the correct roller assembly and the bolts. The manual shows which bolts—and they’re not all the same size. Don’t guess; use the part number from this catalog.

Engine & Electrical System Coverage: 10 Sections for Engine Acc., Control Box, and Wiring

Two dedicated sections for Engine & Acc. 1 and 2, then the CONTROL BOX, ENGINE CONTROL, and multiple ELECTRICAL sub-sections. Electrical 1, Electrical 2, Electrical 3(CAB), Electrical 3(CAB) again (yes, there are multiple sheets for cab variants), Electrical 4(CNP), and even an ELECTRICAL 1 FOR AUSTRALIA. If you’re chasing a short in the harness, you need the correct routing and connector part numbers. The Engine section includes starting motor and generator breakdowns. Electrical diagrams show individual wire connectors and sockets. No aftermarket schematic will match the factory pinout.

Does the PC3 Parts Catalog Include Exploded Views for the Hydraulic Device?

Absolutely—and that’s where most aftermarket catalogs fall apart. The HYDRAULIC DEVICE chapter covers the swivel joint, control valves 1 and 2, pilot valve, sub valves, solenoid valve, stop valve, shut-off valve, selector valve, all cylinders (boom, arm, bucket, dozer blade, swing, spanner, telescopic), travel motors (six separate sheets!), slew motors (nine sheets!), and the hydraulic pump. Every single one has an itemized parts list with Takeuchi part numbers. You want to rebuild a travel motor? You need the seal kit and the bearing part numbers. This catalog gives you those.

Verify Serial Numbers Before Ordering – Instructions Inside

The first two pages of this manual tell you exactly why writing down your machine serial number matters. It shows a blank for recording machine serial number, engine serial number, and delivery date. Then it explains how to read the parts list—including the column for “Serial No.” which indicates which serial numbers a part applies to. I’ve seen guys order a boom cylinder for a PC3 with serial number 1153001- when the machine is actually 1158122, and the cylinder changed halfway through production. This manual catches that. It even notes which parts are not sold separately (marked with an “x” in the part number column).

HOE ATTACHMENT: Telescopic Arm and Bucket Variations (JPN, USA)

Separate listings for buckets for Japan, USA, and standard. The TELESCOPIC ARM section lists every pin, bushing, and seal. If you’re retrofitting a different bucket, you need the correct linkage parts. The piping sections—PIPING: HOE 1, PIPING: HOE 2 (AUX. LINE), and PIPING: HOE 3 (TELESCOPIC)—show the hose routing and fitting part numbers. Don’t mix up JIS and metric fittings; the manual tells you which is which.

DECAL & TOOL: Why Correct Decal Part Numbers Matter for Safety

Decal sheets for multiple languages: English, German, French, Italian, Japanese, and even for E.U. models. Safety decals are critical—if you replace a cab door and need the “crush hazard” decal, it’s listed here. Paint color codes are also provided for JPN and standard. The TOOL section lists the special tools you need for disassembly. No more “use a hammer and a prayer.”

You want a reliable parts source for your Takeuchi PC3? This catalog is the same one the dealer uses when you call them for a part. It’s 207 pages, direct from Takeuchi, with engine and electrical breakdowns that aftermarket reprints butcher. See related manuals: Takeuchi TL26 Parts Catalog – 288 Page OEM Factory Manual, Takeuchi TL150 Parts Catalog – 599-Page OEM Exploded Views, Takeuchi TL140 Parts Catalog – 457 Pages of OEM Parts Indexing. For broader context on construction equipment parts sourcing, check Automotive Industry Overview and Automotive Industry Overview.

What serial numbers does this Takeuchi PC3 Parts Catalog cover?

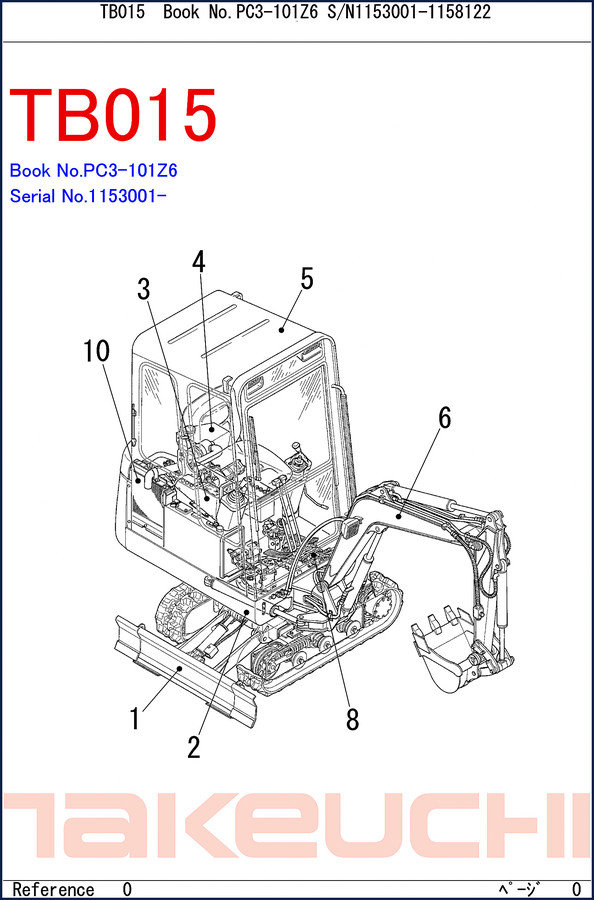

It covers serial numbers from 1153001 upward, as noted on the cover: “S/N1153001-1158122”. Always check the serial number prefix before ordering.

Are the exploded diagrams in color?

No, they are black-and-white line drawings. But they’re crisp enough to read part numbers clearly. Color would be nice, but Takeuchi prints them this way for clarity and cost.

Does this manual include torque specifications for bolts?

No. This is a parts catalog, not a service manual. It lists the part numbers for bolts, but not torque values. You’ll need the separate service manual for torque specs. But with the correct bolt part number, you can order the right grade and length.

How do I find the part number for a hydraulic pump for the PC3?

Go to the HYDRAULIC DEVICE section, then HYDRAULIC PUMP. The exploded view shows the pump assembly and all internal components. Locate your item number in the parts list below. Each item has a Takeuchi part number. Verify your machine serial number against the “Serial No.” column to ensure you get the correct pump variant.

Look, I don’t care if you’re a weekend warrior with a mini excavator or a fleet manager with a dozen PC3s—this catalog will save you from ordering the wrong part twice. I’ve been wrenching for 28 years, and I keep the factory parts catalog on my tablet for every machine we touch. Access the Factory Manual, print the pages you need, and stop wasting money on returns.
