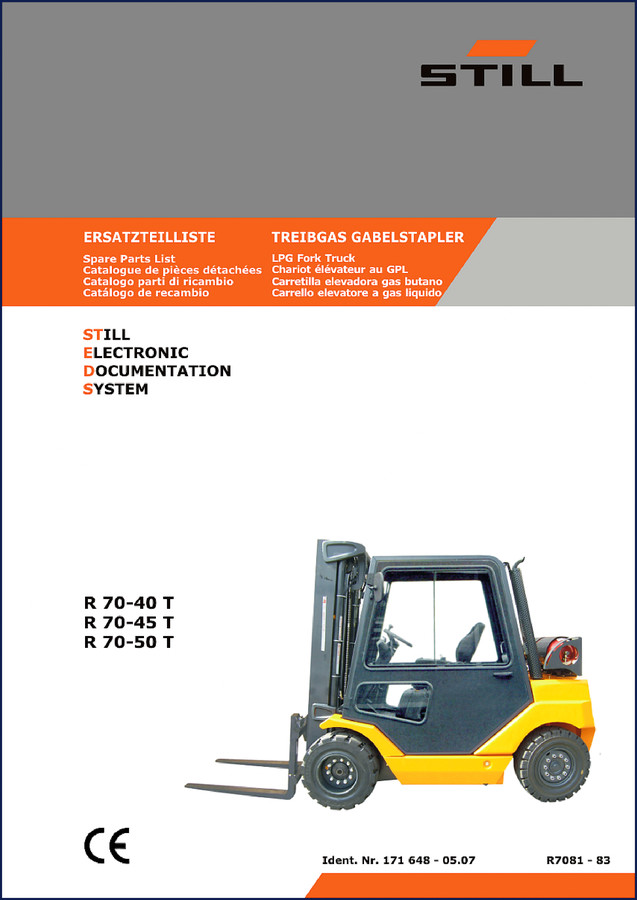

Still R 70-40 T, R 70-45 T, R 70-50 T 2016 Parts Catalog – OEM Part Numbers

Description

I’ve been turning wrenches since before most of you were born, and I’ve seen more aftermarket parts lists that had wrong numbers than I’ve had hot meals. When you’re ordering a piston ring or a gasket for a Still R 70-40 T, R 70-45 T, R 70-50 T 2016 Parts Catalog, you need factory data. One wrong digit and you’re waiting another week for the right part while the forklift sits idle. This 2558-page catalog is what Still put together for their own dealers. It’s not a reprint. It’s the original.

LPG Engine Breakdown (R7081-83)

Open to the IC Engine section and you’ll find the LPG engine pages broken down by BMF engine variants. Each component—from the pulse generator to the motor assy for air conditioning—is listed with a figure number, part number, quantity, and validity notes. Page 2 of the PDF shows the full chapter list: PRODUCT INFORMATION, ELECTRIC MOTOR, IC ENGINE, IC ENGINE AUXILIARY PARTS, right down to SPECIAL EQUIPMENT NARROW AISLE TRUCKS. You won’t find that kind of indexing in a third-party knockoff. The internal combustion engine is covered with specific sub‑sections for the LPG system, exhaust, and cooling. The data matches what Still ships to their service centers.

What Does the 2558-Page Parts Catalog Cover?

Page 4 starts the VEHICLE DOCUMENTS section—R7081-83 documentation, options, and the product information you need before you even touch a wrench. From there the catalog walks you through every system: MECHANICAL DRIVE AXLE with left and right drive wheel units and brake groups (functional group 226), CHASSIS with counterweights and floorplate variants, STEERING, BRAKES, CONTROLS, ELECTRONICS, HYDRAULICS, and the load lifting system. There’s even a section on TRAILER COUPLING with Rockinger part numbers. It’s a complete spare parts list, not a repair manual—but if you know the part you need, this is the only source that guarantees the fit.

MECHANICAL DRIVE AXLE – Drive Wheel Units and Brakes

Aftermarket catalogs often merge left and right wheel units into one generic assembly. Not this one. The Still catalog separates left and right drive wheel units, each with its own brake assembly listed under functional group 226. The Gear Drive section even includes a REORDER note for part 0172185. If you’ve ever had a customer’s forklift sit because the aftermarket list showed a universal brake kit that didn’t clear the motor housing, you’ll appreciate the factory breakdown. Detailed exploded views show every nut, seal, and bearing in the drive unit assy.

Still R 70-40 T, R 70-45 T, R 70-50 T 2016 Parts Catalog: Engine and Drive Sections

This catalog covers all three model variants—R 70-40 T, R 70-45 T, R 70-50 T—with model-specific validity columns. The engine section alone runs dozens of pages, including the BMF LPG engine variations, conversion kits for beverage versions, and retrofit kits for different gas bottle connections (Antargaz, Primagaz, Totalgaz, English). You also get the LPG system installation complete with intake module assy and chassis module assy. When the shop foreman asks why you ordered the wrong water pump, hand him the page with the correct suffix. That’s the difference between OEM and aftermarket.

3 Sections You Will Use Repeatedly

First, the LPG SYSTEM under IC ENGINE AUXILIARY PARTS—includes conversion kits for 2‑bottle and 70‑L reservoir setups, plus retrofit lists for four different gas bottle connection standards. Second, the ELECTRICS; ELECTRONICS section, which covers the display element and control electronics. Third, the WORKING HYDRAULICS and VALVE chapters—critical for lift and tilt repairs. Each part number is tied to a figure reference, so you can visually confirm the component before ordering. If you need a related manual, check out Still RC 40-16 2013 Parts Catalog – OEM Spare Parts List”>Still RC 40-16 2013 Parts Catalog or the Still R70-16T, R70-18T, R70-20T 2016 Parts Catalog – OEM”>R70-16T series catalog. For a larger capacity, there’s Still R60-35, R60-40, R60-45, R60-50 2016 Parts Catalog – 2889 Pages”>Still R60 series catalog.

Source Validity: Why OEM Still Documentation Matters

You can find ten different websites offering “compatible” parts lists for the R70 series. Every one of them has at least one mistake. I don’t trust aftermarket documentation on principle, and neither should you. This catalog carries the Still Electronic Documentation System branding, with Ident. Nr. 171 648 – 05.07. It’s the same PDF that a Still dealer accesses on their service laptop. For background on internal combustion engine fundamentals, see the Internal Combustion Engine”>Internal Combustion Engine overview on Wikipedia. For broader industry context, Automotive Industry Overview”>Automotive Industry Overview shows how OEM documentation drives modern repair reliability.

Is this Parts Catalog the same as a service repair manual?

No. It lists parts numbers, not repair procedures.

Does it cover the LPG fuel system in detail?

Yes—the LPG SYSTEM section runs multiple pages covering installation, module assemblies, conversion kits for beverage versions, and retrofits for different gas bottle connections (Antargaz, Primagaz, Totalgaz, English). The exploded views show every hose, valve, and bracket.

Can I use this catalog to order parts for my R 70-50 T?

Yes. The catalog includes validity columns that specify which part numbers apply to R 70-40 T, R 70-45 T, and R 70-50 T models. For example, the COUNTERWEIGHT section lists separate part numbers for R7081, R7082, and R7083 chassis. You need to match the last three digits of your truck’s serial number to the R7081-83 range printed on the data plate. If your forklift falls within that range, every part number in this catalog is correct as of the 2016 publication date. Still updated the documentation for the R70 series multiple times, so the 2016 version supersedes earlier paper manuals.

What years and models does this catalog include?

2016 publication for R 70-40 T, R 70-45 T, R 70-50 T LPG forklifts.

Get the exact numbers. No guesswork. That’s what this 2558-page document delivers—every Still part number, diagram, and revision note from the factory. If you maintain or repair these LPG trucks professionally or in your own shop, having the OEM parts catalog on your tablet or phone saves you the phone call to the dealer and the three-day wait on the wrong bearing. Access the Factory Manual from AutoRepairManuals and keep it in your tool kit.
