Sandvik HYDRAULIC TB BOOM 2005 Operators Manual – Factory Specs for the Workbench

nn

You’ve got a Sandvik TB boom that’s creeping, or the feed moves backward when you’re drilling. Your first instinct might be to grab a generic manual. Don’t. I’ve seen more booms torn apart from wrong torque specs than from wear. This OEM Sandvik HYDRAULIC TB BOOM 2005 Operators Manual – 61 pages of factory procedures – is what you need on the bench. No aftermarket reprints. No guesses.

n

Safety First: Section 1 of This 61-Page Manual

n

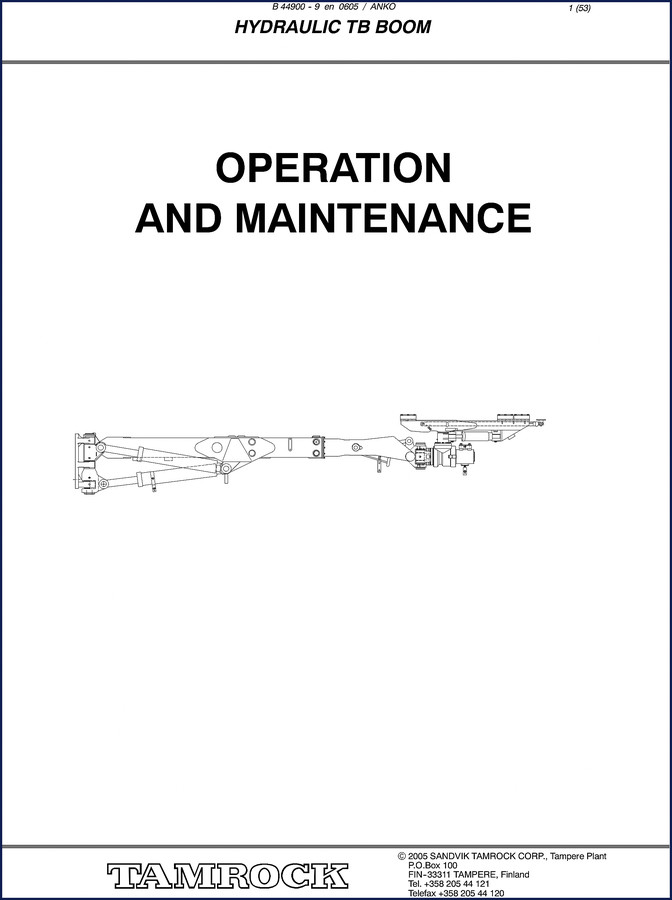

Start with section 1. Sandvik puts safety right up front for a reason. The manual covers lockout/tagout procedures, proper lifting points, and the hydraulic pressure relief steps you must follow before any disassembly. Skip this and you’re gambling with 3,000-psi hydraulics. Page 1 shows the copyright and revision – this is a 2005 Tamrock publication, not some copied PDF.

n

Boom Clearance Checks: Adjusting the Inner and Outer Tube

n

Section 5 breaks down the clearance inspection between the boom inner and outer tube. You need feeler gauges and a torque wrench. The manual specifies the exact clearance range and the bolt tightening pattern for the slide plates. Overlooking this step causes the boom to bind under load, ruining the slide plates and scoring the inner tube. Section 5.2 covers wiper replacement – a cheap fix that prevents grit from entering the boom assembly.

n

What Torque Values Does This Manual Cover?

n

Page 15 lists the tightening torque for the feed cradle bolts – that’s a spec you will not find in a aftermarket repro. This manual also covers the mechanical locking pin torque (section 7.1) and the cylinder pin checks. A torque wrench is required; the values are in ft-lbs. I’ve had to re-torque booms that came from shops using a breaker bar and ‘feel’ – that costs you a feed cradle.

n

Rotary Actuator: Bleeding and Assembly Instructions

n

Section 9 gives the operating principle of the rotary actuator – a component that stumps most techs. The manual includes mounting steps, taking into use, and the bleeding procedure (section 9.3). If the actuator isn’t bled correctly, the boom rotation becomes spongy or fails entirely. Section 10 provides disassembly and assembly instructions with the correct seal orientation. Use these, not a memory from three jobs ago.

n

Troubleshooting: Common Hydraulic Problems

n

Section 13 lists 8 specific faults: all functions slow, feed moving backward during drilling, automatic parallelism failure, boom creeping, rotation not working, etc. Each has a cause-and-cure table. For example, ‘Feed moves backwards during drilling’ points to the feed tilt cylinder overcenter valve or pilot pressure issues. After you read the troubleshooting, jump to section 15 (THC Hydraulic) or section 16 (TPC Hydraulic) to check control panel settings and boom circuit pressures. Understanding load-sensing hydraulics is key – review Hydraulic systems for fundamentals if needed. This manual assumes you know the basics; it gives you the machine-specific data.

n

Sandvik HYDRAULIC TB BOOM 2005 Operators Manual: Content Overview

n

This 61-page operators manual covers two major sections: ‘BOOM – Operation and Maintenance’ (pages 1–53) and ‘HYDRAULIC CYLINDERS – Repair and Adjustment’ (pages 54–61). The boom section includes dimensions and technical specifications (section 3), checking cylinder pins (section 7), operating principle of rotary actuator (section 9), flushing and bleeding the boom hydraulic circuit (section 11 – lift circuit, swing circuit, rotary actuator, feed tilt/swing cylinders), and maintenance greasing points (section 12). The cylinder section details dismantling, assembly, and testing of the lift and swing cylinders, including overcenter valve inspection. Unlike generic aftermarket manuals that treat every machine like a Manual Transmission, this Sandvik manual is specific to the TB boom.

n

Source Validity: OEM Factory Documentation

n

This is a direct, digital reproduction of the original 2005 document published by Sandvik Tamrock Corp., Tampere Plant. The page headers read ‘B 44900 – 9 en 0605 / ANKO’ – that’s the factory part number. Compare that to a third-party manual that reprints the same generic diagrams for every model. I don’t trust aftermarket documentation on principle; they often omit critical safety notes or misprint torque specs. This one came from the manufacturer. Period.

n

Related Manuals

n

n
• Sandvik LH203 2010 Operators Manual – Factory Specs & Safety

n

• Sandvik QI240 Operators Manual – 258 Pages Factory Safety & Operations

n

• Sandvik QA451 Operator’s Manual

n

n

n

Does this manual include the rotary actuator bleeding procedure?

n

Yes, section 9.3 covers bleeding. It’s critical after assembly.

n

How do I adjust the clearance between the boom inner and outer tube?

n

Section 5.1 details the adjustment procedure. You’ll need feeler gauges, a torque wrench calibrated in ft-lbs, and the exact clearance specs from the manual. The procedure involves loosening the slide plate bolts, adjusting the inner tube position, then retightening to the specified torque in a specific pattern. If you skip this step or guess the clearance, the boom will bind, causing uneven wear on the slide plates and possibly damaging the inner tube coating. That’s a costly repair. Follow the factory specs exactly.

n

What torque values are specified for the feed cradle bolts?

n

Section 7.2 on page 15 gives the tightening torque for the feed cradle bolts. Use a calibrated torque wrench. Don’t guess.

n

Is this manual suitable for the THC hydraulic system?

n

Yes, sections 15 and 16 cover the THC and TPC hydraulic control panels, including pressure adjustments and control block settings. The manual includes hydraulic diagrams for the THC, TPC, and DATA systems. If you’re having boom movement issues, start with the troubleshooting in section 13 and then refer to the corresponding hydraulic section to check pressures. Aftermarket manuals often skip these details. The diagrams show exact port labeling and test points. You cannot get that from a generic manual. This is Sandvik’s own documentation.

n

n

The factory manual belongs on your workbench. Access the Factory Manual now and stop relying on internet forum guesses.
