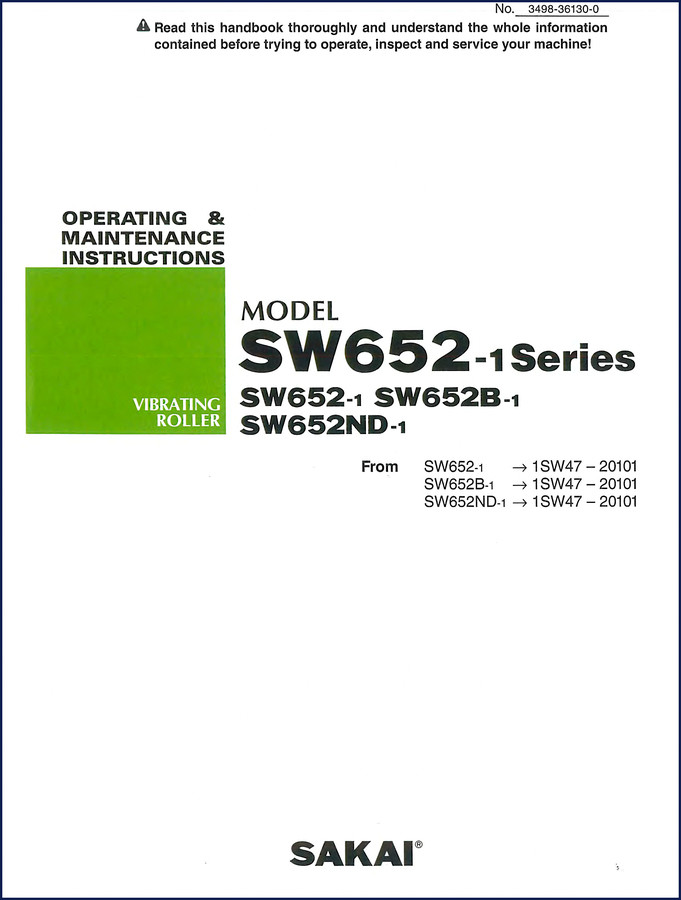

Sakai SW652-1, SW652ND-1, SW652B-1 Operators Manual – Factory Specs

I hear the same complaint from guys who run rollers: “The manual that came with the machine is useless – half of it is in generic pictures, and the torque specs are missing.” That’s why you need the Sakai SW652-1, SW652ND-1, SW652B-1 Operators Manual from the people who built the machine. Not a third-party reprint. Not a PDF scraped from some forum. This is the 94-page factory document that Sakai wrote for the operator. It tells you where the engine serial number is stamped, how to read the gauges, and what to do before you hit the starter.

Let me walk you through what’s inside.

Safety Notices: Not a Suggestion

Section 1 of this manual runs from basic precautions to specific decals. Page 4 starts with general safety – and I mean real detail, not the lawyer-talk you see in aftermarket junk. It covers preparation for safe operation, what to check before starting the engine, and how to handle the battery without shorting terminals. The SAKAI safety decals are listed with their locations on the machine. If you’re training a new operator, this section alone is worth the price.

Before You Crank That Engine

Page 7, section 1.3: “Before Starting the Engine.” Glow plug preheat, engine oil level, hydraulic oil level – these are the checks that keep a roller running instead of sitting with a seized pump. The manual specifies engine coolant capacity in gallons and tells you which SAE oil grade to use. You won’t find that in a generic operator handbook. This is the factory recommendation, tested on the SW652-1, SW652ND-1, and SW652B-1.

Instruments and Controls: What Each Lever Does

Section 2.1 breaks down the operator station. Gauges, indicator lamps, warning lamps – each one labeled with its function. The unloader valve gets its own subsection on page 28. I’ve seen rollers get stuck out in a pit because the operator didn’t know the unloader lockout. This manual explains it. Also covers the fuse box layout and the scraper adjustment procedure. If you’re swapping a scraper, page 30 shows you the bolt pattern and how to keep the drum clean.

Daily Maintenance: What You Check Every Shift

Section 3 (starting around page 32) lists the daily maintenance steps: engine oil level, air filter restriction indicator, tire pressure for the carrier wheels, grease points, and the vibration system hydraulic filter. The manual gives you the schedule in hours and the specific grease type. My shop uses this to build our PM checklists. No guesswork – just open to the page and follow the list. The rear engine identification numbers are printed in the front matter, so when you order parts you can match the serial to the exact variant.

Towing and Loading: Never Skip This Section

Sections 1.6 through 1.9 cover loading, unloading, towing, and transportation. This is where people get hurt. The factory procedure for disengaging the brake when towing (page 31) includes the specific pin location and the maximum tow speed. They also tell you how to secure the roller on a trailer – chain hooks and tie-down points. If you ever move this machine between sites, you need these pages. I’ve seen a roller tip off a trailer because the operator guessed the center of gravity. The manual shows it.

Need the wiring diagram? The cause isn’t in this operator manual – that’s in the separate service manual. But for the daily grind of operating and maintaining your Sakai, this is the document. The engine manual is separate, but the operator manual references it and tells you when to consult it.

One more thing: the aftermarket manuals I’ve seen for these rollers copy the pictures but leave out the spec tables. This printing is direct from the factory – the numbers are correct. Don’t risk a stripped thread or a battery fire because you trusted a reprint.

Frequently Asked Questions

Does this manual cover the SW652B-1 with the Isuzu engine?

Yes, the SW652B-1 is listed in the title and throughout the sections. The engine-specific data is in the separate engine manual, but all roller operations and maintenance are identical.

Can I use this for the SW652ND-1 if the serial number starts with “ND”?

The manual covers both SW652ND-1 and SW652-1. The machine and engine identification numbers on page 2 show where to find your serial prefix. If your serial matches the range listed, the manual fits. I have one open in my print shop right now – the ND variant is covered in the same sections. The only difference is the unloader valve spring set, which is noted on page 28. If you need further confirmation, check your original machine plate against the table on page 2. If it’s not there, contact Sakai directly. But for 99% of the machines out there, this is the correct operator manual.

I’ve been turning wrenches for twenty-eight years. I don’t waste time on manuals that make me guess. This Sakai operator manual gives you the facts – page numbers, fluid capacities, safety warnings, and daily checklists. If you run these rollers, you need this on your tablet or in the cab. Access the Factory Manual now and keep your operation running.
