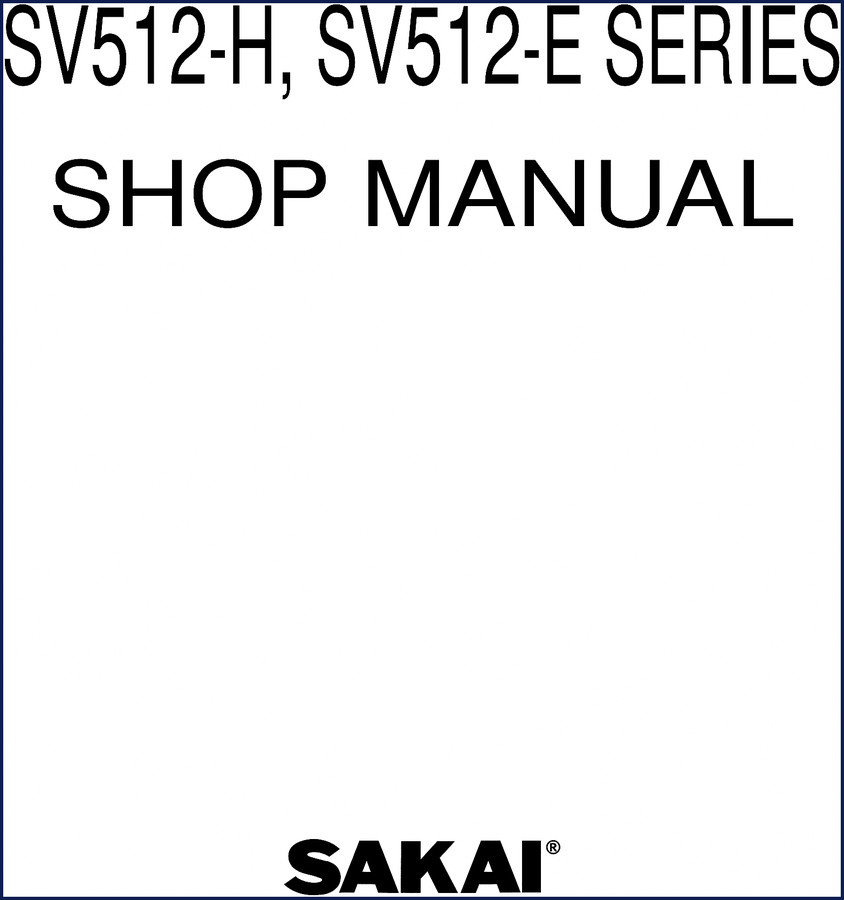

Sakai SV512-H, SV512-E Workshop Manual – Factory Specs for Your Roller

If you own a Sakai SV512-H or SV512-E roller compactor and you’re working without the factory shop manual, you’re gambling with time and money. I’ve seen too many guys spend half a day chasing a hydraulic leak because they guessed at a fitting torque. This 226-page Workshop Manual is what you need bolted to the bench. It’s the same book Sakai sends to their dealers, not some aftermarket rewrite full of generic specs that don’t match your machine. You want the real thing? This is it.

Safety comes first in any shop. Section 1 covers pre-start inspection, signal words like DANGER and WARNING, and qualifications for maintenance personnel. Page 1-001 kicks off the safety section. Ignore that and you’re asking for a hydraulic spray in the face or worse. The manual spells out safety practices and policies for transporting, starting, operating, and stopping the machine. Every tech who touches this roller needs to read this chapter before turning a wrench.

SAFETY Section: Pre-Start Inspection and Signal Words

The first section is not filler. It explains the difference between a warning and a caution and lists exactly what to check before you fire up the engine. Pre-start inspection includes fluid levels, loose hardware, and safety equipment. If you skip this on a rental machine or a unit that’s been sitting, you deserve what you get. The manual also covers maintenance safety, like blocking the machine before crawling under it. Page 1-001 starts this chapter, and it’s the first thing I tell any new guy to read.

226 Pages of Factory Data

This Sakai SV512-H, SV512-E Workshop Manual runs 226 pages. That’s enough room to cover six variants: SV512D-H, SV512T-H, SV512TF-H, SV512D-E, SV512T-E, and SV512TF-E. The specifications section (starting chapter 2) gives you engine specs, propulsion data, hydraulic system settings, steering and brake specifications, and fluid capacities. You get the OEM numbers, not guesses from a forum. The fuel and lubricants specification table tells you exactly what oil to use and its rating. No more wondering if 15W-40 is right for your climate.

Does This Manual Cover the SV512-E Variants?

Yes. The table of contents lists separate entries for each H and E variant under specifications. The E models get the same treatment as the H models – engine, propulsion, hydraulic, steering, brake, and capacities are all spelled out. You don’t have to wonder if the torque specs changed between models. The manual lists them side by side so you can look up the exact machine you’re working on. If you need the dimension and weight data, it’s in the same section. No separate supplement needed.

Get the Right Torque Specs from the Tightening Torque Chart

Page 2-017 holds the tightening torque chart. This is the page you’ll dog-ear. Every fastener on this roller has a spec – bolts, nuts, hydraulic fittings. Aftermarket charts are wrong often enough that I’ve had to redo jobs. This chart is from Sakai’s engineering. If you’re installing a hydraulic pump or bolting the engine mounts, use these numbers. The manual also includes a warning about using a torque wrench with the right range. Don’t use a ½-inch drive for 20 ft-lb bolts. I’ve seen it happen. Follow the chart.

Engine and Controls: Inside Section 3

The engine and controls section (chapter 3) covers the powerplant itself. The manual does not list every detail in the TOC, but you get removal and installation steps, disassembly, inspection, and reassembly of the engine. This section works with the specs from chapter 2 to give you bore and stroke data, compression pressures, and valve clearances. If you’re rebuilding the engine, you’ll need both chapters open. The manual also touches on the Manual Transmission for the propulsion system, though the main focus is the engine and its controls. For general background on gear types, check the Manual Transmission article, but this manual gives you the factory procedure for the Sakai-specific unit.

You might also be working on other Sakai rollers. The Sakai SW300 Workshop Manual – Factory Specs for Vibrating Roller Repair”>Sakai SW300 Workshop Manual – Factory Specs for Vibrating Roller Repair covers the smaller model. For the mid-range, the Sakai SV400, SV400TS Workshop Manual – Factory Specs for Roller Compactors”>Sakai SV400, SV400TS Workshop Manual – Factory Specs for Roller Compactors is a good complement. And if you’ve got the SV500 series, you’ll want the SAKAI SV500 Series Vibrating Roller Shop Manual”>SAKAI SV500 Series Vibrating Roller Shop Manual instead. Different machine, different specs.

Is this manual suitable for a beginner?

If you can read a torque wrench, yes. Start with the safety section.

Does it include wiring diagrams?

The table of contents lists ENGINE AND CONTROLS section, but there is no separate electrical chapter explicitly. However, the manual covers the engine control system and hydraulic controls. For a detailed wiring schematic, you may need the separate electrical manual. But this workshop manual gives you the mechanical procedures and specs.

What engine is covered?

The specifications section includes engine specifics, but the exact engine model is not listed in the TOC. Likely it’s a diesel engine common to Sakai rollers. The manual provides all service limits and tolerances.

Can I use this for the SV500 series?

No. Get the SAKAI SV500 Series Vibrating Roller Shop Manual for that.

Don’t waste time guessing. Get the factory data on your bench. Access the Factory Manual.
