Sakai SV512D-H, SV512DF-H, SV512T-H, SV512TF-H Operators Manual

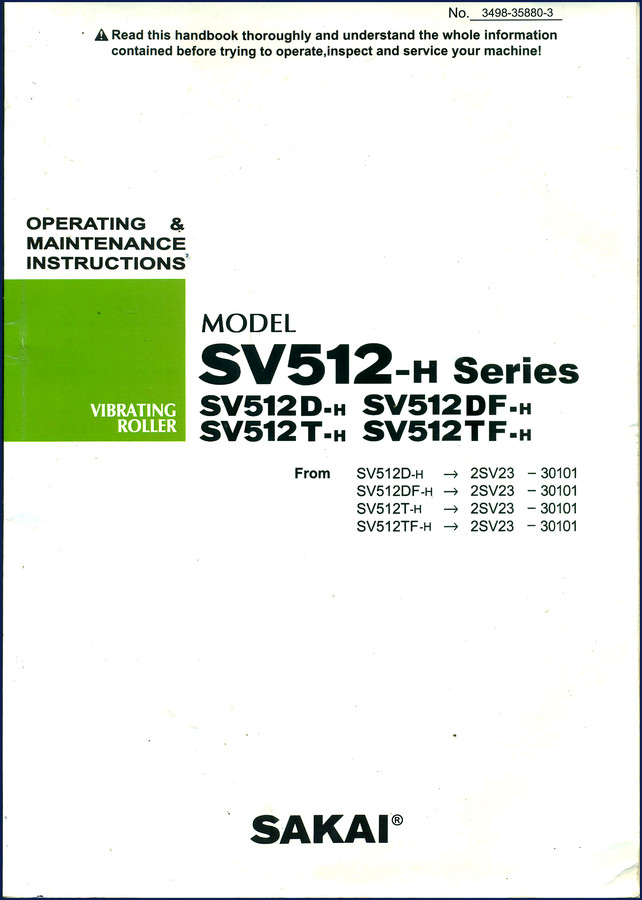

You are running a Sakai SV512D-H, SV512DF-H, SV512T-H, SV512TF-H Operators Manual on a jobsite with a 5-ton roller. A rock in the drum, a blown hose, a dead battery at 5:00 PM — and you’re reaching for a manual. Not a photocopy of a photocopy you found online. Not a generic manual that guesses the controls. You need the exact factory document that the machine shipped with. That’s what this is: 76 pages of OEM operators manual for the SV512-H Series.

Safety Notices – The First 16 Pages for a Reason

Skip this section and you’re asking for a rollover or a crushed foot. Section 1 covers basic precautions for safety: general precautions (page 4), preparation for safe operation (page 6), before and after starting the engine (pages 7-8), handling the battery (page 11), towing (page 11), and servicing (pages 13-14). Each subsection has a specific warning. The manual doesn’t assume you know to chock the wheels on a slope. It tells you, with diagrams. That’s why you pay for an OEM document: the safety decals section (page 16) matches exactly what’s on the machine. Aftermarket manuals leave that out.

Operation – What Each Lever Does (Page 18)

Section 2.1 instruments and controls starts on page 18 with the operator’s station layout. Gauges, indicator lamps, warning lamps — every light on the dashboard is identified. Switches, operating levers, pedals, the unloader valve, fuse box — all called out with their function. Page 26 shows the seat adjustment and scraper adjustment. When you need to disengage the brake for towing, the procedure is on page 26 in subsection 2.2.3. That brake disengagement is not the same as releasing a Manual Transmission park brake; it’s a hydraulic system that requires a specific lever sequence. The manual walks you through it.

Vibratory operation (section 2.4) explains how to engage the drum vibration at the right speed and on the right material. You don’t just flip a switch — there is a load sequence to avoid damaging the eccentric weights. Aftermarket PDFs skip this and you end up with a U-joint in two pieces.

Periodical Maintenance – 10-Hour Checks and Beyond

Section 3 covers periodical maintenance with six intervals: every 10 hours or daily, 50 hours, 250 hours, 500 hours, 1000 hours, and as required. The daily walk-around check is listed on page 3.1.2. The manual doesn’t trust you to remember to check the engine oil level — it lists it. The electric wiring diagram is included in section 3.6. That diagram is essential when chasing a no-start or a warning lamp stuck on. The engine itself is covered in a separate engine instruction manual, as noted on page 1, but the roller-specific lubrication points and grease fittings are all here.

Engine and Machine Identification Numbers – Match Before You Order Parts

Right after the preface, the manual expects you to record the machine identification number and engine serial number. That page matters when you call your parts distributor. If you don’t have the exact model variant — SV512D-H vs SV512T-H, or the ‘F’ suffix which indicates a different drum configuration — you’ll get the wrong scraper or filter kit. This manual covers all four models: SV512D-H, SV512DF-H, SV512T-H, and SV512TF-H. Variations are noted where they exist.

Why OEM Manuals Beat Aftermarket for Heavy Equipment

I have torqued more head bolts than most people have had hot meals, and I have seen techs ruin a $12,000 drum motor because they used a generic wiring diagram that showed the wrong solenoid pinout. Aftermarket manuals for rollers often copy the layout from a previous model year and miss updates. This file is a direct scan of the Sakai factory document — no reprint, no third-party editing. The page numbers match the printed original. If the manual says “page 26 for seat adjustment,” you turn to page 26 and see the illustration exactly as Sakai intended. That consistency saves billable hours.

For other Sakai roller models, check the related manuals: Sakai TW320-1 TW330-1 Operators Manual – Factory Specs, Sakai SW652-1, SW652ND-1, SW652B-1 Operators Manual – Factory Specs, and Sakai SW880 SW990 Operators Manual – OEM Factory Specs. Each is the same format: factory spec, full safety, operation, and maintenance.

Cold weather operation (section 2.11) covers fuel oil and grease, coolant, and battery. If you run your SV512DF-H in freezing temps, you need the specific coolant mix recommended on page 2.11.2. The manual also covers what to do when the cold season is over (page 2.12) and long storage periods (page 2.13). That storage section includes battery maintenance and anti-corrosion steps that prevent the piston rings from sticking. You ignore those and you’ll have a hard start next spring.

Towing and loading procedures (section 2.8) cover use of a trailer with a winch and self-propelling onto a trailer. The manual specifically warns against towing with the drivetrain engaged — the brake disengagement procedure is critical. If you are accustomed to a vehicle with a Manual Transmission where you can shift to neutral and tow freely, this roller is different. The manual tells you exactly how to avoid transmission damage.

FAQ – Operators Manual for SV512-H Series

Does this manual cover the diesel engine on the SV512D-H?

No – engine maintenance is covered in a separate engine manual.

What torque values are listed for wheel nuts?

The manual does not provide specific torque values for wheel nuts; it’s an operators manual focused on safe operation and daily checks, not full service specs. For service torque, you would need the service manual.

Can I use this manual for the SV512T-H and SV512TF-H?

Yes, this single 76-page operators manual covers all four models in the SV512-H Series: SV512D-H, SV512DF-H, SV512T-H, and SV512TF-H. The manual addresses the variations in controls, operation, and maintenance across these models. For example, the vibration control can differ between the standard and the F (smooth drum with extension) variants. Section 2.4 vibratory operation covers the differences. If you run a fleet with multiple SV512 variants, this one manual covers them all and saves you from buying separate documents.

How do I adjust the seat on the roller?

Seat adjustment is covered on page 26 in section 2.2.1. It’s a straightforward procedure, but the manual includes a warning to ensure the machine is parked and the engine off before adjusting.

You don’t guess with a 10,000-pound roller. You follow the book that was written for it. Access the Factory Manual from AutoRepairManuals and keep it in your tablet or printed in the cab. That PDF will pay for itself the first time it saves you from ordering the wrong fuse or blowing a hydraulic line.
