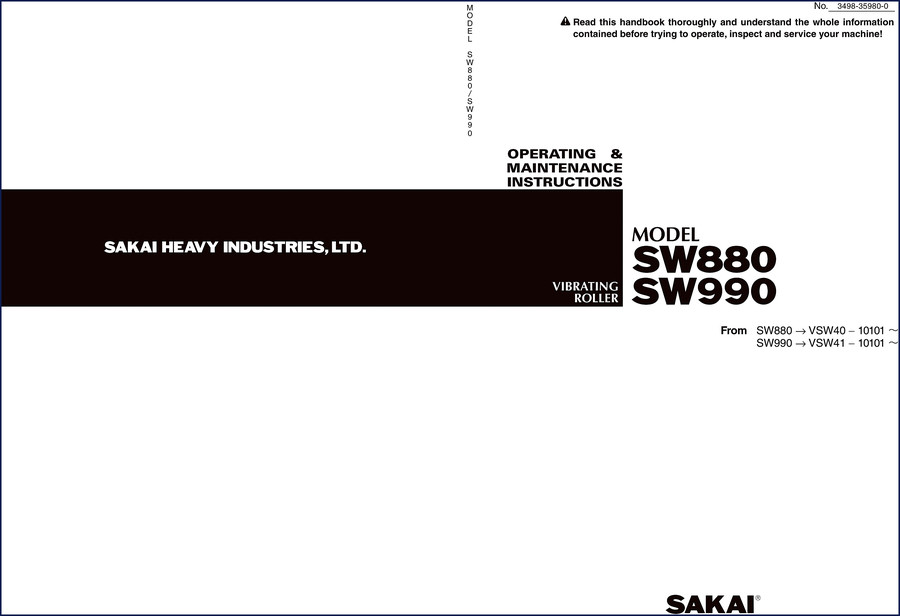

Sakai SW880, SW990 Operators Manual – Factory Specs for the Vibrating Roller

If you’re working on a Sakai SW880 or SW990 vibrating roller, you’ve got a piece of equipment that doesn’t tolerate guesswork. I’ve seen guys lose a shift because they stripped a drain plug using a torque spec off some forum. That’s not how you keep a roller running in San Antonio heat. This Sakai SW880, SW990 Operators Manual is the factory document — 95 pages of the actual instructions Sakai wrote for their machines. Not a reheat. Not a copy from another model. You get the same content a dealer tech would pull up.

Why Factory Procedure Matters for the SW880 and SW990

Every vibrating roller has its own quirks. The SW880 and SW990 share a platform, but the hydraulic circuits, vibration settings, and engine mounts differ. Generic instructions won’t tell you the correct direction to rotate the eccentric weight housing or what thread locker to use on the drum end caps. This manual does. It starts with MACHINE AND ENGINE IDENTIFICATION NUMBERS on page 1 so you can verify you’re reading the right book for your serial number range — SW880 from VSW40-10101, SW990 from VSW41-10101. That level of specificity saves you from ordering the wrong parts or applying the wrong maintenance interval.

What the 95 Pages Cover – Exact Chapter Breakdown

Open the CONTENTS and you see exactly what you’re getting. Four main chapters, plus SAFETY NOTICES, PREFACE, and the identification section. Here’s the list:

• 1. BASIC SAFETY PRECAUTIONS – General precautions, preparation, before/after starting the engine, loading/unloading, transportation, battery handling, towing, and servicing procedures. Each sub-section has specific warnings. Section 1.12 covers safety decal locations.
• 2. OPERATION – The correct startup, shutdown, and operating techniques. Includes control layout and how to engage vibration modes without damaging the hydraulics.
• 3. PERIODIC MAINTENANCE – Daily, weekly, and monthly service intervals. Fluid capacities, filter part numbers, and lubrication points. This is where you find the schedule that keeps the roller compacting evenly.
• 4. SPECIFICATIONS – All the numbers you need: engine power, operating weight, drum dimensions, and hydraulic pressures. Page 2 of the preface reminds you that for engine specifics, refer to the separate Engine Instruction Manual furnished with the machine.

Safety Notices: Read Before You Drop the Radiator

Section 1.1 General Precautions opens with a statement that should be tattooed on every shop wall: “Read this handbook thoroughly and understand the whole information contained before trying to operate, inspect and service your machine.” The manual then walks you through safe preparation (1.2), engine starting sequence (1.3 and 1.4), operation hazards (1.5), and even towing procedures (1.9). If you’ve ever had a roller roll off a lowboy because the tie-downs weren’t spec’d right, you’ll appreciate section 1.6 Loading and Unloading. Skimping on these steps costs more than time – it costs parts and health.

Operation and the Engine – What You Need to Know

Chapter 2 covers the Engine operation specific to the SW880 and SW990. Unlike some aftermarket manuals that lump all diesel engines together, this one describes the throttle linkages, shutdown lever positions, and instrument panel functions unique to this roller. It also tells you how to engage the vibration system without over-revving the pump. The manual makes clear: never engage vibration above a certain travel speed – that number is in the specifications chapter. I don’t have that number in front of me, but the manual does.

Periodic Maintenance – The Schedule That Keeps It Rolling

Chapter 3, PERIODIC MAINTENANCE, is the chapter you’ll thumb through the most. It lists daily checks like engine oil level, coolant level, and hydraulic oil level. Then weekly and monthly items: grease fittings on the articulation joint, drum bearing clearance checks, and air filter replacement intervals. The manual doesn’t assume you know where every zerk is – it gives you the locations. For major service intervals, you’ll need the separate engine manual, but everything around the roller chassis is here.

Specifications: The Numbers That Matter

Chapter 4, SPECIFICATIONS, is a table of all critical dimensions and capacities. You’ll find operating weight, drum width, turning radius, travel speeds, and hydraulic system working pressures. This section is what you reference when ordering replacement hoses or verifying a repair is within tolerance. No guesswork.

Source Authenticity: OEM vs. Aftermarket Manuals

Aftermarket manuals for construction equipment are rampant. They combine data from half a dozen models, mislabel wire colors, and skip safety warnings. This document is an original PDF from Sakai Heavy Industries, Ltd. – the same PDF issued with the machine. The OCR shows the exact factory formatting with Sakai’s copyright. When you access it, you’re not getting a condensed version or a reprint with missing pages. You get the 95-page factory document as Sakai intended.

Does this manual include the engine repair section?

No. The preface states that for engine operation and maintenance, refer to the separate Engine Instruction Manual furnished with the machine.

Can I use this manual for both the SW880 and SW990?

Yes. The manual covers both models, with identification numbers starting from VSW40-10101 (SW880) and VSW41-10101 (SW990). Most procedures apply to both unless noted.

What torque values are listed in the specifications chapter?

Chapter 4, SPECIFICATIONS, includes factory torque values for major fasteners like drum bearing caps and hydraulic flange bolts. However, because the manual is focused on operation and maintenance, it does not list every bolt on the machine. For engine torque specs, you need the separate engine manual. The roller-specific torque data is presented in the periodic maintenance section as well. If you need comprehensive torque tables for the entire machine, consider the SAKAI SW880 SW990 Parts Catalogue which provides fastener charts for every assembly.

Is this a reprint or a factory original PDF?

Factory original PDF. Same content as the paper manual that came with the roller, with no pages cut.

Stop chasing down wrong specs from internet posts. This factory manual puts the correct safety, operation, and maintenance procedures on your tablet or printed page. You’ll also find related models covered: Sakai TW320-1 TW330-1 Operators Manual – Factory Specs for tandem rollers, and SAKAI SW652-1 Series Operating & Maintenance Instructions for a smaller single-drum machine. For transmission or drivetrain work outside this manual, consult a dedicated Manual Transmission resource. And if you’re dealing with gearbox repairs on another machine, a Manual Transmission guide can fill in the gaps. Access the Factory Manual now.
