Prime-mover M-20 1985 Service Manual

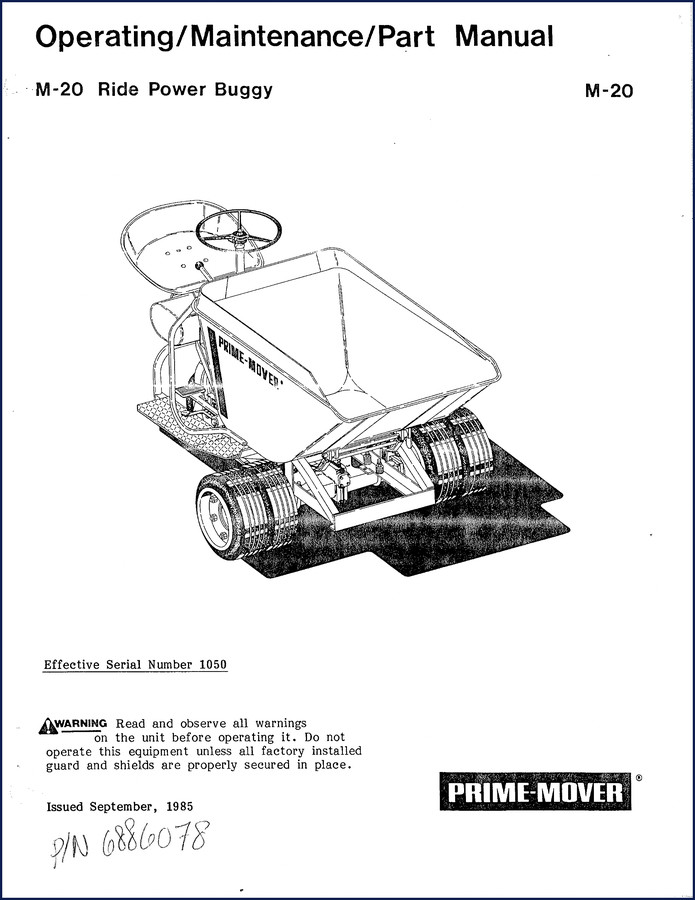

If you are holding this 1985 Prime-mover M-20 1985 Service Manual in your hands—or on your screen—you are looking at the exact same booklet the factory put in the tool crib when these buggies were still new. I have seen guys waste half a day chasing a hydraulic leak because they used a generic seal kit and guessed on the preload. This 82-page PDF stops that nonsense cold. It covers the M-20 Ride Power Buggy starting at serial number 1050, and it was issued September 1985 by Prime-Mover Co. in Muscatine, Iowa. If you own this machine and you do not have this document, you are working blind.

The world of construction equipment repair does not reward guesswork. You are dealing with a powered concrete brick and block buggy that handles heavy loads on job sites where a breakdown costs billable hours. The manual gets straight to the point: warning decals, operating rules, and a lubrication chart that tells you exactly where to hit the grease fittings. Want to know the correct charge pressure for the drive system? Page 73. Need to know the sequence for pulling the axle assembly? That is in the Service and Disassembly section starting on page 16. I have been torquing fasteners since before most of you were born, and I still do not trust aftermarket reprints for critical specs—only OEM factory data.

Operating Rules and Maintenance Instructions

Pages 5 through 10 are the operating rules and instructions. Do not skip these. The manual opens with a warning that all guards and shields must be properly secured before operation—that is not lawyer talk, that is how you keep your hands attached to your wrists. The maintenance instructions on pages 11 through 13 cover daily fluid checks and filter intervals. Pay attention to the periodic lubrication chart on page 15. It lists every grease point by location and interval. I tell every shop I consult: follow this chart, or plan on replacing bushings at 500 hours instead of 2000.

Service and Disassembly – 5 Sections You Need

Pages 16 through 20 break down the disassembly of the drive train, steering, and brake system. The manual does not assume you know the order of operations—it spells out the tool list you need before you start. If you are a home garage guy who bought one of these buggies at auction, this is the section that keeps you from snapping bolts. The parts ordering instructions on page 21 give you the exact part numbering system Prime-Mover used. You can cross-reference that with the numerical index on pages 78 through 81.

Specifications and Torque Data

Page 23 and page 76 contain the specifications. You will find fluid capacities, tire pressures, and—most importantly—torque values for critical fasteners. The aftermarket copies I have seen from other sites leave these pages out or transcribe them wrong. That is how you get a wheel hub that loosens at 20 mph on a loaded buggy. Trust the factory numbers. For related OEM documentation, check the Prime-mover M-20 1985 Service Manual – Factory OEM Specs for the direct access. If you need parts breakdowns for other Prime-Mover equipment, the PRIME-MOVER LS-70 Skid Steer Loader Parts Manual and the PRIME-MOVER L-900 Skid Steer Loader Parts Manual are also available.

Faults List – Page 24 Through 75

The faults listing section runs from page 24 to page 75. That is over 50 pages of error codes, symptom-to-cause mapping, and adjustment procedures. I have seen this section save a two-day teardown when a tech chased a no-start condition that turned out to be a corroded ground on the ignition interlock. The manual gives you the factory test procedure with expected voltage readings. No second-guessing.

Service Guide and Source Authenticity

Pages 77 through 79 are the service guide. This is the quick-reference index for the most common jobs: brake adjustment, steering linkage inspection, and drive chain tension. The manual ends with a numerical index that lets you find any part number in seconds. Here is the truth about OEM vs aftermarket: I have a stack of photocopied manuals from third-party sellers on my shelf. Every single one has torque values written in the margins by a previous owner because the copy was unreadable. This is a direct scan of the original factory print—Prime-Mover part number M20-2, September 1985. If you are looking for a Manual Transmission rebuild procedure for a different vehicle, that is not in this book—the buggy uses a hydrostatic drive. But for the M-20, this is the only documentation you need.

Frequently Asked Questions

What serial numbers does this manual cover?

Effective serial number 1050 and above.

Does this manual include wiring diagrams for the electrical system?

The manual covers the operating and maintenance systems of the M-20 Ride Power Buggy, including the faults list section from page 24 to 75 that references electrical troubleshooting steps. However, it does not contain a full-page schematic separate from the fault procedures. If you need a dedicated wiring diagram, you would need to cross-reference with the Prime-Mover dealer service bulletin for that serial range. The manual does include the charge pressure spec and switch test procedures that cover the majority of electrical issues seen on these buggies—typically battery ground corrosion or ignition interlock failure.

I have been in this trade since 1992. I have torqued head bolts on everything from a 30-ton forklift to a lawn mower engine. The one thing I have learned is that the factory paper always wins. When you grab this manual, you stop burning daylight on bad information. If you need a Manual Transmission guide for a different platform, go find one—but for the M-20, keep this 82-page book on the workbench next to your torque wrench. Access the Factory Manual and get the right torque the first time.
