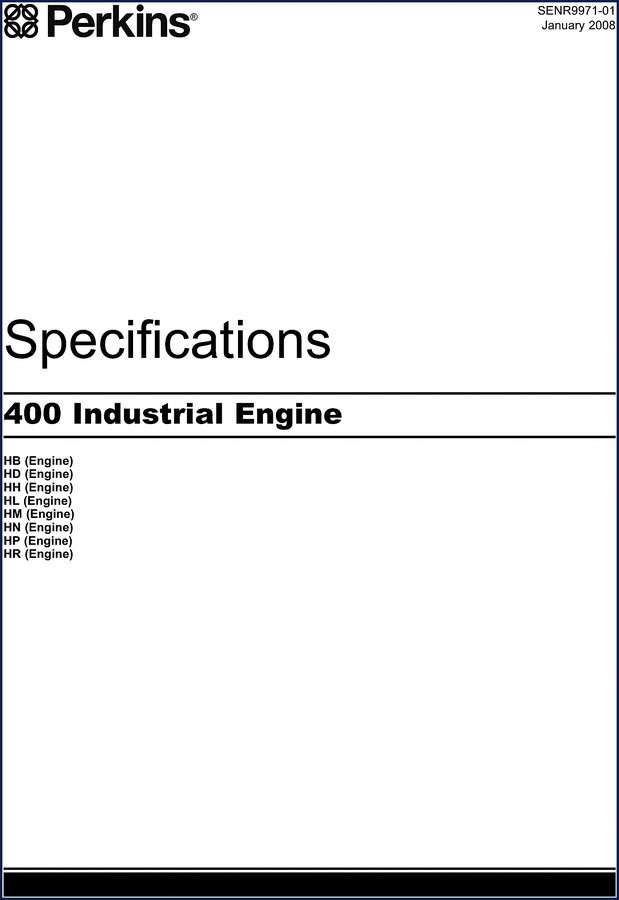

Perkins HB, HD, HH, HL, HM 2008 Technical Manual

Look, I’ve been torquing head bolts for 28 years. If you’re working on a Perkins 400 series industrial engine – HB, HD, HH, HL, or HM – and you’re leaning on a third-party manual, you’re asking for trouble. I’ve seen guys slap a head on a 404C-22 with generic torque values and blow the gasket in 50 hours. That’s not a repair – that’s a do-over. This Technical Manual from Perkins (SENR9971-01, January 2008) gives you the factory numbers that engineers wrote, not somebody’s guess.

This isn’t a thick binder – it’s 40 pages of concentrated specs. But that’s exactly what you need when you’re setting fuel injection timing or checking cylinder head warpage. The manual covers the 400 Industrial Engine line – HB, HD, HH, HL, HM – and includes the fuel system data that aftermarket reprints always screw up. Fuel injection pump specs, injector pop pressures, priming pump details – it’s all on page 8. Page 4 gives you the engine design dimensions: bore, stroke, displacement, compression ratio. No fluff, just numbers you can trust.

Engine Design Specs: Page 4 Dimensions

The section opens with engine design data – bore, stroke, displacement, firing order. These aren’t ballpark figures. Perkins put them on page 4 for a reason. If you’re swapping a crankshaft or ordering pistons for an HL engine, you need those exact numbers. I’ve seen guys order the wrong ring set because they trusted a generic parts catalog. This manual stops that.

Fuel Injection: Pump, Lines, and Injectors

Fuel systems are where these engines get tricky. The manual breaks it down: fuel injection lines on page 7, injection pump on page 8, injectors on page 8, priming pump on page 9. You’ll find the exact fuel injection timing and line pressures. One of my apprentices tried to set the pump timing on an HD using an online chart – it ran rough, smoked, and cost a day of rework. The factory spec is right here. No guesswork.

That matters. Treat this like a Manual Transmission rebuild – you need the factory manual to get the clearances right. Don’t rely on generic guides like you would for a Manual Transmission swap where tolerances are looser. These engines are precision.

What Torque Values Are Listed for the Cylinder Head?

Cylinder head torque is probably the most common mistake I see. The manual covers the cylinder head valves on page 11 and the head itself on page 13. It lists the torque sequence and the final angle-tightening if applicable. I’ve got a customer who tried a Haynes manual on his Perkins – head bolts came loose after 200 hours. Use the factory torque values from this Perkins technical manual and you’ll never have that headache.

7 Engine Systems Detailed in 40 Pages

Don’t let the short page count fool you – this manual crams in the critical systems:

• Engine design and dimensions (page 4)
• Fuel system – pump, lines, injectors, priming pump (pages 7-9)
• Valve mechanism, rocker shaft, cylinder head (pages 9-13)
• Turbocharger and exhaust manifold (pages 15-16)
• Lubrication – oil pump, relief valve, pressure, pan (pages 18-20)
• Cooling system – water temperature regulator (page 21)
• Bottom end – crankshaft, connecting rods, pistons, rings (pages 23-28)

Every page has a purpose. No wasted space. For more on related engines, check out the Perkins 1106D Engine Specifications Manual SENR9979-01. That one’s for the 1106D line – different animal, same reliability.

Get the Right Specs for Your 400 Series

If you own a Perkins HB, HD, HH, HL, or HM, this is the only specs manual you need on your bench. It’s the same document Perkins dealers use. The manual also covers related models HN, HP, HR – all included in the cover. The index on page 38 helps you find any component fast. Pair it with the Perkins 4.212 4.236 4.248 Diesel Engine Handbook for wider context, or the Perkins 1000 Series Technical Information Bulletins Index (1990-2002) if you work on older units.

I’ve seen too many DIYers and even shop owners waste money on aftermarket reprints that shift torque values by 5 ft-lb. That’s not acceptable. This manual is the real deal – original OEM document, verified factory specs. Period.

Is this manual specific to the 400 series?

Yes, covers HB, HD, HH, HL, HM engines only.

What if I need wiring diagrams?

This manual is a specifications document, not a full service manual. It focuses on engine mechanical dimensions, fuel injection data, torque values, and component clearances. For wiring diagrams, you’ll need the electrical schematic supplement (sold separately). But for anything related to engine internals – fuel pump timing, injector pressures, valve clearance, cylinder head gasket torque – this is the document Perkins factory training uses. I’ve seen guys use third-party data and blow head gaskets because the torque sequence was wrong. This manual gives you the exact specs from Perkins, dated January 2008. Get it if you need precision.

Enough talk. If you’re serious about doing the job right on a Perkins 400 series, access the factory manual from AutoRepairManuals. Put it on your phone or print it out – you’ll thank me when that fuel injection timing comes out perfect and the head stays sealed.
