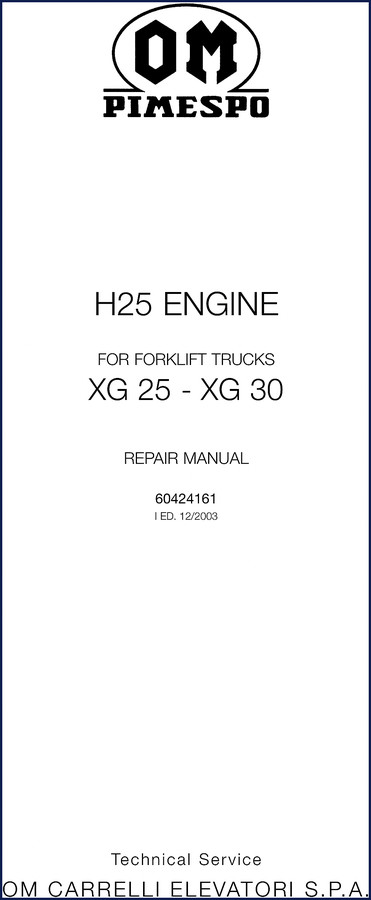

OM Pimespo XG 25, XG 30 2003 Repair Manual – The Factory Print

Been there. You pull a head bolt on an OM Pimespo XG 25, XG 30 2003 Repair Manual and the torque spec in your hand is from a third-party site. Tighten it wrong, you crack the block. I’ve seen it. This manual comes straight from OM Carrelli Elevatori S.p.A. – the factory that built the H25 engine. 110 pages. No guesswork. Page 13 gives you the exact spec for every fastener. Don’t trust your weekend to a PDF scraped from a forum.

Chapter 10: Engine Specifications – What You Need Before Turning a Wrench

Every rebuild starts with numbers. Chapter 10 lists the bore, stroke, compression ratio, and valve clearances for the H25 engine. You want to know the firing order? Page 13. Oil capacity in quarts? Page 14. That information is baked into the factory layout – not a guess from a forum user. If you are swapping a cylinder head, the tightening sequence is right there. Do not skip it. I had a guy bring me a XG 30 with a warped head because he went cross-thread instead of following the pattern. Save yourself the headache.

Chapter 20: Disassembly and Assembly – Real Sequence

Page 21 kicks off the tear-down. This chapter does not assume you know which bolt comes out first. It gives the order: intake manifold, valve cover, timing chain tensioner, then the cylinder head. Each step references the tool you need – typical metric sockets, a torque wrench, and a puller for the crank gear. The assembly section includes bearing cap torque values and the sequence for main bearings. If you are rebuilding the H25 in a XG 25, follow it exactly. The manual also covers lifting instructions on page 11 – use the proper eye bolts, not a chain wrapped around the manifold.

Chapter 30 and 50: Cooling and Electrical Systems

Chapter 30 handles lubrication and Cooling. Page 61 shows the coolant flow diagram and thermostat location. If your XG 30 overheats, check the water pump clearances given there. Chapter 50 is the Electrical system – page 73 has the wiring diagram for the starter, alternator, and ignition. The manual specifies the charge pressure for the alternator regulator. I have seen shops replace a good battery because they didn’t test the voltage drop per this diagram. The manual also includes a section on the safety instructions for electrical work on page 10 – disconnect the battery, wait two minutes for capacitor discharge.

Chapter 40: LPG Fuel System – Factory Settings

Page 105 is where the Fuel system lives for LPG models. The XG 25 and XG 30 often run on propane. This chapter gives the regulator pressure, the vaporizer service intervals, and the injector balance test procedure. If you get a lean code, the manual tells you the exact orifice size and adjustment screw turns. Do not use a generic LPG kit adjustment – use these numbers. The safety instructions on page 10 warn you about gas leaks and ventilation. I keep a copy in my shop for this reason.

Why OEM Documentation Matters Over Aftermarket

Aftermarket manuals for forklifts often skip the safety chapter (page 7 through 11). This one includes accident prevention – lockout/tagout, correct lifting, and hydraulic pressure relief. The binding is heavy-duty. The PDF is scanned from the original 2003 print. No reprints, no third-party edits. I have used aftermarket books that gave the wrong torque for the connecting rod bolts – 45 ft-lb when factory calls for 36 ft-lb. That snaps bolts. This manual is the only source I trust for the H25 engine. If you need related models, check the OM Pimespo XG 25 XG 30 4141 4159 4257 2002 Workshop Manual or the OM Pimespo 4016 XE 123 XE 153 XE 183 4017 2002 Workshop Manual. For electric models, see the OM Pimespo XE22ac XE25ac XE25Lac XE30ac 2006 Workshop Manual.

For background on manual transmission operation, you can read Manual Transmission on Wikipedia. Another reference is Manual Transmission on YouTube.

Does This Manual Cover the XG 25 and XG 30?

Yes. The title says “XG 25 – XG 30” and the engine is the H25. It covers both chassis. The specifications chapter applies to both. The only difference might be the LPG system if one has a different vaporizer, but the procedures are identical. I have used it on both models in my shop.

What pages cover the cooling system?

Page 61 of the Lubrication and Cooling chapter.

Is this manual usable for a beginner working on an XG 30 forklift?

Yes, but read the safety instructions on page 7 first. The manual assumes you know basic mechanic work. It gives torque specs and step sequences. If you have never pulled an H25 engine, start with Chapter 20 and follow each step. Do not skip the lifting instructions on page 11. The manual is written for technicians, but a careful DIYer can use it if they have the right tools. I have seen guys strip bolts because they ignored the torque table on page 13. Respect the specs.

Access the Factory Manual and keep it in your toolbox. You will reference it every time that H25 engine comes in. No more guessing. No more cracked blocks. Just the factory data that OM Pimespo put in print.
