Baoli CPC(D)20, CPC(D)25, CPC(D)30, CPC(D)35, CPQ(D)20 Service Manual – What You Actually Get

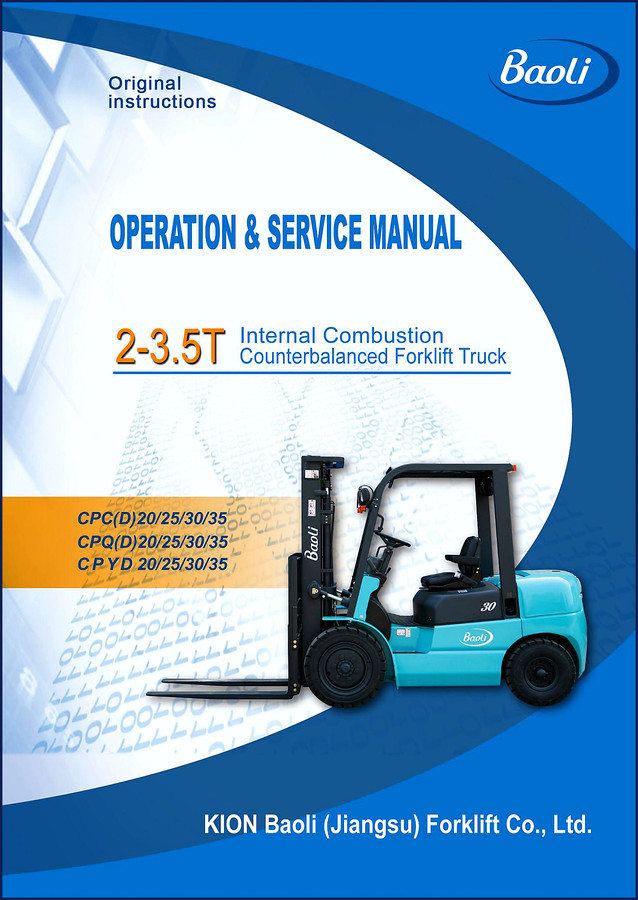

You’ve got a Baoli forklift in the bay – maybe a CPC(D)20, a CPC(D)25, a CPC(D)30, a CPC(D)35, or a CPQ(D)20. The aftermarket PDF you obtained says “covers all models” but the torque values don’t match the bolts you’re pulling. The wiring diagram looks like someone photocopied a photocopy. That frustration – wasted time, stripped threads, comeback jobs – is exactly why I tell guys to stop buying reprints and get the actual factory service manual. This is it: 96 pages of original Baoli documentation, straight from the KION factory in Jiangsu. No generic nonsense, no lost data.

Engine Parameter and Appropriate Truck Model

Section IV, Part 1.2 (page 25 in the pdf) lists the exact engine specs for each model. You need to know which engine your CPC(D)30 came with? It’s in there: displacement, firing order, oil capacity, valve lash clearances. The Baoli Service Manual breaks down the power system – general description on page 25, then inspection and adjustment procedures for the engine. If you’re swapping a long block or chasing a low-power complaint, this is where you start. Don’t trust the sticker on the valve cover; use the factory table.

Periodic Inspection and Servicing Schedule

Section III runs from page 22 to page 24. It covers general rules on inspection and maintenance, essentials of servicing, and – most importantly – the recommended oil, grease, and coolant. Forklift hydraulic oil isn’t motor oil. The manual calls out viscosity grades by ambient temperature. Lubrication system diagrams show every grease point. Follow this schedule and the 2-3.5t Baoli trucks will run 10,000 hours without a major teardown. Skip it and you’re burning clutches.

Clutch and Mechanical Drive: Factory Adjustment Procedures

Section IV, Part 2 – Mechanical drive system. The clutch adjustment on a CPC(D)25 has to be within .020 inches free play at the pedal. The manual gives you the step-by-step procedure: where to set the adjusting nut, what feeler gauge to use, and the sequence to check after reassembly. No guesswork. The same section covers the mechanical drive unit – gearbox spline alignment, output shaft end play, and seals. If you’re working on a manual transmission forklift, this is your blueprint. For related documentation, see the Baoli 8-10T Counterbalanced Forklift Operation & Service Manual.

7 Safety Sections You Cannot Ignore

Section II is devoted entirely to safe operation. Seven sub-sections from handling a new forklift through to caution plate locations. Page 6: start and stop of the engine – includes the warning about exhaust buildup in enclosed spaces. Page 11: information of safety operation – covers stability triangle and load center. The manual doesn’t assume you know this stuff. It tells you, in writing, what to do before you crank the engine. I’ve seen guys skip the pre-op inspection checklist on page 5. Don’t be that guy.

Does This Manual Cover the Hydraulic Drive Unit?

Yes. Section IV, Part 3 – Hydraulic drive unit (page numbers vary but it’s after the mechanical drive material). General description plus torque converter specs: stall speed, charge pressure, and clutch pack clearances. The manual explains the flow path from the torque converter to the transmission. If you’re diagnosing a slipping forward clutch on a CPQ(D)20, this is the section you use. The torque converter rebuild procedure is not in aftermarket manuals – it’s here, with OEM limits. For more on gearbox internals, check the Manual Transmission section – but understand this covers the hydrostatic and hydrodynamic drive systems specific to these Baoli models.

3 Reasons to Choose OEM Documentation

1. Torque specs you can trust. Every fastener in the engine, driveline, and mast has a verified value. Page 26 has the cylinder head bolt tightening sequence and torque in lb-ft. Aftermarket books transpose numbers; this one doesn’t.
2. Wiring diagrams that match. The electrical schematics in the Baoli Service Manual are drawn from the actual harness. Pin numbers, wire colors, connector views – no mystery splices.
3. Factory part numbering. When you need to order a clutch disc or a hydraulic pump seal, the manual gives you the genuine Baoli part number. No cross-referencing, no “this might fit.”

Other factory manuals in this range: Baoli 4-5T Internal Combustion Forklift Manual and BAOLI 5-7 Ton Forklift Operation and Service Manual. They cover the larger chassis, but the same attention to OEM detail applies.

One more external reference: the Manual Transmission section in this manual gives you the disassembly and reassembly process for the gearbox. Use it if you’re tearing into a CPC(D)30 with a grinding second gear.

Does the manual include torque specifications for the cylinder head?

Yes, page 26. Exact values in lb-ft with tightening sequence.

How do I adjust the clutch on a CPC(D)20?

The clutch adjustment procedure is in Section IV, Part 2. Start by removing the lower inspection plate. Loosen the locknut on the adjusting screw. Turn the screw clockwise until you feel resistance on the clutch release bearing, then back it off 1/4 to 1/2 turn. Free play at the pedal should be 15–25 mm (about 0.6–1.0 inch). Recheck after tightening the locknut. The manual also includes a step for measuring clutch disc thickness without pulling the transmission – use a dial indicator through the inspection hole. Torque the bellhousing bolts to 37 lb-ft in a crisscross pattern. If the clutch drags after adjustment, inspect the pilot bearing and input shaft splines for wear.

This Baoli CPC(D)20, CPC(D)25, CPC(D)30, CPC(D)35, CPQ(D)20 Service Manual is the original factory document that the dealer techs use. Stop burning time on aftermarket approximations. Access the Factory Manual from the AutoRepairManuals collection and get the job done with the right data the first time.
