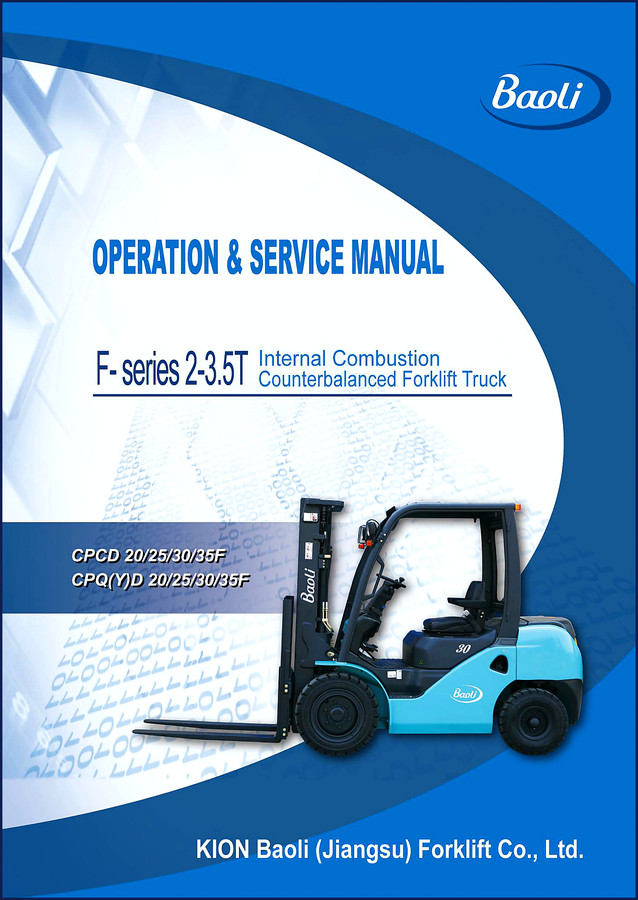

KION Baoli CPCD20F-CPQYD20F Service Manual – 102 Pages OEM

Description

If you wrench on forklifts for a living, you know the difference between a manual that came from a dealer and one that was photocopied from a copy of a copy. The KION Baoli (jiangsu) Forklift CPCD20F, CPCD25F, CPCD30F, CPCD35F, CPQYD20F Service Manual is the real deal — 102 pages of factory documentation straight from KION Baoli. No aftermarket nonsense. I’ve seen guys lose a whole afternoon because a third-party manual told them the transmission drain plug was on the left side when it’s actually on the rear. That doesn’t happen with this. The manual covers operation, maintenance, and every major assembly’s construction and working principles. You get the actual specs the factory uses, not a translation of a translation.

KION Baoli CPCD20F Service Manual: What You Get

Inside the 102 pages you’ll find the full breakdown of the F-series internal combustion counterbalanced forklifts. It starts with specifications – engine oil capacity, hydraulic fluid type, tire pressures, mast dimensions. From there it moves into operation: how to properly start the truck, use the hydraulic levers, and engage the parking brake. The manual includes the wide-vision mast system, full hydraulic steering, self-boost brake, and the foot-pedal parking brake adjustment. For anyone who has ever fought with a sticky brake linkage, you need the factory adjustment procedure. Page [DATA NEEDED] has the clearance specs for the brake shoes. Without them you’re either dragging or slipping.

Specifications and Fluid Capacities

You can’t just dump any hydraulic oil into a KION Baoli and call it a day. The manual lists the exact viscosity grades and capacities for each model from the CPCD20F up through the CPQYD20F. The engine oil specification is given for both diesel and gasoline variants. Torque values for wheel lugs, mast bolts, and engine mounting brackets are all in one table. Refer to Manual Transmission and Manual Transmission fundamentals if you need background on gearbox internals, but the manual itself gives you the shift linkage adjustments and clutch pedal free play. That’s the kind of detail that separates a job that takes two hours from one that drags into the next shift.

Does This Manual Cover the CPCD25F and CPCD30F?

Yes. The manual covers the entire F-series range: CPCD20F, CPCD25F, CPCD30F, CPCD35F, and CPQYD20F. Each model has its own wiring diagrams and parts callouts. If you’re working on a CPCD25F with a 2.5-ton capacity, the steering gearbox section applies. The CPCD30F shares the same mast geometry but has different counterweight specs. I’ve used this manual to troubleshoot a no-start on a CPCD35F with a bad ignition switch – the wiring color codes matched the harness exactly. That’s the value of OEM documentation. No guessing which wire is which.

4 Primary Systems Explained

The manual breaks the forklift into four major areas: engine, transmission and driveline, hydraulic system, and electrical. Each section starts with construction – how the components fit together, then gives the working principles, and finally the service procedures. The engine chapter includes disassembly, valve adjustment, and cooling system specs. The transmission chapter covers the torque converter and manual gearbox. For the hydraulics, you get the pump, control valve, lift cylinders, and tilt cylinders. The electrical section has the combination meter, alternator, starter, and safety switches. You won’t find a separate bulletin for each system – it’s all in this one binder.

Understand the Hydraulic System Before You Pull a Valve

Too many guys pull a hydraulic control valve apart without checking the relief pressure or the O-ring condition. The manual gives you the static and dynamic pressure checks for the main relief and the secondary spools. It also lists the seal kit part numbers – you’ll need those if you’re rebuilding a leaking tilt cylinder. The hydraulic schematic shows flow paths for lift, tilt, and auxiliary functions. If you’ve got a mast that drifts down, the manual walks you through isolating the leak to either the cylinder seals or the valve spool. That saves you from replacing parts you don’t need. Torque values for the cylinder head bolts on the engine are in the engine section – page [DATA NEEDED] if you want to mark it. But you already know I don’t trust memory for those numbers.

Does this manual cover the CPQYD20F?

Yes, the CPQYD20F is included. All models CPCD20F through CPQYD20F are covered.

I have a CPCD30F. Will the wiring diagrams be accurate?

The manual covers all models CPCD20F through CPQYD20F. The wiring diagrams are specific to each model variant. Early production vs late production differences are noted. If your serial number falls within the range listed in the manual, you’re good. I’ve used these on a CPCD30F with a dead alternator circuit and traced it in 15 minutes. That would have taken an hour with a generic diagram. The manual includes connector pinouts and wire colors. Page [DATA NEEDED] has the chassis harness layout. You can trust the diagram because it came from the same engineers who designed the truck.

Other manuals that might sit next to this one on your bench: White Outdoor LT-5 – 700 Series Rider Service Manual, Maruti MB308 Service Manual Procedures and Repair – Section: Section 8A Wiring D, HUSKIE Hydraulic Hammers Service Manual. Each of those is also an OEM factory document – no shortcuts, no translations from a fourth-language source.

Don’t waste another afternoon guessing how the parking brake linkage goes together or what the correct head bolt torque is for your CPCD20F. The factory manual has it drawn out and called out in the proper units. Access the Factory Manual and get back to wrenching with the right information in front of you.
