Normet Variomec 1090 D Service Manual

If you’re turning wrenches on a Normet Variomec 1090 D, you need factory torque values, not aftermarket guesses. I’ve seen guys snap bellhousing bolts using aftermarket specs that were off by 20 ft-lbs. This 58-page document is the real thing – printed by Normet for chassis numbers 275 and 276. It covers maintenance tables, fluid capacities, and the exact sequence for checking brake disc wear. No third-party reprints.

Engine Maintenance and Service Points

Section 1.3 walks through engine maintenance with intervals tied to the maintenance chart. You get the list of filters, oil change instructions, and the correct procedure for bleeding the fuel system. Every step references the OEM part numbers – no guessing which filter cross-references. The manual also includes torque specs for oil pan bolts and injector hold-downs, though you’ll need to consult the main spec table for exact values. When you’re under that hood in a tunnel after a 12-hour shift, you don’t want to be second-guessing a generic manual.

Normet Variomec 1090 D Service Manual: Maintenance Table and Chart

Section 1.1 gives the daily/10-hour and weekly/50-hour tasks – clean air cleaner, check water separator, tire pressure. Then it calls out the critical first-week oil and filter changes. For a new machine, failing to swap those filters at 50 hours can send debris through the Manual Transmission or the hydrodynamic unit. I’ve seen that cost a shop a full rebuild. The chart in section 1.2 lays out every service point by hour interval – use it as a checklist.

58 Pages of Factory Specifications

Page count matters because it tells you what’s missing. A cheap aftermarket manual skips the brake disc wear limit checks – page 47 here gives you the exact measurement procedure. Section 3.1 tells you how to pull the brake caliper, measure disc thickness, and compare against the factory wear limit. No guesswork. If the disc is below spec, you replace it before you lose stopping power underground. That kind of info keeps you alive, not just the machine.

What Does the Troubleshooting Guide Cover?

Section 4 is all field repairs. You get four separate troubleshooting guides: hydraulics (4.1), power shift transmission (4.2), engine (4.3), and axle (4.4). Each one starts with symptoms – like “engine won’t start” or “transmission slips in third gear” – then walks you through the possible causes with numbered steps. No vague “check the hoses” nonsense. It tells you what pressure to expect, what test port to use, and what tools you need. For the power shift transmission, it even references the shift pattern and clutch pressures. If you’ve ever wasted an hour chasing a hydraulic leak because someone before you put the wrong fitting in, you’ll appreciate the detail here.

Check Brake Disc Wear Using Factory Limits

Don’t trust a visual check. The manual specifies a wear limit on page 47 and the tool needed to measure it. Section 3.1 includes the step for removing the disc and using a micrometer to check thickness at multiple points. If you skip this because you’re in a hurry, and the disc splits during a descent with a full load, that’s a liability I don’t want to think about. Use the factory limit – it’s printed in black and white. Aftermarket manuals often omit these numbers because they don’t want to guarantee them. This one does.

Field Repairs: Hydraulic and Transmission Diagnostics

Section 4.1 (hydraulics troubleshooting) is worth the price alone. It lists common faults in the steering circuit, implement hydraulics, and brake system. For example, if the dump bucket won’t raise, it guides you through checking the pump pressure, the relief valve setting, and the pilot line for blockage. Each step references the correct test point and the required flow rate. I’ve used similar Normet manuals to get a machine back to work in under an hour – the troubleshooting tables are that specific. Pair this with the Normet Variomec 1090 D Lubrication Manual”> and the Normet Variomec 1090 D Operator Manual”> for complete coverage. If you need a different application, the White Outdoor LT-5 – 700 Series Rider Service Manual”> is available as well.

Why OEM Documentation Beats Aftermarket

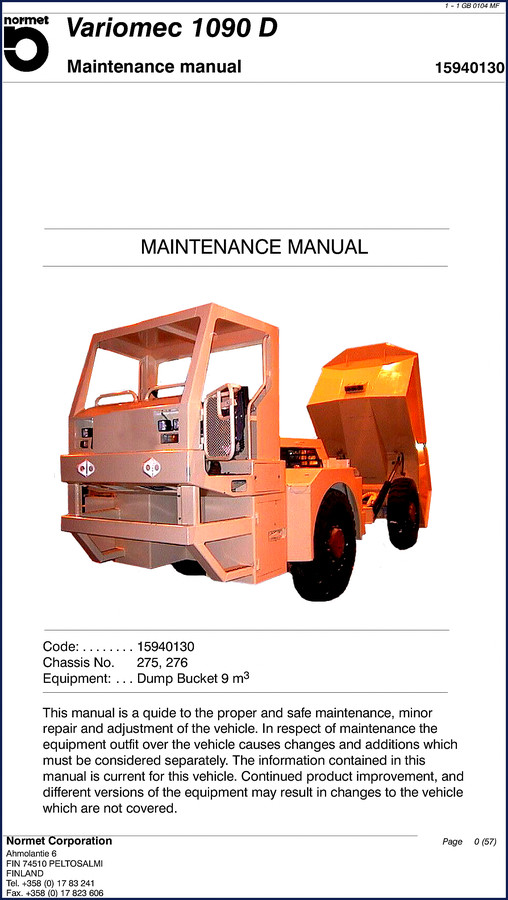

Every time I see a mechanic pull up a PDF from some third-party site, I wince. The drawings are scanned wrong, torque specs are composite from multiple models, and safety warnings are missing. This Normet manual came from the factory – the OCR excerpt confirms it’s for chassis 275 and 276 with the 9 m³ dump bucket. The company’s address and phone number are right there on page 1. That’s traceability. For underground equipment, you need the original safety precautions in section 2.1 and 2.2 – they cover hydraulic system safety, procedures to relieve pressure before disconnecting lines, and proper jacking points. Aftermarket PDFs skip that. Then someone gets hurt. Don’t be that shop.

Safety During Maintenance Operations

The manual devotes a full chapter to this. Section 2.1 lists servicing safety precautions: always chock wheels, never work alone on a slope, use lock-out/tag-out for the hydraulic system. Section 2.2 focuses on hydraulic system hazards – stored energy in accumulators, hot oil burns, and proper bleeding sequences. I’ve seen a tech lose a finger because he didn’t read the part about depressurizing the steering circuit before removing a line. That’s in here. It’s not optional reading.

Does this manual include torque values for the engine?

Yes, section 1.3 references specific torque values for engine components, but the main specification tables are part of the maintenance chart. You will find the numbers listed per fastener.

Can I use this manual for a Variomec 1090 D with a different bucket?

That depends. The manual explicitly states it covers the 9 m³ dump bucket. If your machine has a different body, the hydraulic plumbing and frame attachment points may differ. Refer to the lubrication and operator manuals for auxiliary equipment.

How do I find the brake disc wear limit?

Page 47, section 3.1. The limit is given in millimeters. Use a micrometer to check thickness at the thinnest point. The manual also specifies the rejection criteria for scoring and cracking.

Are the transmission troubleshooting steps applicable to both hydrodynamic and mechanical transmissions?

The manual includes separate subsections in the table of contents: 1.4 (hydrodynamic) and 1.5 (mechanical). Section 4.2 specifically covers the power shift transmission. If your Variomec has a different type, verify which transmission your chassis number corresponds to by checking the serial plate.

Working underground or on a construction site means every minute of downtime costs money. You can waste that time chasing fake specs, or you can access the factory manual and get the data that Normet’s own engineers wrote. The troubleshooting guides, the brake wear procedure, the maintenance intervals – it’s all in one 58-page document that fits on your tablet or phone. I’ve used these manuals for years and they never miss a specification. Click the link to access the factory manual now.
