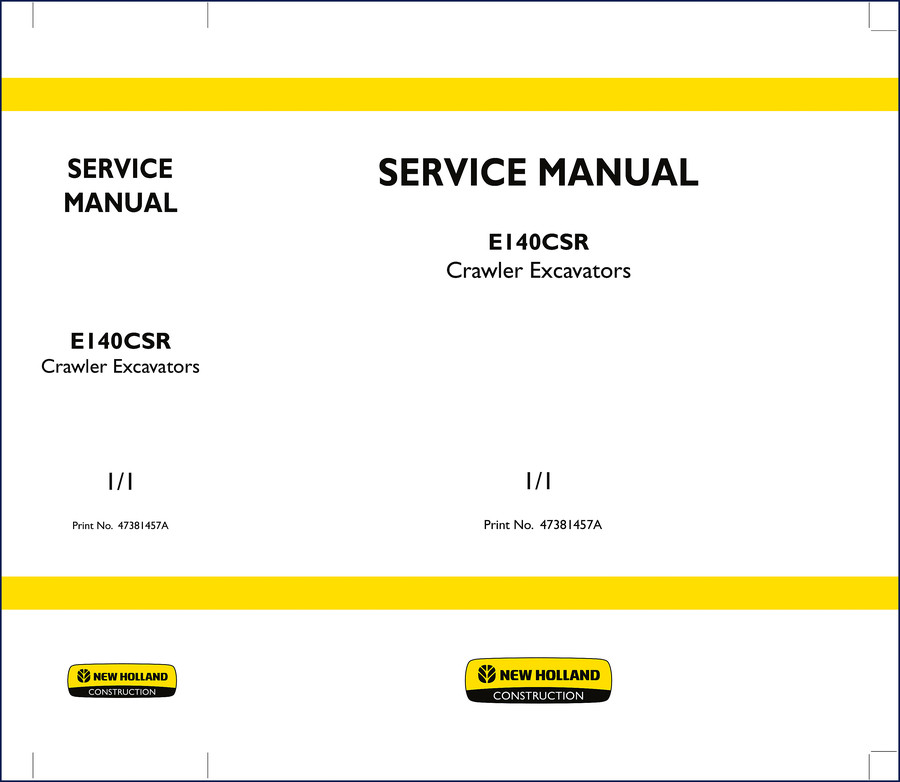

New Holland E140CSR Service Manual

If you’re turning wrenches on a New Holland E140CSR crawler excavator, you already know the stakes. One misstep on a hydraulic line or a torque spec pulled from a forum can cost you a whole afternoon — or worse, a trip to the ER. I’ve been in this trade for 28 years, ASE Master, running a 6-bay shop in San Antonio. I’ve seen what happens when guys rely on aftermarket “condensed” manuals or YouTube videos. You get half the story, missing safety warnings, and torque values that don’t match the factory prints. That’s why this New Holland E140CSR Service Manual sits on my bench. It’s the real deal: OEM factory documentation, 1111 pages, direct from New Holland Kobelco. No reprints, no third-party edits.

1111 Pages of Factory Data

You see 1111 pages and think, “That’s a lot of paper.” You’re right. But every single one of those pages contains something you might need: torque specifications for every bolted joint, hydraulic pressures, electrical schematics, clearance measurements. The manual is written for an experienced technician — that’s the first sentence on page 1. It assumes you know which end of a wrench to grab. But it doesn’t leave anything to chance. Need the charge pressure for the hydraulic system? That information is buried in the procedures, not in a footnote. Page numbers aren’t just decoration; they’re routes to the exact data you need. I’ve used this manual to get a machine back to work in half the time it would take with a generic guide.

Safety Warnings: What’s on Page 2?

Flip to page 2 and you’ll find the “To Prevent Accidents” section. It reads like someone who has seen too many shop accidents wrote it — because they have. The manual spells out the rule that prevents most injuries: never attempt to clean, lubricate, or service a machine with the engine running. It also warns about hydraulic attachments that can drop if not properly supported. This isn’t a lawsuit disclaimer; it’s real-world safety data. I’ve had to pull a tech out from under a raised bucket that wasn’t blocked. That mistake could have been avoided if they’d read the factory manual’s warning on page 2. The manual also explains what tools you need for specific jobs — not a vague list, but part numbers and capacities.

Does This Manual Cover the Undercarriage and Hydraulics?

Yes, and more. The E140CSR Service Manual is a single volume covering the entire crawler excavator — engine, hydraulic system, final drives, swing gear, cab electronics, and structural components. It doesn’t skip the undercarriage, which is where most bushings and track tension issues live. Each section includes removal, installation, disassembly, and reassembly procedures. There’s no generic “then remove the bolts” language. You get specific torque sequences, sealant types, and lock washer requirements. Aftermarket manuals love to abbreviate these steps, but the New Holland manual doesn’t. It gives you the full process. For the hydraulic system, you’ll find pressure test points and adjustment procedures — not just diagrams, but step-by-step with expected values.

Aftermarket Manuals: Why I Won’t Use Them

I’ve been burned by aftermarket documentation. One “universal” manual told me the wrong piston pin clearance for a different model — cost me an engine rebuild. This OEM manual is printed by New Holland Kobelco Construction Machinery S.p.A. It’s validated against the actual engineering specs. The copyright page on page 3 confirms it: direct from the manufacturer’s documentation centre in Italy. That’s traceability. If a spec is wrong, I can go back to the source. When you’re bidding a repair job or billing a customer, you need that credibility. This manual is the difference between a flat-rate job that pays and a comeback that eats your profit. That’s why I recommend sticking with factory OEM. Check out related manuals like the Sperry New Holland Model 31 33 36 Service Manual or the New Holland T7510-T7550 2013 Service Manual – Factory Specs if you work on those machines. And if you need a larger tractor series, the New Holland T5.95, T5.105, T5.115 2013 Service Manual – 2173 Pages is also available. For general transmission knowledge, you might reference Manual Transmission or Manual Transmission concepts — but always verify with the factory manual.

What Torque Values Are Listed?

Every bolt on this machine has a torque spec. The manual doesn’t give you a generic chart; it lists torques within each procedure. For critical fasteners like cylinder head bolts and main bearing caps, you get the sequence and the angle. For hydraulic fittings, you get the proper tightening torque for O-ring boss and flare-type connections. I’ve had too many leaks traced back to someone over-tightening a fitting because they didn’t have the spec. The E140CSR Service Manual also includes wear limits for pins and bushings in the undercarriage section. That data is gold when you’re deciding whether to re-bush or replace a track frame. Without it, you’re guessing — and guessing costs money.

Is this manual for beginners?

No. It’s written for experienced technicians. If you’re a home garage enthusiast with basic mechanical skills, you can still use it — but you’ll need to know how to read schematics and understand torque sequences.

Does it include wiring diagrams?

Yes, the electrical section has full wiring schematics with connector pinouts and component locations. Page references are given for each circuit.

How is this different from a PDF I find online?

This is the official factory print. Most free PDFs are scanned copies of aftermarket reprints, missing pages, or blurry diagrams. This manual is a clean digital file from the original OEM publication, page-for-page identical to what a dealer tech would use.

Can I access it immediately after purchase?

Yes. It’s a digital access — you get the full PDF, no shipping delays. Print specific pages as needed or keep it on a tablet in the shop.

Listen, I don’t write fluff. If you work on these machines, you need the actual factory documentation. The New Holland E140CSR Service Manual is the one volume that covers all maintenance and repair operations, with the specs that keep a machine running and keep you safe. I keep a copy on my workbench and on my shop tablet. You should too. Access the Factory Manual now and stop relying on secondhand data.
