Massey Ferguson 30, 31XP, 32, 34, 36 Parts Catalog – Factory Numbers Only

You’ve got a Massey Ferguson combine torn down to the block, and the clutch housing is sitting on a pallet. The shop wants a part number for the input shaft seal, but the aftermarket book you bought off eBay gave you a cross-reference that didn’t match anything on the shelf. That’s time wasted, a customer waiting, and a parts run you could have avoided. This 51-page Massey Ferguson 30, 31XP, 32, 34, 36 Parts Catalog is the OEM factory print. No aftermarket re-draws, no “compatible with” guesswork. Every part number in here came from the same engineering files that built the machine.

OEM Part Numbers for MF 30, 31XP, 32, 34, 36 Engines

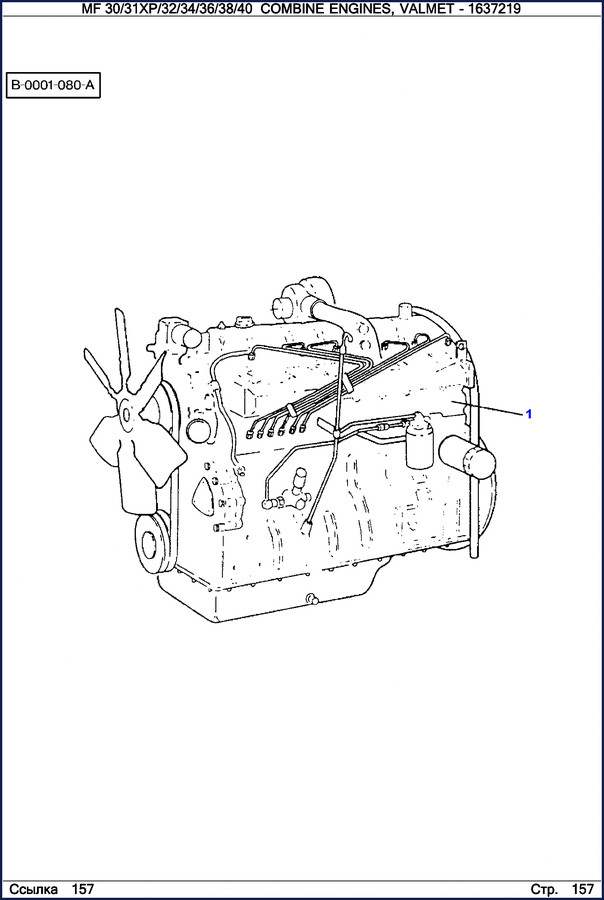

Section one of this catalog breaks down the ENGINE 311DSL assembly. You get the factory part number, quantity, and description for every component from the block to the fan pulley. Need a replacement cylinder head for a 31XP? The part number is listed with the correct casting revision. No aftermarket interpretation – it’s the same number the dealer punches into his terminal. I’ve seen too many guys order a “will fit” gasket set only to find the oil return holes don’t line up. This catalog eliminates that. The Valmet 311DSL engine page (Section divider page 1) shows the full engine assembly with Item numbers keyed to the illustration. You don’t guess – you match.

What’s Inside This 51-Page Parts Catalog?

Every page is a spread of exploded diagrams and part number tables. The catalog covers the Massey Ferguson 30, 31XP, 32, 34, and 36 combine models that use the Valmet 311DSL engine. It also covers the 38 and 40 variants – those are listed on the cover page and in the section dividers. The document is 51 pages of pure reference material. You flip to the engine section, find the part, read the quantity, and write the order. No fluff. No generic “this might fit” annotations. Each page is a snapshot of the factory bill of materials. The last page (page 3) shows the combine engine listing with the MF part number D46495300 for the complete engine assembly. That’s the level of detail you get – every nut and bolt accounted for.

Valmet Engine Coverage: 311DSL and Beyond

The Valmet 311DSL engine is the backbone of these combine models. This catalog covers every iteration: the 30, 31XP, 32, 34, 36, 38, and 40. The section titles call out “COMBINE ENGINES, VALMET” and the part numbers are specific to each variant. If you’re rebuilding a 34, you need the correct injector lines – the catalog shows the part number for the 34 specifically, not a generic group. The comment column in the tables indicates which model each part fits. For example, the engine assembly D46495300 has “311DSL” and “MF21” in the comments. That tells you it’s for the 21-series combine engine configuration. Without this catalog, you’re cross-referencing from memory or hoping the parts counter kid gets it right.

Get the Right Part the First Time

When you’re working on a machine that’s 30 years old, one wrong part number sets you back three days. The aftermarket catalogs I’ve seen list a single part number for a water pump that fits five different engines – but they don’t tell you the impeller diameter changed in 1987. This factory catalog gives you the engineering revision in the comments. You see the exact part number that left the factory. Order that. Anything else is a gamble. And if you’re a shop owner, you don’t let your guys guess – you put this PDF on the bench tablet so they pull up the diagram and read the number. That’s how you keep the bay turning.

Who Needs This Catalog?

If you own a Massey Ferguson 30, 31XP, 32, 34, or 36 combine, and you plan to keep it running – you need this. DIY mechanics who want to order the correct water pump without returning a wrong one. Small farm operators who do their own engine overhauls. Junkyard operators pulling parts to resell – you need the correct interchange numbers. Even dealer parts departments keep these prints in the back room. The catalog doesn’t tell you how to rebuild the engine – that’s a service manual job. But it tells you what to order. And that’s half the battle.

Factory Documentation Beats Aftermarket Every Time

I’ve seen aftermarket parts books that re-photograph a worn-out original, crop the edges, and miss half the part numbers. This is a direct scan of the factory Massey Ferguson printed catalog. The part numbers are crisp, the diagrams are clean, and the page numbering matches the original binder. You can hand this to a machinist and say “order number 7 on page 2” – he’ll find it. That kind of precision matters when the combine is down in the middle of harvest. For related manuals, check out the Massey Ferguson 30/31XP/32/34/36/38/40 Combine Engine service manual, the Massey-Ferguson MF300 Tractor Loader Dozer Parts Book, and the Massey-Ferguson MF500 Tractor Loader & Dozer Parts Book for additional machine coverage. For a broader view of agricultural documentation standards, see Automotive Industry Overview and Automotive Industry Overview.

Factory data. No compromises.

Does the catalog cover the 38 and 40 models?

Yes. The cover page lists MF 30/31XP/32/34/36/38/40 combine engines. The section dividers and part number tables include those models in the comments. If you have a 38 or 40, you get the same part numbers as the numbered models.

How are the part numbers organized?

Each section starts with a divider page (like “ENGINE 311DSL”), then a table with columns: Item, Part Number, Qty, Description, Comments. The diagrams are not included in this PDF – it’s a pure parts listing catalog. You match the item number to the part number. The table is sorted by assembly order, not alpha.

This is the kind of documentation you keep in the glovebox of the service truck. Access the Factory Manual and keep your parts ordering straight.
