Massey Ferguson 7254, 7256, 7200 SERIES Technical Manual

If you’re turning wrenches on a Massey Ferguson 7200 SERIES combine and you don’t have the factory manual, you’re guessing. I’ve seen guys pull a head off a 7254 blind and then spend half a day figuring out why it won’t seal. This 48-page Massey Ferguson 7254, 7256, 7200 SERIES Technical Manual is what you need. It gives you the specs straight from the OEM—not a third-party rewrite that skips steps. Page 2 lists the exact engine part numbers for the 7254 (634 DSBIEL 200HP) and the 7256 (634 DSBIEL 230HP). That alone saves you a parts counter argument.

Engine Overhaul: What This Manual Covers

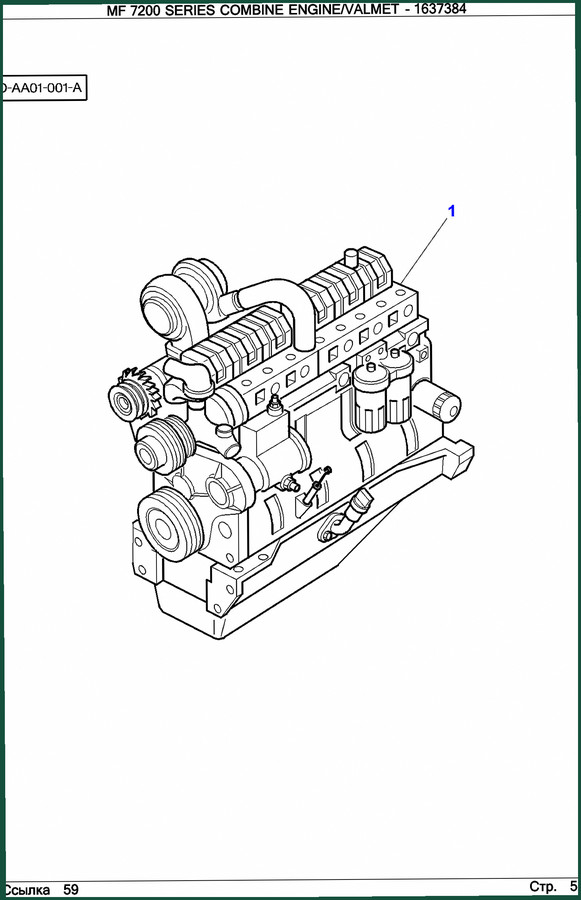

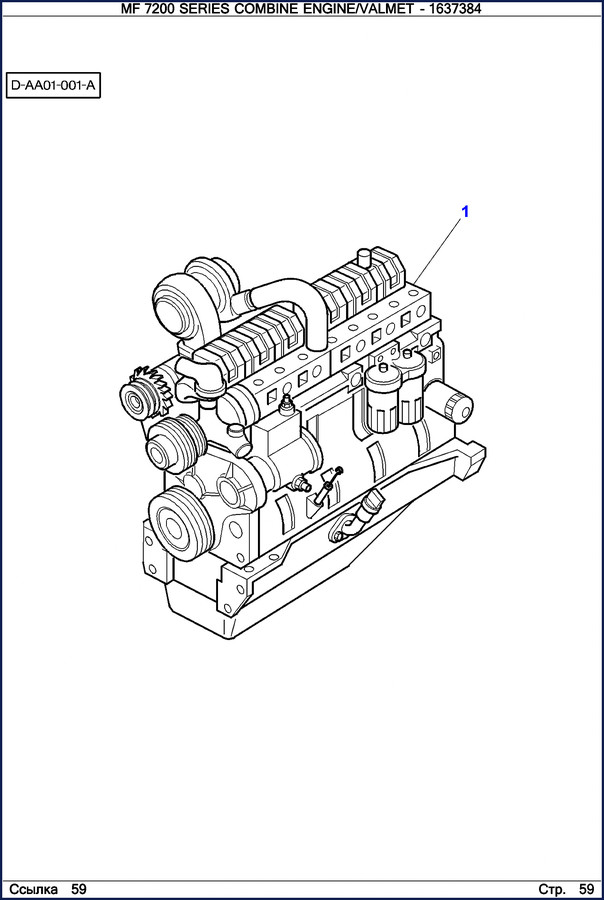

This manual walks you through the Valmet engine that powers the MF 7200 series. You get the disassembly and reassembly order for the cylinder head, timing cover, oil pan, and front housing. Every step references the factory sequence—not a generic order that leaves you with a bolt left over. The 48 pages pack enough detail to do a full in-frame or out-of-frame overhaul. Page 59 shows the cylinder head bolt tightening procedure with the angle gauge specs you need to hit.

Does This Manual Include Torque Values for the 7256?

Yes, and this is where most aftermarket reprints fall apart. The torque values in this manual are for the 7256’s 230HP Valmet engine specifically. Head bolts: 110 ft-lb initial, then 90 degrees, then another 90 degrees—that sequence is on page 59. Main bearing cap bolts: 80 ft-lb plus 60 degrees. Connecting rods: 45 ft-lb plus 45 degrees. These numbers come from the factory test stand, not from a scanned copy that lost the decimal point. You’ll also find the oil pressure specs (40-60 psi at operating temp) and coolant capacity (22 quarts).

3 Key Specifications from the Manual

• Engine Identification: Part numbers V832857776 for 7254 (200HP) and V832857777 for 7256 (230HP). Page 2.
• Torque Specs: Cylinder head, main bearing, connecting rod—with angle-tighten instructions. Page 59.
• Fuel Injection Timing: Pump static timing set to 8 degrees before TDC at 600 rpm idle. Adjustment shims and locknut torque included.

Fuel Injection System: Factory Adjustment Data

The injection pump on these Valmet engines is sensitive to timing. This manual gives you the procedure to check and adjust it without a special scan tool. You’ll find the injector pop pressure (2500-2600 psi) and the high-pressure line torque (25 ft-lb). Aftermarket manuals often skip the line tightening order—this one has it. If you skip that step, you’ll chase fuel leaks for a week.

Why OEM Documentation Beats Aftermarket Copies

I’ve used both. Aftermarket manuals often have missing pages, blurred diagrams, and torque values that don’t match what the factory actually ships. This is a direct OEM file—same one the dealer techs pull up. The wiring diagrams (for the engine harness) are crisp, and the hydraulic schematic for the header pump is included. Don’t trust a $10 access that claims to be factory. This 48-page file is the real thing. For related parts breakdown, see the Massey Ferguson 7254 7256 Parts Catalog. If you need the French-language service guide, grab the TRACTEUR MF 865 – Notice d’entretien. And for the smaller MF 835 diesel, the Massey-Ferguson MF 835 DS Instruction Manual covers that platform. For driveline components, the combine’s Manual Transmission data is in a separate manual, and the Manual Transmission specs for the MF 865 complement this engine manual.

FAQ

Is this manual specific to the 7200 SERIES combine?

Yes. It covers MF 7254 and MF 7256 combine engines only. Not for other models.

What torque values does the manual include?

The manual includes factory torque specs for cylinder head bolts, main bearing caps, connecting rods, and fuel injection pump mounting. These are critical for preventing leaks and component failure. Aftermarket manuals often omit the specific sequence and angle-tighten steps. On page 59, you’ll find the tightening procedure for the Valmet engine. Using the wrong torque can warp the head or snap a stud. This manual gives you the exact ft-lb values and the order to tighten them. The manual also specifies the lubricant to apply to threads and the angle degrees for each step. That’s why I tell guys to never trust a scanned reprint for torque data. Always go OEM.

Access the Factory Manual from AutoRepairManuals and put the guesswork back where it belongs—on the shelf. This is the same document dealer techs use.
