Mack TerraPro, Granite, Titan 2013 Technical Manual – What’s on the Bench

If you’re turning wrenches on any of these Mack vocational trucks – Mack TerraPro, Granite, Titan 2013 Technical Manual is the bindery stack you need. I’ve been inside these cabs and under these frames in San Antonio heat, and the difference between factory documentation and aftermarket garbage is the difference between a job that stays sealed and a callback that eats your Saturday. This is a 115-page OEM Technical Manual, not a reprint, not a third-party summary. It was published in 2013 for the NTEA show, but the content applies to the production trucks you see rolling into your bay.

Let’s get one thing straight: I don’t trust aftermarket manuals for torque specs or wiring diagrams. They copy errors. This manual comes from Mack directly. It covers the vocational lineup – Granite, Titan, TerraPro – and digs into the MP engine family (MP7, MP8) and chassis configurations. If you are a DIY owner-operator or a shop tech, this is the document that keeps you from guessing and breaking bolts.

Chassis Updates from NTEA 2013: Factory Presentation Data

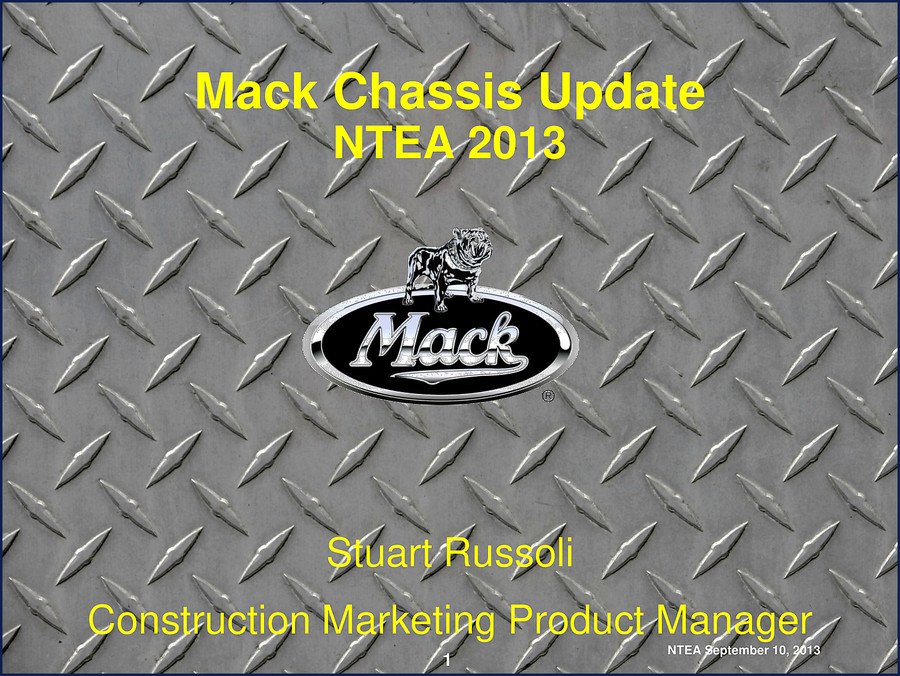

The manual opens with the Mack vocational lineup presentation from NTEA September 10, 2013. That might sound like marketing fluff, but it’s not. It contains the exact specifications Mack used to update the Granite, Titan, and TerraPro chassis. Axle-forward and axle-back configurations, frame strength for harsh job sites, and the MP engine specs – it’s all in the first pages. When you’re diagnosing a frame crack or a driveline vibration, knowing which configuration Mack intended for that VIN saves you chasing parts that don’t fit.

3 Key Vocational Models: Granite, Titan, TerraPro Coverage

Each model gets its own section. The Granite axle-back configuration for construction, the Titan for heavy haul, and the TerraPro cabover and low entry for refuse and concrete pumper. The manual details the MP7 and MP8 engines, including horsepower and low-end torque curves. Need to know the tight wheel cut spec for the TerraPro cabover? It’s in here. The dual control system for the low entry TerraPro? That Control Link II system is explained. I’ve seen guys wire a dual control switch wrong because they didn’t have the factory diagram – this manual prevents that.

MP Engine Family: What the Manual Covers

The MP7 and MP8 are the backbone of these trucks. This manual goes into the fuel system, air handling, and engine mounting. It doesn’t give you a tear-down sequence (that’s a service manual), but it gives you the technical data you need for diagnosis: charge air pressure specs, fuel injection timing, and component locations. For a shop, this is the supplement you pull off the shelf when the code points to the MP8 high-pressure pump. Pair it with a service manual and you’ve got the full picture. For related diagnostics, check the Mack MID 140 Diagnostic Trouble Codes Manual for powertrain codes.

Does This Manual Cover the TerraPro Low Entry Refuse Configurations?

Yes. The low entry version with right-hand stand-up operating position is detailed. The manual explains the in-cab Control Link and back-of-cab Control Link II systems. That includes the wiring for the dual controls – something aftermarket diagrams get wrong frequently. If you’re retrofitting a refuse truck or troubleshooting a non-responsive right-side pedal, you want the Mack diagram. The page count is 115 pages, so it’s dense but not overwhelming. You’ll find the information you need without flipping through a 2000-page tome.

Source Validity: OEM vs Aftermarket Documentation

I’ve been burned by aftermarket manuals that list torque values off by 15 ft-lbs on a head bolt. This is a Mack OEM Technical Manual – the same PDF Mack handed to dealer techs in 2013. It’s not a scanned reprint from a third party. The original file name is Mack_Granite-Titan-TerraPro_2013_Technical_Manual_en-38813019908.pdf. That’s the factory file. If you want to understand why Mack built the Granite with a reinforced cab for quieter ride, or why the Titan got a high-horsepower MP, this is the source.

For a deeper dive into the transmission side, the Manual Transmission section in the overall Mack training library covers the gear ratios. And if you’re working on older models, the 2007 MACK Engine Tune-Up Specifications gives you the earlier MP7 data. For the TerraPro MRU series, the Mack TerraPro MRU Series 2010 Operator’s Handbook is a good companion for cab controls.

Audience Fit: Who Should Use This Manual

Shop owners with 6 bays like mine? Yes. DIY owner-operators doing their own PM and minor repairs? Yes – as long as you’re comfortable reading factory tech data. This is not a step-by-step for oil changes; it’s for chassis updates, engine technical specs, and configuration details. Beginners will need a service manual alongside it. But for anyone who’s ever ordered the wrong axle-back frame rail because they trusted a parts counter, this manual pays for itself. The Manual Transmission info is included in the vocational presentation – helps you identify which transmission mates to which engine package.

Does this manual include torque specifications for the TerraPro MP7 engine?

Yes, but not as a standalone list. Torque specs are embedded in the engine section – you need to read the details under MP7 technical data.

Can I use this manual to rebuild a Granite transmission?

No, this is a technical manual, not a service manual. It covers chassis updates, engine specs, and vocational configurations. For a transmission rebuild you want the authorized workshop manual. This manual gives you the background on which transmission options were available in 2013 – helpful for parts research.

If you want to stop relying on forum posts and shady PDFs, this is the document you take to the bench. 115 pages, OEM, 2013. No guesswork, no aftermarket errors. Access the Factory Manual and put it on your tablet.
