Mack MID 140 Technical Manual – Factory Diagnostics You Can Trust

I’ve lost count of how many hours I’ve burned chasing a ghost code because some third-party manual decided to “simplify” the FMI table. That’s why I keep a copy of the Mack MID 140 Technical Manual within arm’s reach at the shop. This is a factory document – 27 pages of the actual diagnostic tables, sensor circuit descriptions, and failure mode identifiers that Mack’s engineers wrote for their own techs. If you’re working on a Mack MID 140 and you don’t have this, you’re guessing. And guessing costs you time and parts money.

MID 140 PID 77: Rear Axle Temperature Sensor Diagnostics

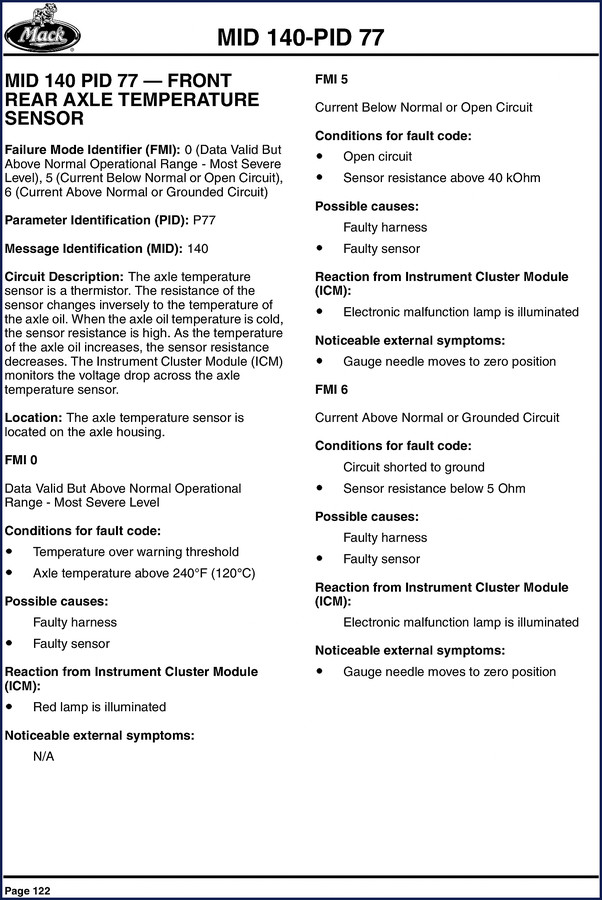

Page 1 walks you through the rear axle temperature sensor – PID 77. The manual gives you the circuit description (thermistor, resistance inversely proportional to oil temp), location (axle housing), and every FMI with its conditions. FMI 0 triggers when axle temp hits 240°F (120°C) – red lamp on the ICM. FMI 5 is an open circuit (resistance above 40 kOhm) – gauge needle drops to zero. FMI 6 is a short to ground (resistance below 5 Ohm) – same gauge symptom but different cause. That kind of detail keeps you from replacing a sensor when it’s just a chafed wire.

FMI 0 – When the Temperature Goes Over the Limit

FMI 0 means “Data Valid But Above Normal Operational Range – Most Severe Level”. The manual doesn’t stop at the code; it lists possible causes (faulty harness, faulty sensor) and the ICM reaction (red lamp). No fluff, no filler – just what you need to decide if you grab a multimeter or a new sensor. For a DIY guy in his home garage, that distinction saves a trip to the parts store.

FMI 5 and FMI 6 – Open Circuit vs. Grounded Circuit

These two FMIs share the same symptom (gauge needle to zero) but have completely different conditions. FMI 5 requires resistance above 40 kOhm; FMI 6 requires resistance below 5 Ohm. The manual gives you the threshold numbers – so you can confirm your diagnosis without swapping parts blind. Professional techs bill by the hour, but even a home mechanic can appreciate knowing exactly what the ECU expects to see.

Why Aftermarket Manuals Don’t Cut It

I’ve seen aftermarket manuals that list “check sensor” for every FMI. That’s useless. The Mack factory technical manual gives you the actual electrical parameters – resistance values, voltage drops, and the ICM response. When you’re working on a truck that hauls a load down I-35, you don’t have time for vague advice. This manual came from Mack’s own service documentation. The difference between OEM and aftermarket is the difference between a fix that sticks and a comeback next week.

77 Pages? No – 27 Pages of Focused Content

The manual is 27 pages, not 77. That’s because it’s specific to the MID 140 – the message identification for chassis systems on Mack trucks. It doesn’t waste paper on generic theory. Every page covers a PID, an FMI table, or a circuit description. If you’re working on a Mack TerraPro, Granite, or Titan with the MID 140, you need this. Check out the related Mack TerraPro, Granite, Titan 2013 Technical Manual – 115 Pages for broader coverage, but for pure diagnostic code work, this 27-pager is the one.

Audience Fit: Who Benefits from This Manual?

If you’ve got a Mack truck with an MID 140 – even if you’re just a fleet owner or a weekend wrench – this manual pays for itself the first time it stops you from replacing a good sensor. The step-by-step troubleshooting approach works for beginners because it lists the FMI, the conditions, and the likely cause in plain English. Pros will appreciate the raw OEM data – especially the 240°F threshold and the 40 kOhm / 5 Ohm resistance windows. No manual transmission content here – that’s covered in Manual Transmission resources. This is strictly about the electrical diagnostics.

Source Validity: OEM vs. Aftermarket

This is a scanned copy of an original Mack publication. Not a rewrite, not a condensed version – the actual factory document used by Mack dealers. The file name is Mack_MID_140_Technical_Manual_en-38813017654.pdf, and it’s listed in our collection as an official OEM shop manual. You can cross-reference the torque specs and wiring diagrams with Mack’s own service bulletins. Aftermarket manuals often drop the FMI thresholds or combine them into vague categories. This one gives you the raw data, including the “Data Valid But Above Normal Operational Range – Most Severe Level” classification. That’s factory language.

Does this manual include wiring diagrams?

Yes, the 27 pages include circuit descriptions and sensor pinouts (like the rear axle temperature sensor on page 1). Wiring diagrams are integrated into the FMI explanations – not standalone schematics, but enough to trace a short or open circuit using the resistance values given. For full wiring books, see the 2007 MACK Engine Tune-Up Specifications or 2004 Mack Engine Tune-Up Specifications Manual – those focus on engine data, not chassis codes.

What about transmission diagnostics?

This manual is MID 140 – chassis systems only. For transmission codes, you’ll need a separate publication. Our site has Manual Transmission resources for older trucks. The MID 140 manual stays on axle temps, brake circuits, and related PIDs.

After 28 years of turning wrenches, I’ve learned that a cheap manual is the most expensive tool in your box. This Mack MID 140 Technical Manual costs less than a single sensor swap, and it gives you the same info the dealer techs use. Access the Factory Manual from AutoRepairManuals and start diagnosing with actual numbers instead of guesses.
