Mack MP10 2009 Service Manual

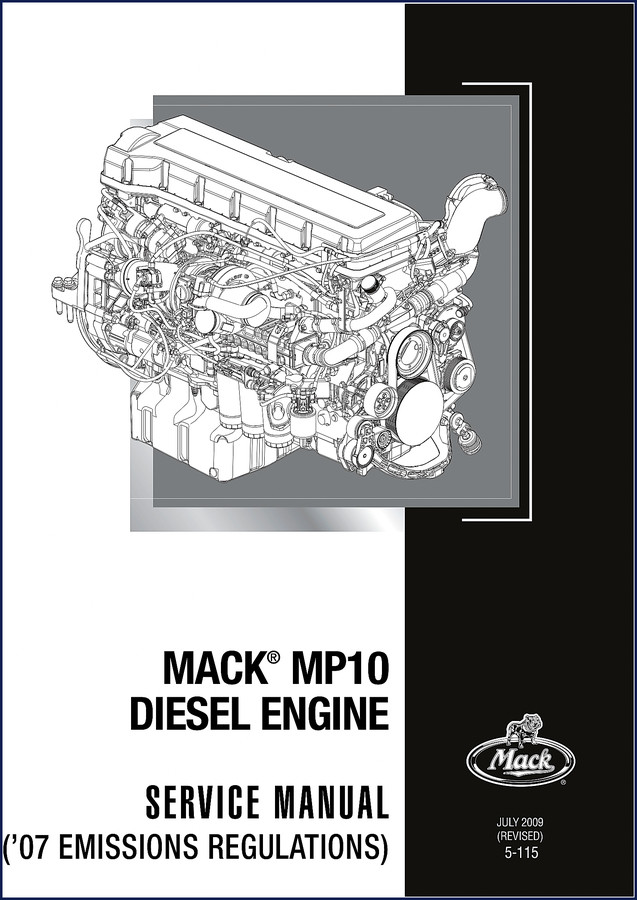

You’re about to tear into a Mack MP10? Good. That US07 emissions engine is a beast – 16 liters of iron that demands respect. I’ve been turning wrenches since before most of you were born, and I’ll tell you straight: the only thing worse than a blown EGR cooler is trusting aftermarket specs. This Service Manual is the original OEM document from Mack Trucks, issued July 2009, covering the MP10 diesel engine for ’07 emissions regulations. All 360 pages are directly from the factory – not a photocopy, not a paraphrase, not some third-party rewrite with torque values pulled out of thin air. If you’ve ever had a head gasket fail because you guessed at the stretch procedure, you know what I mean.

Page 1 gives you the cover and document ID. Turn to page 9 and you’re into “About the Mack MP10 Engine” – that’s where they lay out the service precautions. Don’t skip that. I’ve seen guys go straight to the torque chart and miss the warning about high-pressure fuel injection lines. That kind of shortcut gets you a trip to the ER, not a running truck.

Safety Information: Advisory Labels and Service Procedures

The manual opens with a full safety section starting on page 2. It covers advisory labels and proper service procedures. Mack didn’t put that there to pad the page count. They put it there because this engine runs at 30,000 psi injection pressure and generates enough heat to melt your tools if you screw up the aftertreatment system. Read it. Memorize it. Then proceed.

Does This Manual Cover the Variable Geometry Turbocharger?

Yes – and it gives you the full breakdown. Look at the Table of Contents: “Variable Geometry Turbocharger” is listed under Description and Operation on page 37. That chapter walks through the actuator, the linkage, and the position sensor. If you’re chasing a P00AF code on a chassis, you’ll want the factory procedure, not a generic write-up that assumes all VGT systems work the same. They don’t. The MP10 uses a specific calibration for the US07 emissions cycle.

Conversion Chart and Numerical Code Explanation

Pages 5 and 6 cover the numerical code explanation and a conversion chart. Now, I don’t care if you think metric is easier – the manual gives you both inch-pound and SI values. But if you’re working on a 2009 truck, the fasteners are all in standard. The conversion chart saves you from rounding errors when you need to read a French-made component spec. Keep it bookmarked.

360 Pages of Factory Information

Every one of those 360 pages is organized by system: lubrication, fuel, cooling, air intake, EGR, aftertreatment, engine management. The troubleshooting section starts around page 49 with engine symptom diagnosis – real step-by-step logic trees. Not the kind that says “check fuel pressure” and leaves you hanging. Mack tells you what pressure, at what rpm, with what tool. If you’re diag-ing a no-start, you’ll go through the list in order. No skipping.

One thing I appreciate: the glossary of terms on page 41. It defines abbreviations like VGT, ECM, and MP10-specific acronyms. If you’re a home-garage guy and you don’t know what “PowerLeash” means, that glossary will save you a Google rabbit hole.

Read the Safety Section Before You Start

You think I’m being dramatic? Page 2 has advisory labels that show exactly what each warning decal on the engine means. The service procedures section on page 3 lists required tool usage – they even specify a torque wrench calibration interval. If you’re using a Harbor Freight torque wrench from 2005, don’t blame the manual when your main bearing bolts come loose. That’s on you.

For related documentation, grab the Mack MP7 MP8 MP10 Engine Cooling System Service Manual 2009 if you’re doing a full cooling system overhaul. Need operator-level info? The Mack MP7 MP8 MP10 Engines 2010 Operators Manual covers daily checks and fluid specs. And for older tune-up data, the 2007 MACK Engine Tune-Up Specifications still applies to many of the base engine components.

If you’re not familiar with the fundamentals of a Manual Transmission, this manual won’t teach you – but it will tell you exactly how the engine interfaces with the clutch housing and PTO drives. Another good primer on Manual Transmission operation is available from Wikipedia, but don’t confuse that with the factory service data you get here.

FAQ

Does this manual include wiring diagrams for the engine management system?

Yes.

What kind of troubleshooting information is provided for the EGR system?

The troubleshooting section under engine symptom diagnosis covers common EGR faults like insufficient flow, cooler leakage, and valve sticking. It walks you through checking the differential pressure sensor, verifying actuator movement with a scan tool, and performing the manual override procedure for the EGR valve. Mack also includes the diagnostic codes associated with each symptom and the recommended corrective action based on component location diagrams. You’ll need a multimeter and a compatible diagnostic tool to follow the steps, but the manual tells you exactly what readings to expect.

Bottom line: this is the same book Mack dealerships pull off the shelf. If you’re rebuilding an MP10 in your own shop, you need Access the Factory Manual – not a summary, not a user-friendly rewrite, but the real document that Mack engineers signed off on. No guesswork, just the specs that keep that engine running at 500 hp without scattering parts across the interstate.
