Lexus Lexus 2007 Technical Manual – Techstream ECU Flash Reprogramming

If you are working on a Lexus and need to flash an ECU without bricking it, the Lexus Lexus 2007 Technical Manual is the only document you should trust. I’ve seen too many guys burn up ECUs because they grabbed some aftermarket PDF that left out the battery voltage check or the calibration ID verification. This 21-page factory bulletin is not a general repair manual – it’s a specific procedure for reprogramming ECUs on 2001-2008 Lexus vehicles. And it only takes one bad flash to cost you a $1,200 ECU and a pissed-off customer.

The Lexus Lexus 2007 Technical Manual: What You Get

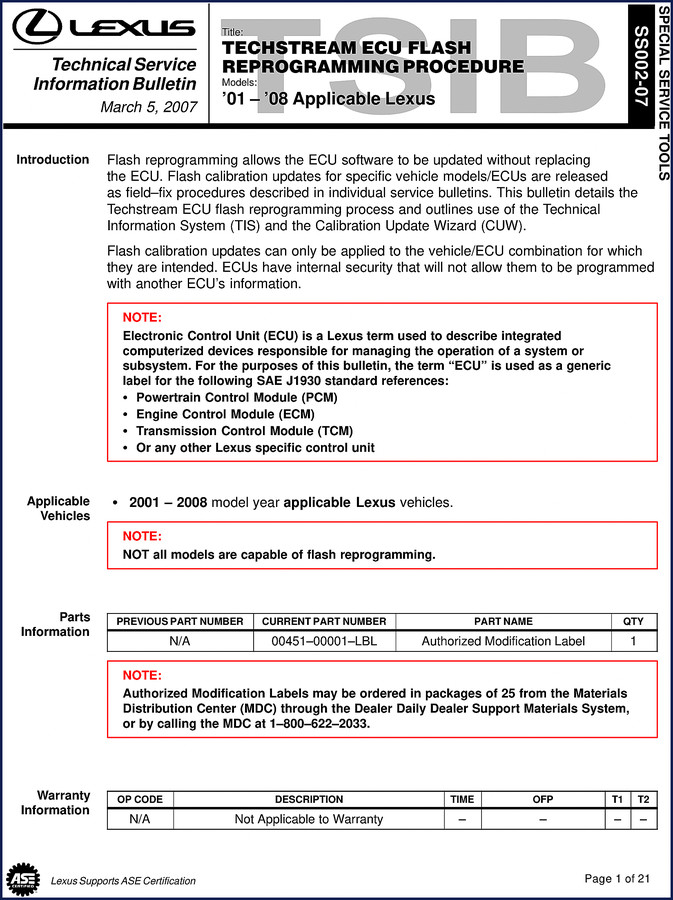

On page 1, the manual states that flash reprogramming allows ECU software updates without replacing the ECU. The ECU has internal security that will not allow programming with another ECU’s information. The manual walks you through verifying vehicle applicability using the Techstream ECU Reprogram Function or Health Check Function. It also lists the required special service tools (SSTs) on page 2 – the Digital Battery System Analyzer (OTC 00002-V8150-KIT) and the GR8 Battery Diagnostic Station (OTC 00002-MCGR8) are essential. Without a stable battery voltage, you can abort the flash.

Required Equipment and Special Service Tools

The manual gives you the exact supplier part numbers for every tool. TIS Techstream software version 2.00.008 or later is mandatory – ADE part number TSPKG1. Need more Techstream units? Call 1-800-368-6787. The battery tools are listed with SPX/OTC numbers and even the drawer location in the SST storage system (drawer 24). You also get the Authorized Modification Label part number (00451-00001-LBL) and instructions to order it from the MDC at 1-800-622-2033. This is the kind of detail that saves you from making a second call to the parts counter.

The 4-Step Reprogramming Process in Detail

Step 1: Verify the vehicle’s applicability and locate the desired calibration file. Techstream automatically searches TIS using the current Calibration ID from the vehicle. Step 2: [DATA NEEDED] The manual continues with the flash access and verification steps. Step 3: Perform the flash and confirm success. Step 4: Install the Authorized Modification Label and clear DTCs. Each step is laid out with specific prompts and expected screen shots. At 21 pages, there’s no room for filler – every line is a procedure you need to follow.

Why Does OEM Documentation Matter for ECU Work?

Aftermarket manuals for reprogramming are a gamble. They often generalize the process, leaving out the specific part numbers for SSTs or the exact software version required. Lexus ECUs have internal security that will not allow programming with another ECU’s information. If you skip the calibration ID verification, you can lock up the ECU. The factory manual, published by Lexus, ensures you have the correct steps. For a broader understanding of automotive diagnostic protocols, see the Automotive Industry Overview. And if you’re working on vehicles with manual transmissions, the Manual Transmission page offers relevant context. But for Lexus ECU flash, this 2007 technical manual is the source.

Authorized Modification Label and Warranty Info

Part number 00451-00001-LBL for the Authorized Modification Label, sold in packages of 25. Warranty code is N/A – this procedure is not warrantable. The manual also notes that Lexus supports ASE Certification, which tells you it’s written by technicians for technicians. Paste the label after every flash to document the calibration update. Future techs will thank you.

FAQ – Common Questions About This Manual

Does this manual cover hybrid Lexus models?

The manual states applicable vehicles are 2001-2008 model year Lexus vehicles. However, not all models are capable of flash reprogramming. You must verify using the Techstream applicability check – the manual does not specifically list hybrid models, so test on a known compatible vehicle first.

What software version of Techstream is required?

Version 2.00.008 or later.

Can I use this manual for other brands like Toyota?

This manual is specifically for Lexus vehicles. While Toyota shares some ECUs, the procedure and calibration files are exclusive. Using it on a Toyota could damage the ECU. Stick to the Lexus applications listed.

How do I obtain the Authorized Modification Labels?

The manual clearly states on page 1 that Authorized Modification Labels may be ordered in packages of 25 from the Materials Distribution Center (MDC) through the Dealer Daily Dealer Support Materials System, or by calling the MDC at 1-800-622-2033. You cannot purchase these individually; the minimum order is a package of 25. The part number is 00451-00001-LBL. Make sure you have the label installed after every flash reprogramming to document the update as per Lexus requirements. Failure to do so may cause confusion for future technicians and could void certain coverage. This level of detail is typical of Lexus factory documentation.

If you need additional factory manuals for other Lexus systems, check out the Lexus LS430 Technical Manual – Wireless Door Lock Registration for keyless entry programming, or the Lexus Camry, Avalon, Supra TRAC Technical Manual – 35 Page Factory Training for traction control systems. For a comprehensive engine and transmission guide, the Lexus RX300 1999 Technical Manual – OEM Factory Specs, 1910 Pages covers everything from drivetrain to body electrical.

Don’t waste time with guesswork. Get the exact procedure from the source – access the factory manual and follow the steps to the letter.
